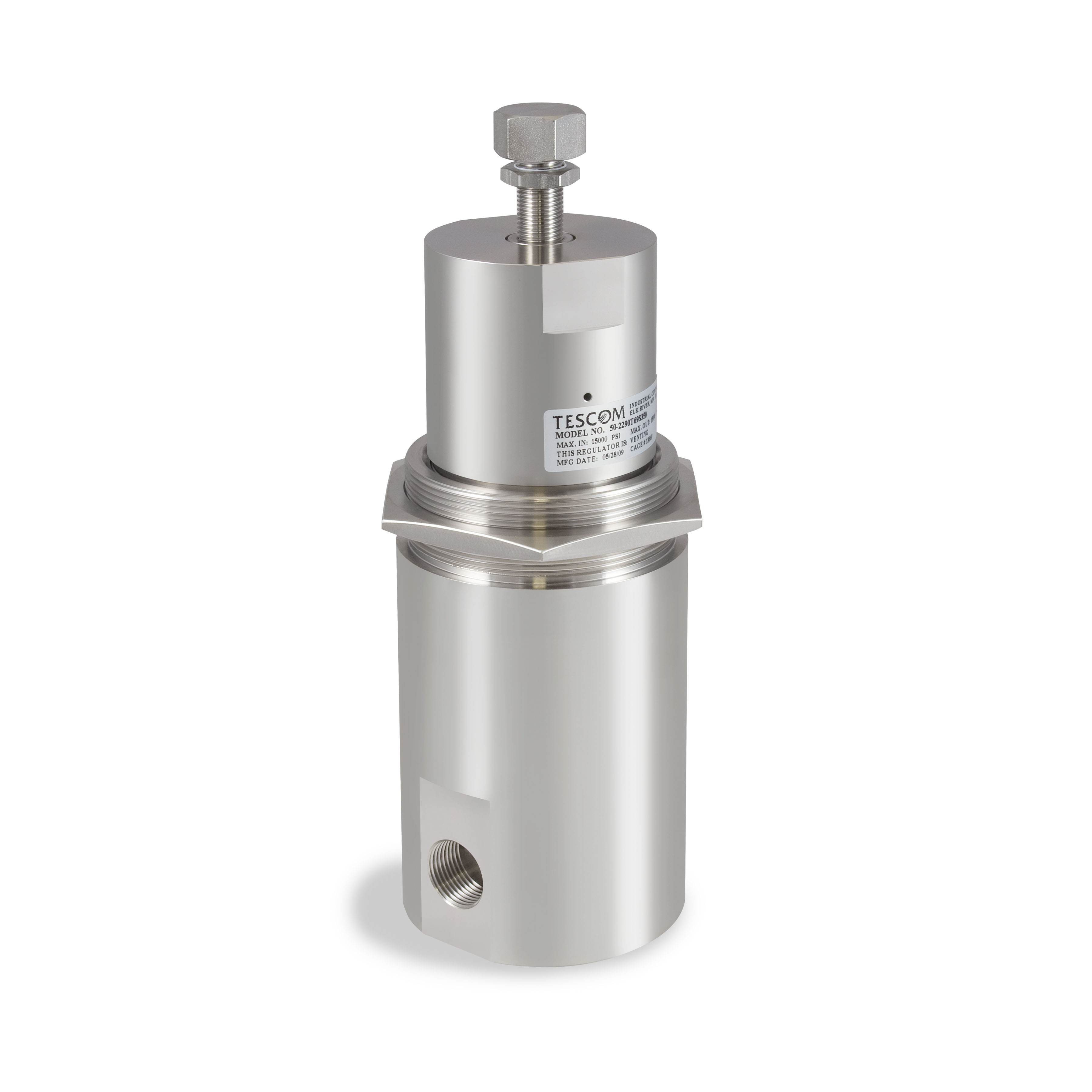

TESCOM™ 50-2200 Hydraulic Pressure Regulator

Contact Sales
50-2200 Series pressure reducing regulator is specifically designed for extended life operation in high pressure hydraulic applications. Suitable for wellhead control panels, subsea valve actuation, chemical injection and Hydraulic Power Units (HPU).

Specifications

Pressure RatingMaximum Inlet Pressure : 15,000, 20,000 psig / 1034, 1379 bar<br>Maximum Outlet Pressure: 300-15,000 psig / 20.7-1034 bar, 300-20,000 psig / 20.7-1379 bar
Body Material316 Stainless Steel, Nitronic 60
Seat, Main Valve, Vent Materials17-4 Stainless Steel
O-RingsBuna-N, Viton®
Back-up RingsCTFE
Remaining Parts300 Series Stainless Steel, 17-4 Stainless Steel and Nitronic 60
Operating Temperature-15°F to 165°F / -26°C to 74°C
Port Size & Type1/4 NPTF
Flow CapacityCv = 0.06, 0.12
Load TypeSpring
Weight (approximate)20 lbs / 9.1 kg
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
