Specifications
| Maximum Inlet Pressure | Spring and Dome Loaded: 5000 psig / 345 bar<br> Air Actuated: 10,000 psig / 690 bar |
| Control Pressure Ranges | 1000, 1500, 2500, 3500, 5000 and 10,000 psig / 69.0, 103, 172, 241, 345 and 690 bar |
| Material | Body: 303 or 316 Stainless Steel <br>Seat, Poppet & Sensor: 17-4 PH Stainless Steel<br>O-Rings: Buna-N, Viton®, Ethylene Propylene or Polyurethane<br>Back-up Rings: PTFE |
| Bonnet (Spring load only), Remaining Parts | 303 Stainless Steel |
| Operating Temperature (media) | -40°F to 165°F / -40°C to 74°C (Operating temperature range dependent on O-Ring material.) |
| Port Size & Type | 1/2, 3/4<br>SAE, NPTF<br>1<br>Flange |
| Flow Capacity | Cv = 1.6 |

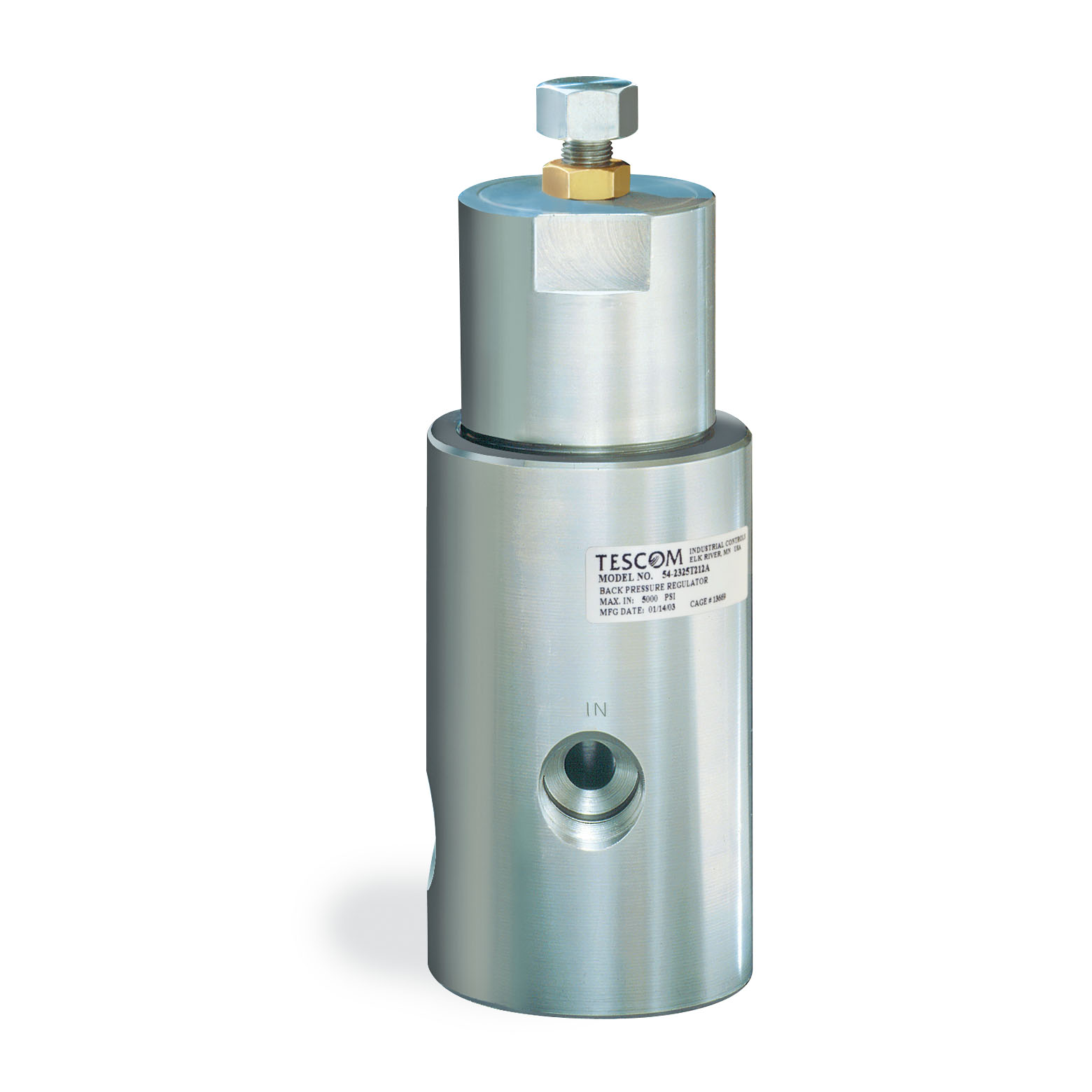

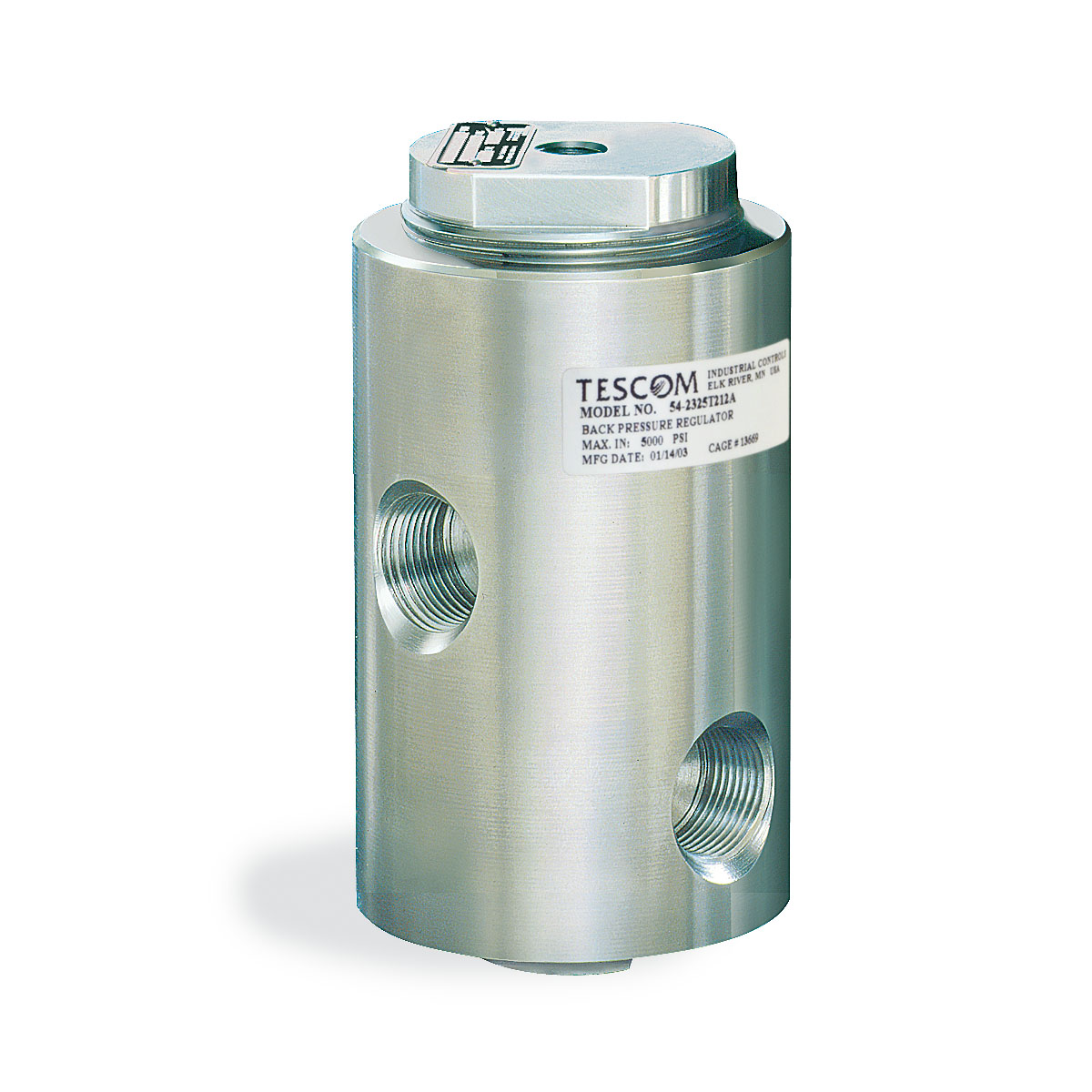

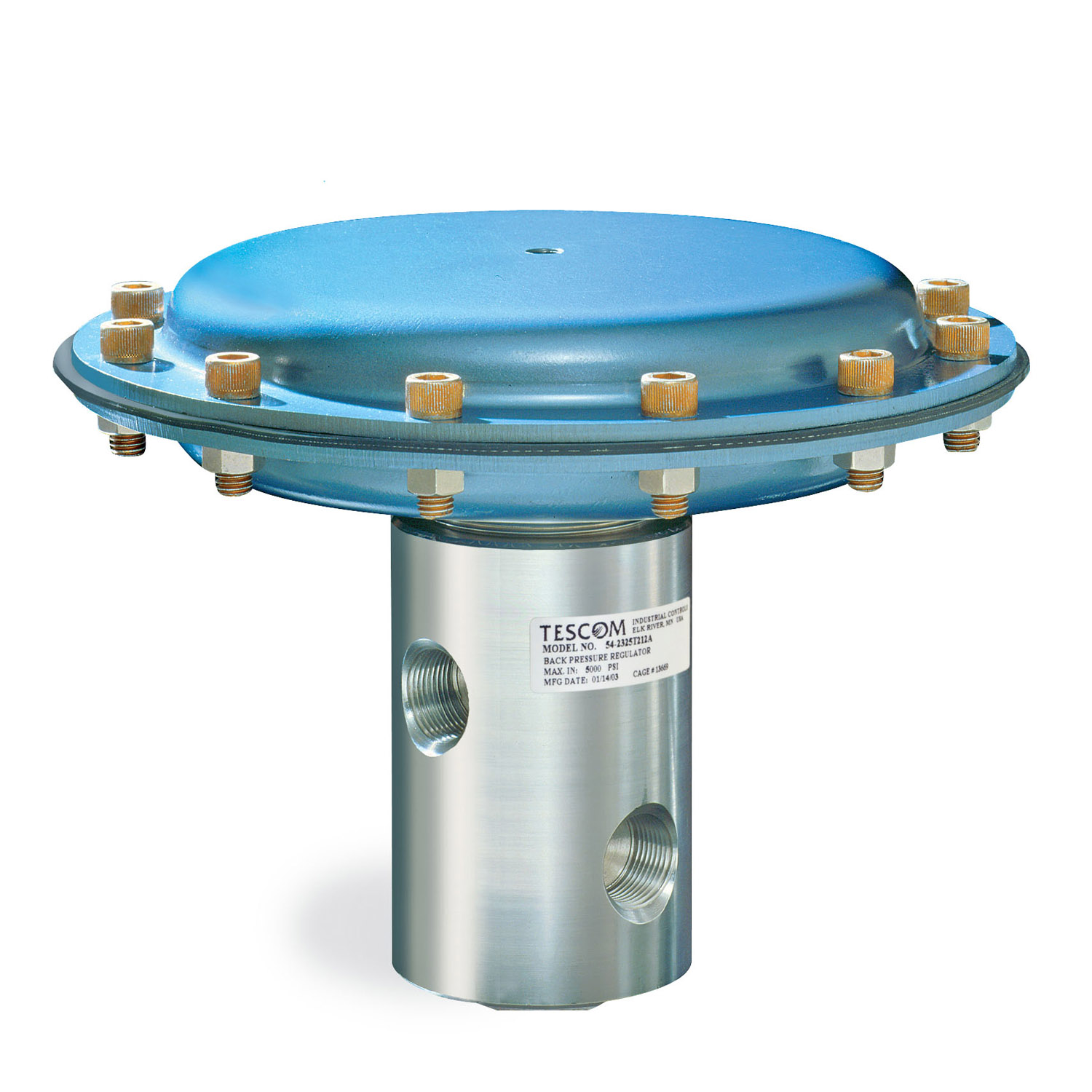

| Load Type | Spring, Dome, Air |
| Weight | Spring and Dome Loaded: 15 lbs / 6.8 kg<br>Air Actuated: 30 lbs / 13.6 kg |
| Additional Information | For custom modifications or a complete system solution, please contact your local sales office. |
