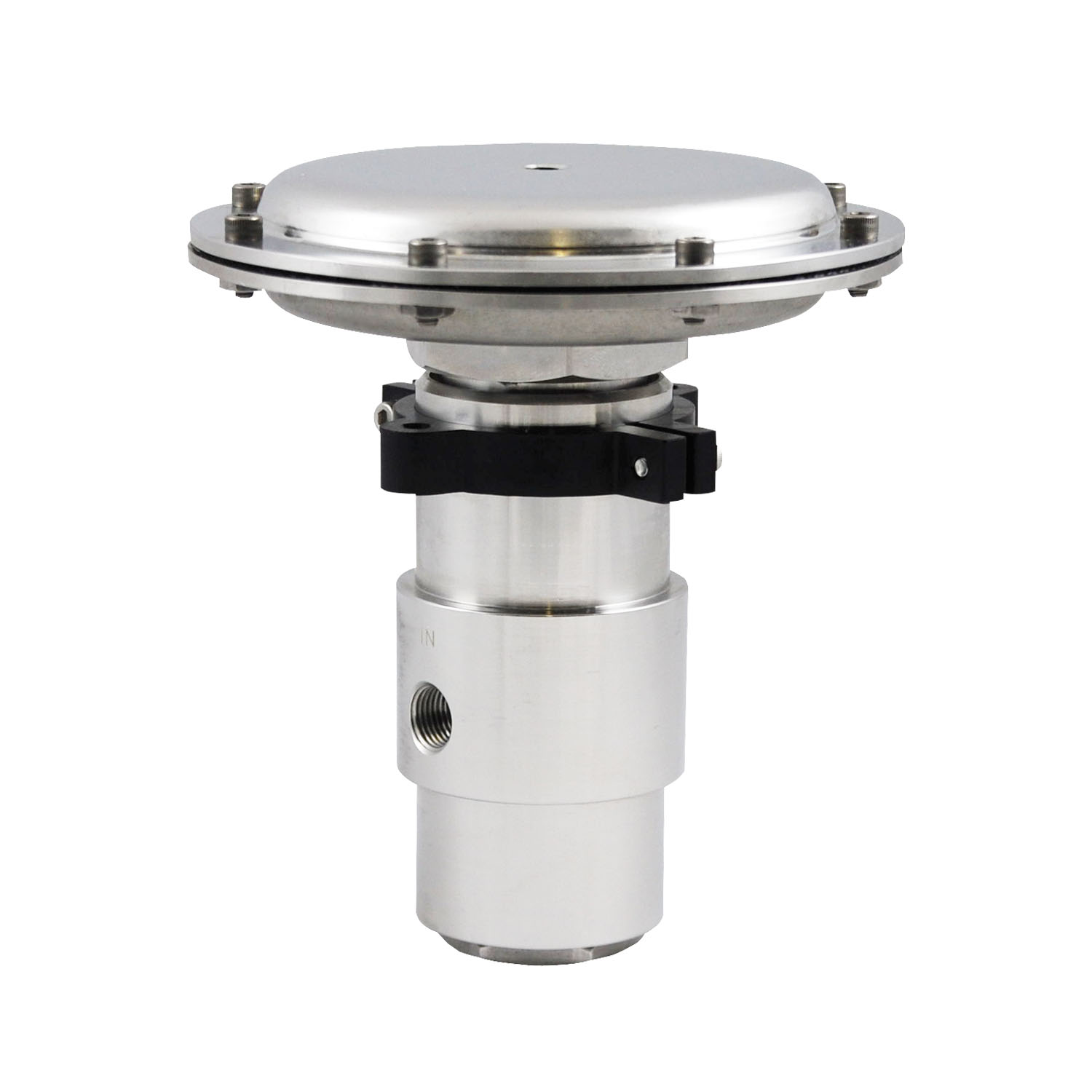

TESCOM™ 54-3500 Two Stage Backpressure Regulator

54-3500 two-stage hydraulic backpressure regulator reduces the controlled inlet pressure in 2 steps. The integrated second stage is self loading and adjusts itself to 50% of the inlet pressure, regardless if the unit is spring, air or dome loaded. This reduction of differential pressure per stage significantly reduces the destructive force of erosion and cavitation. A wide range of soft goods and valve trim materials, including ceramic option, allow for media specific regulator selection. Ideal for use in high pressure hydraulic test benches and injection valve manufacturing and testing.

Specifications

Maximum Controllable Inlet Pressure10,000 psig / 690 bar
MaterialBody: 316L Stainless Steel<br>Bonnet: 300 Series Stainless Steel<br>Seat: CTFE, Vespel® SP-1, PEEK, 17-4 hardened <br>Stainless Steel<br>Remaining Parts: 300 Series Stainless Steel<br>
Operating Temperature-15°F to 140°F / -26°C to 60°C
Port Size & Type1/4, 3/8<br>NPTF & Medium Pressure
Flow CapacityCv = 0.08
Load TypeAir, Dome, Spring
Weight6 lbs / 2.7 kg
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
