Specifications
| Maximum Rated Operating Pressure | 98-1010 Mini In-Line Series: 6000 psig / 414 bar <br>98-1110 Tee-Type Series: 6000-10,000 psig / 414-690 bar<br>98-1210 In-Line Series: 3000-10,000 psig / 207-690 bar<br> |

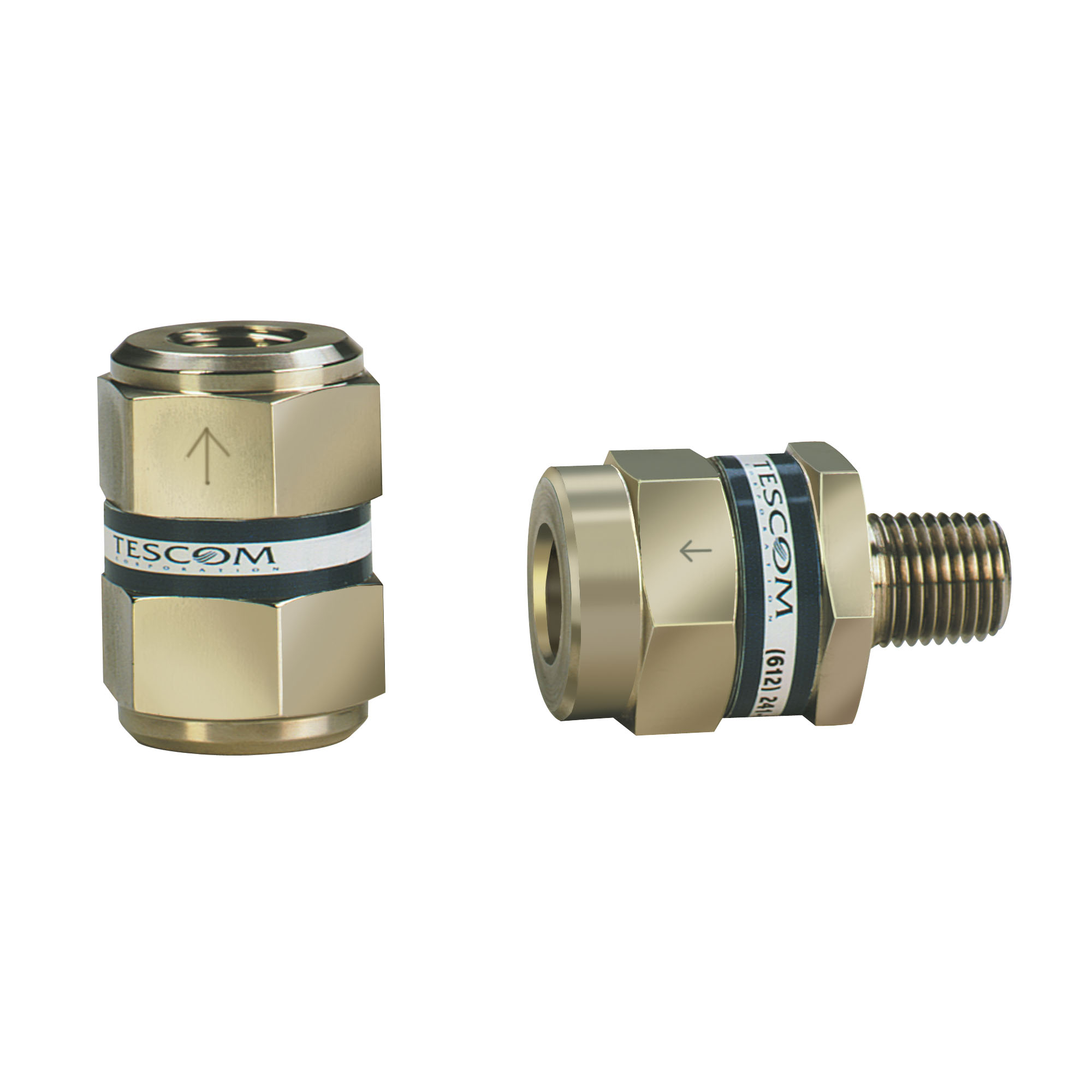

| Materials: 98-1010 Mini In-Line Series | Body: 304 Stainless Steel<br>Internal Filter - 10 micron: Pleated 304 Stainless Steel<br> |

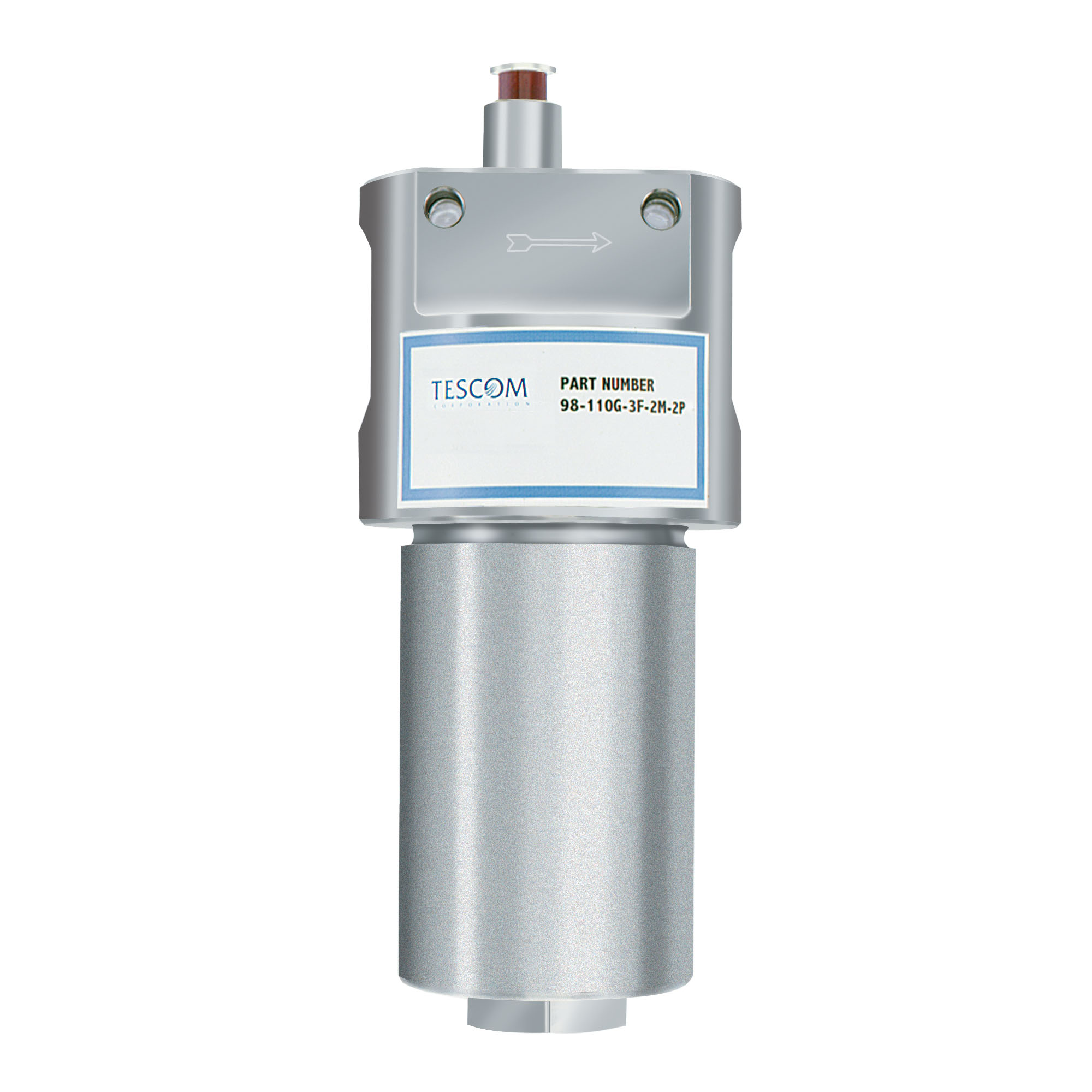

| Materials: 98-1110 Tee-Type Series | Body: 303 Stainless Steel<br>Internal Filter - 10 micron: Pleated 304 Stainless Steel<br>O-rings: Buna, Teflon® or Viton®<br> |

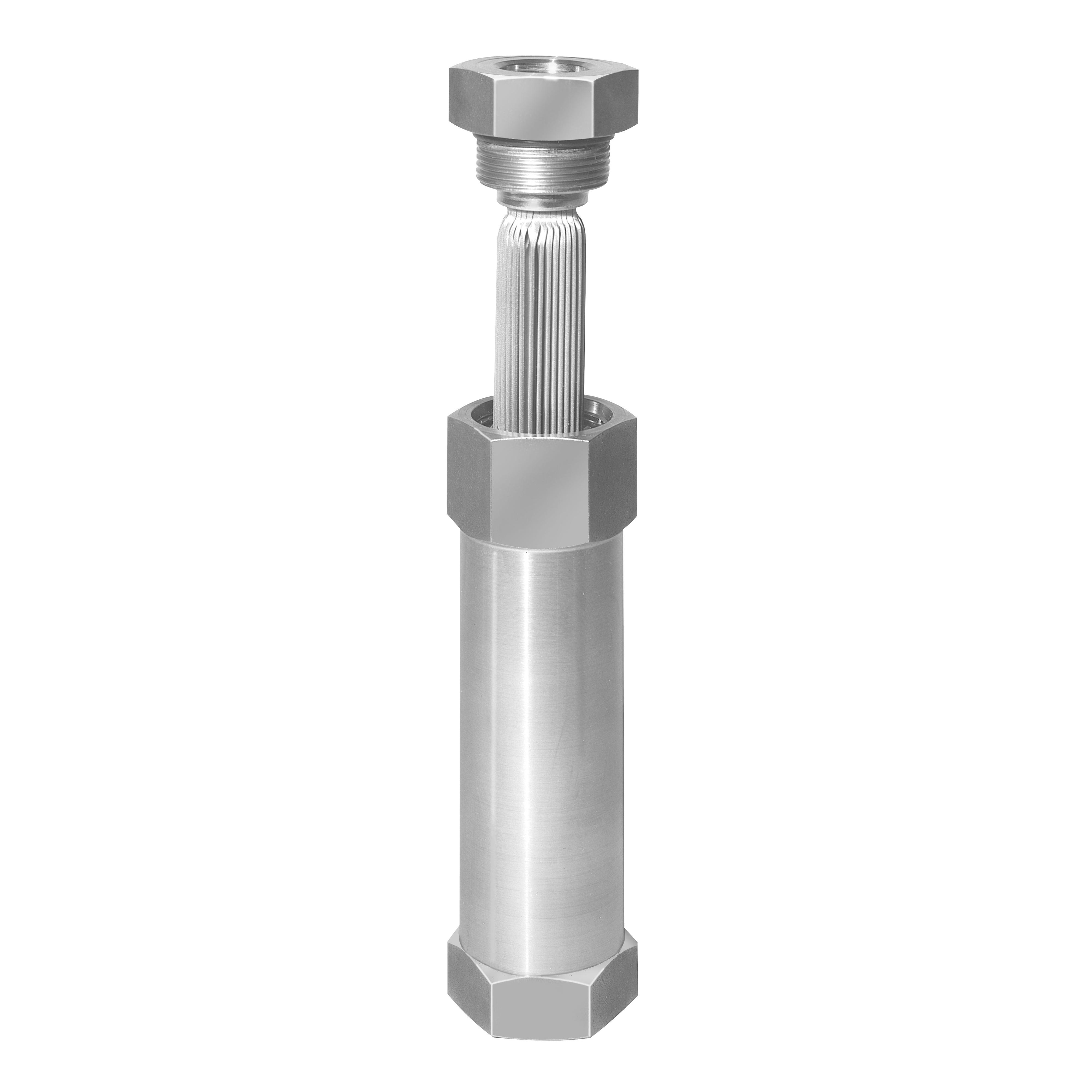

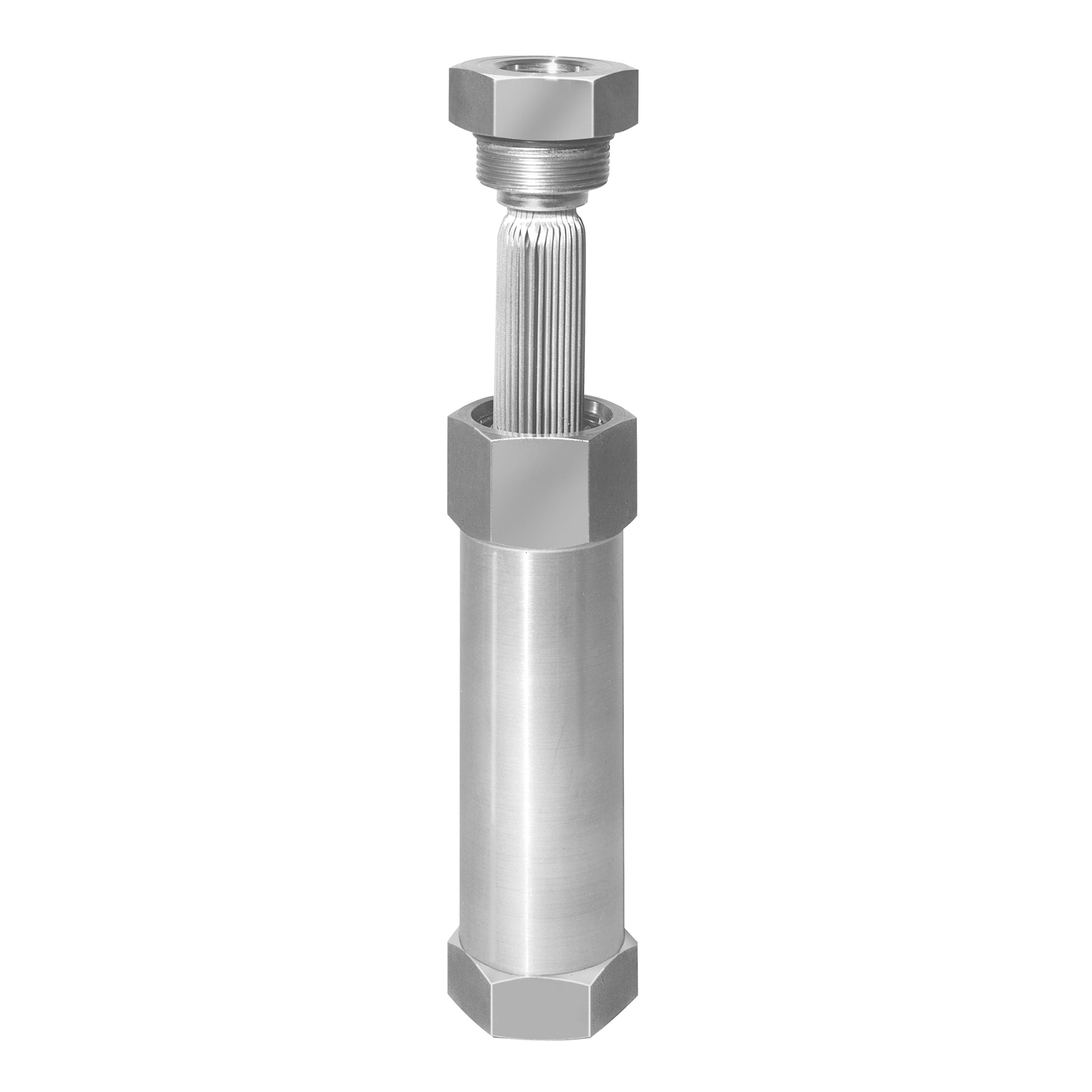

| Materials: 98-1210 In-Line Series | Body: 3000 psig / 207 bar - 303 Stainless Steel<br>6000, 10000 psig / 414, 690 bar - 17-4 Stainless Steel<br>Filter - 10 micron: 304 Stainless Steel<br>O-rings: Buna, Teflon® or Viton®<br> |
| Operating Temperature: 98-1010 Mini In-Line Series | -320°F to 550°F / -196°C to 288°C |
| Operating Temperature: 98-1110 Tee-Type Series | Buna O-ring: -20 to 165°F / -29 to 74°C <br>Teflon® O-ring: -40 to 165°F / -40 to 74°C<br>Viton® O-ring: 0 to 220°F / -18 to 104°C |
| Operating Temperature: 98-1210 Tee-Type Series | Buna O-ring: -20 to 165°F / -29 to 74°C<br>Teflon® O-ring: -40 to 165°F / -40 to 74°C |
| Operating Temperature: 98-1210 Tee-Type Series | Viton® O-ring: 0 to 220°F / -18 to 104°C<br>E.P. O-ring: -40 to 225°F / -40 to 107°C |
| Port Size & Type: 98-1010 | 1/4, 3/8, 1/2 <br>Female NPTF, Female/Male NPTF (1/4 and 1/2 only), MS33649 Female/MS33656 Male |
| Port Size & Type: 98-1110 | 1/4, 3/8, 1/2 <br>Female NPTF, MS33649, SAE |
| Port Size & Type: 98-1210 | 1/4, 3/8, 1/2 (3000 and 6000 psig / 207 and 414 bar only)<br>Female NPTF / Male MS33649 |
| Additional Information | For custom modifications or a complete system solution, please contact your local sales office. |
