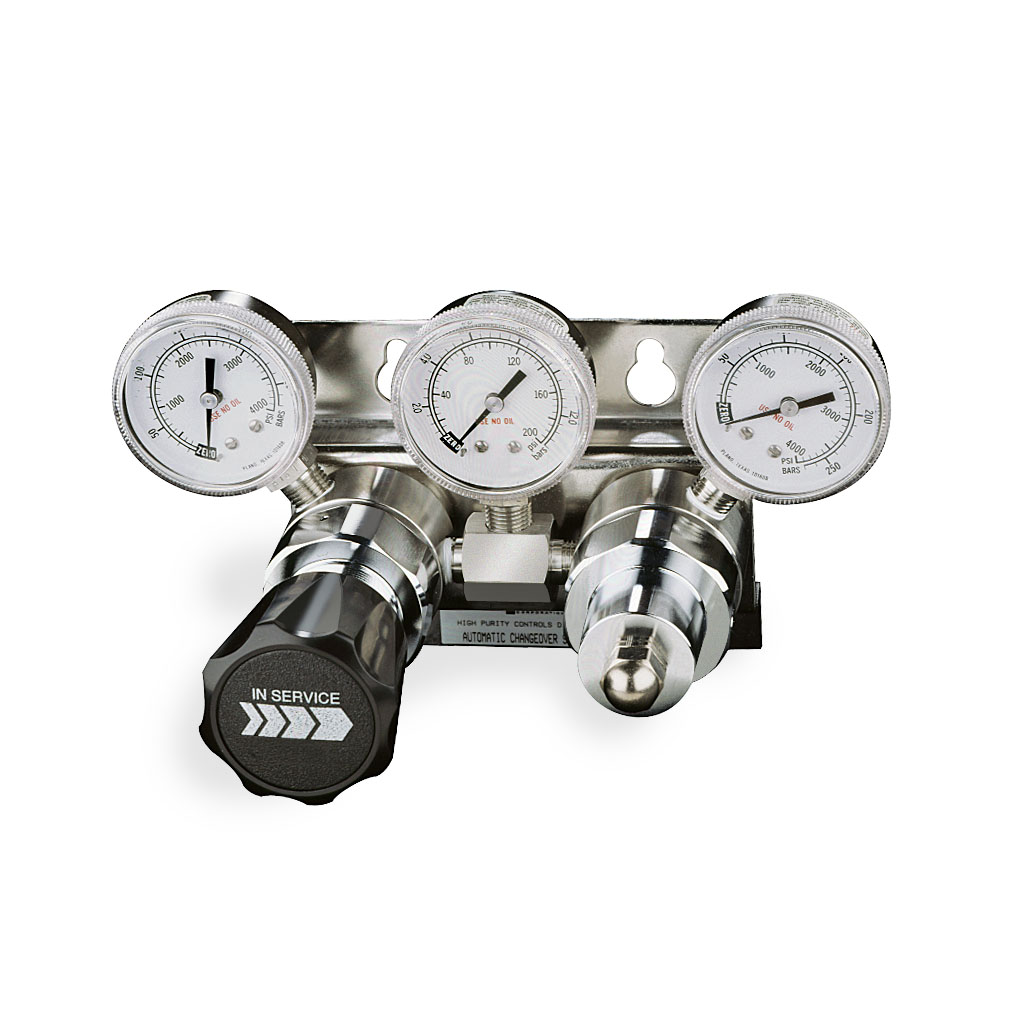

TESCOM™ ACS012 Changeover Pressure Regulator

ACS012 Series is a compact, lightweight high purity changeover system for specialty, corrosive, and pyrophoric gases. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Provides continuous low flow of gas from two pressure sources. Ideal for use in analyzer carrier gas, CO2 for tissue and cell culture incubators and laser resonator gas applications.

Specifications

Maximum Inlet Pressure400 or 3500 psig / 27.6 or 241 bar
Maximum Delivery Pressure85-115 psig / 5.9-7.9 bar<br>135-165 psig / 9.3-11.4 bar<br>185-215 psig / 12.8-16.2 bar<br>235-265 psig / 16.2-18.3 bar<br>
Body Material316 Stainless Steel, Brass or Nickel-plated Brass
Bonnet Material300 Series Stainless Steel or Brass
Valve SeatPTFE
Diaphragm & Spring316 Stainless Steel
Friction SleeveInner: PTFE<br>Outer: 316 Stainless Steel<br>
Remaining Parts316 Stainless Steel (& Brass for Brass bodies)
Operating Temperature-40°F to 165°F / -40°C to 74°C
Port Size & Type1/4 NPTF
Flow CapacityCv = 0.06
Weight5 lbs / 2.2 kg
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
