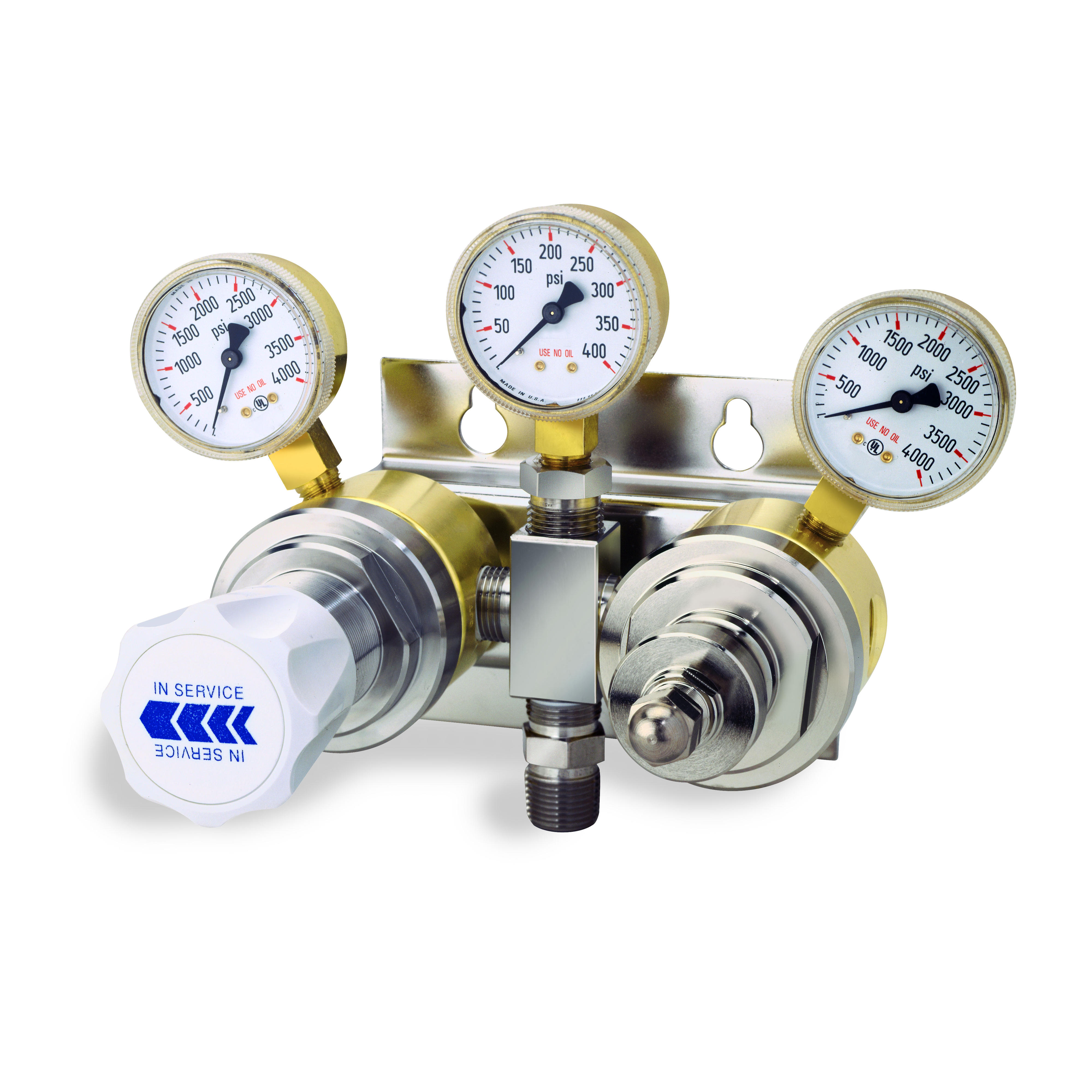

TESCOM™ ACS3200 Series Changeover Pressure Regulator

ACS3200 Series is a compact, lightweight high purity, high flow changeover system for specialty, corrosive, and pyrophoric gases. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Provides continuous flow of gas from two pressure sources. Ideal for use in CO2 for tissue and cell culture incubators supply, and shielding and laser assist gases in metal fabrication.

Specifications

Pressure RatingMaximum Inlet Pressure: 3000 psig / 207 bar<br>Outlet Pressure: 160-200 psig / 11.0-13.8 bar<br>
MaterialBody, Diaphragm, & Spring: 316 Stainless Steel or Brass <br>Bonnet: Nickel-plated Brass<br>Valve Seat: PCTFE<br>Valve O-Ring: Viton®<br>Remaining Parts: 316 Stainless Steel<br>
Operating Temperature-40°F to 140°F / -40°C to 60°C
Port Size & Type1/4 NPTF
Flow CapacityCv = 1.2
Weight10 lbs / 4.5 kg
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
