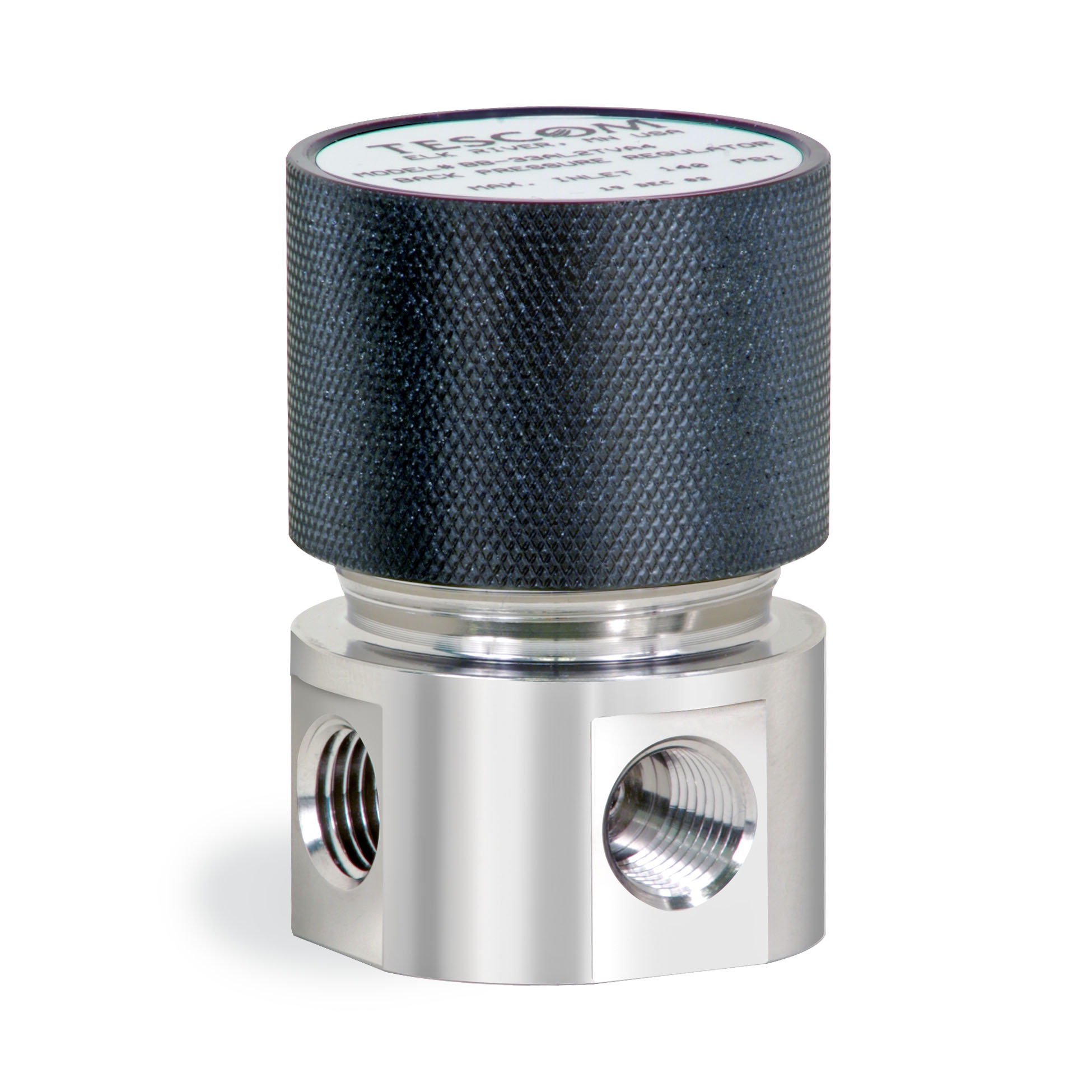

TESCOM™ BB3 Series Backpressure Hydraulic Regulator

BB-3 is a high pressure, low flow, miniature backpressure regulator. Six control pressure ranges are available up to 1200 psig / 83 bar outlet. This regulator can be used for hydraulic or pneumatic service and is small and compact, weighing approximately 4 oz / 0.11 kg in the standard Aluminum construction (316 Stainless Steel also available). Ideal for use in portable equipment or OEM equipment.

Specifications

Inlet Pressure RangesSee Part Number Selector
MaterialBody: Nickel-plated Aluminum or 316 Stainless Steel<br>Seat: Tefzel®, CTFE, PTFE or Vespel®<br>O-Rings: Ethylene Propylene, Buna-N, Viton® or Kalrez®<br>
Remaining Parts300 Series Stainless Steel or Aluminum
Operating Temperature-15°F to 140°F / -26°C to 60°C
Flow CapacityCv = 0.2
Load TypeAdjustable, Preset, Dome
WeightAluminum: 0.5 lb / 0.2 kg <br>Stainless Steel: 1 lb / 0.5 kg<br>
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
