Specifications
| Pressure Rating | Maximum Inlet Pressure: 1000 psig / 69.0 bar <br>Maximum Outlet Pressure<br>Air Load: 0-600 psig / 0-41.4 bar<br>Dome Load: 0-700 psig / 0-48.3 bar |
| Body, Bonnet, Back-cap Ring | Brass, 316 Stainless Steel |
| Diaphragm & O-Rings | Buna-N, Ethylene Propylene, Viton® |
| Seat, Main Valve | CTFE, Teflon®, Vespel® |
| 40 Micron Filter Material | Sintered Brass, 316 Stainless Steel |
| Remaining Parts | 300 Series Stainless Steel, Brass |
| Operating Temperature | -15°F to 165°F / -2°C to 74°C |
| Port Size & Type | 1/4, 3/8, 1/2 SAE<br>1/4, 3/8, 1/2 NPTF |
| Flow Capacity | Cv = 0.35 |

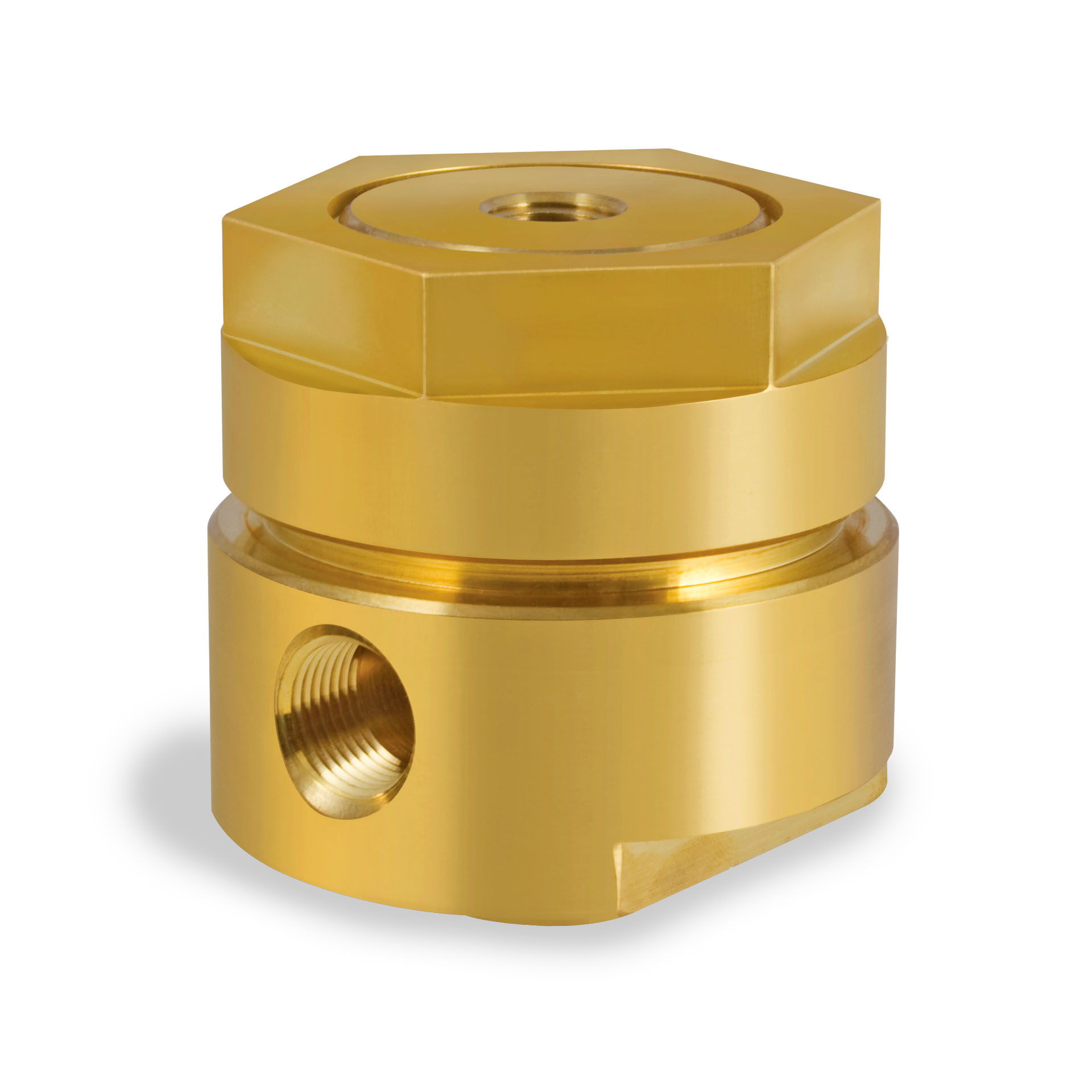

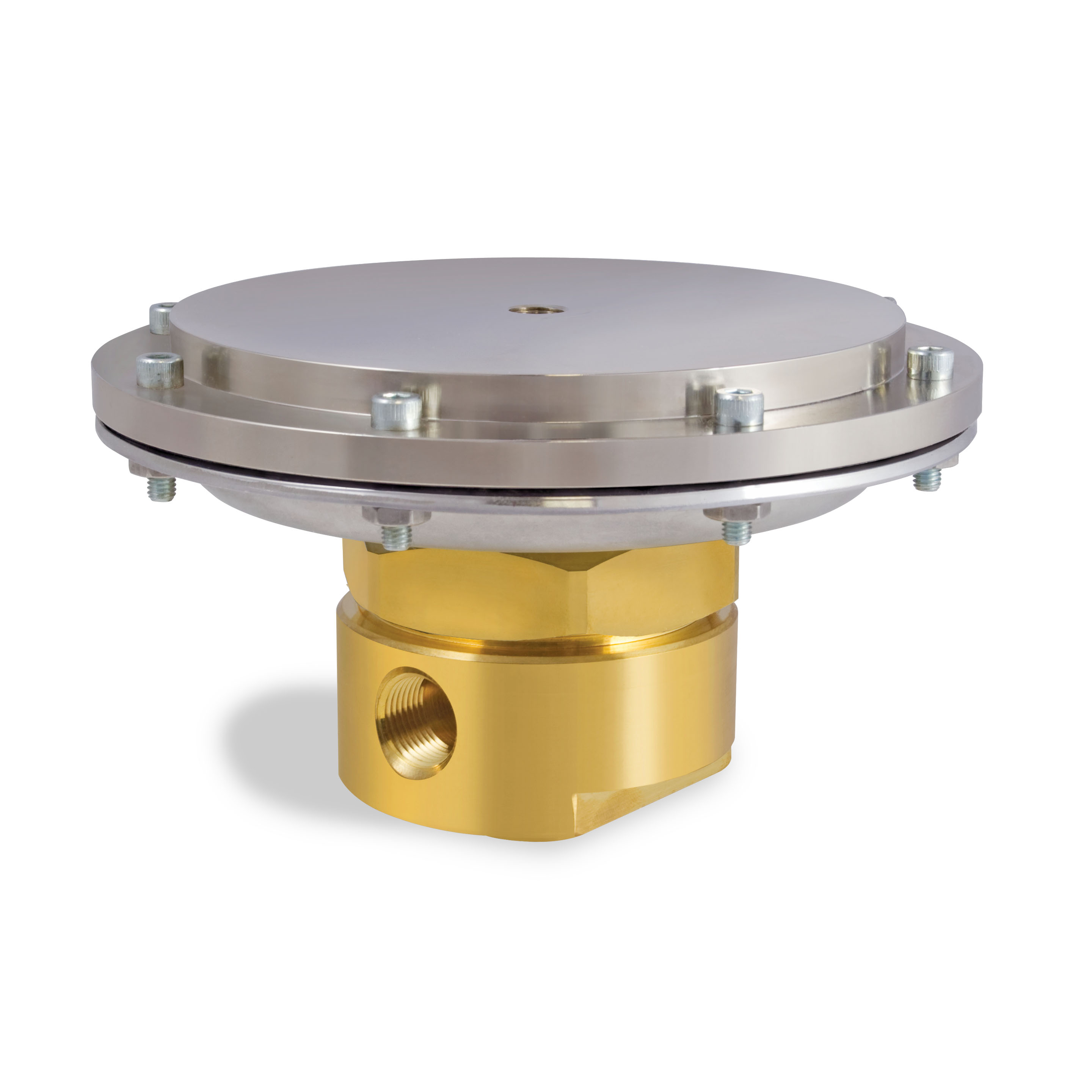

| Load Type | Dome, Air |
| Weight | Dome Load: 3.5 lbs / 1.6 kg <br>Air Load: 5.5 lbs / 2.5 kg |
| Additional Information | For custom modifications or a complete system solution, please contact your local sales office. |
