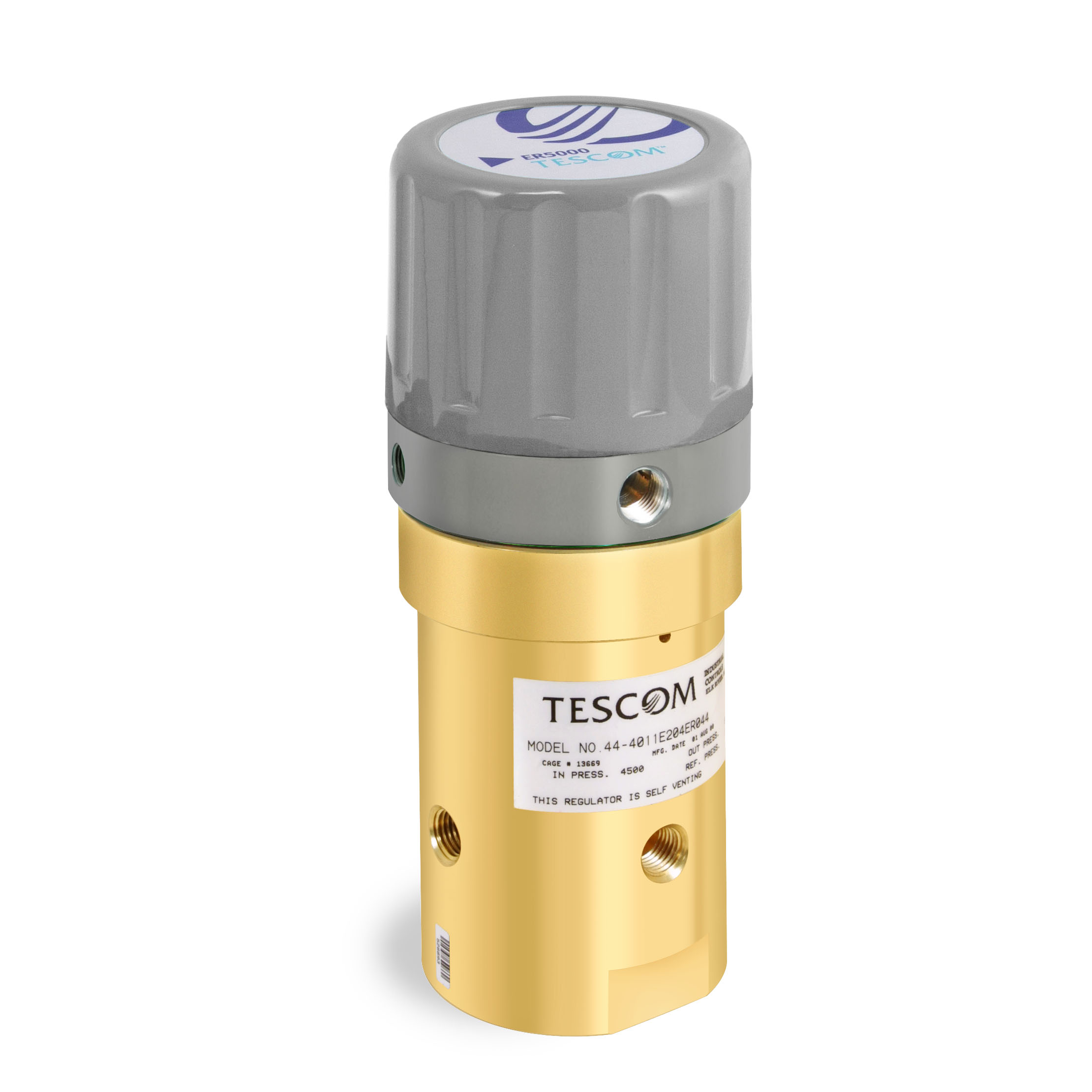

• PROD_AS_TESC_ER5100_44-4000--96306

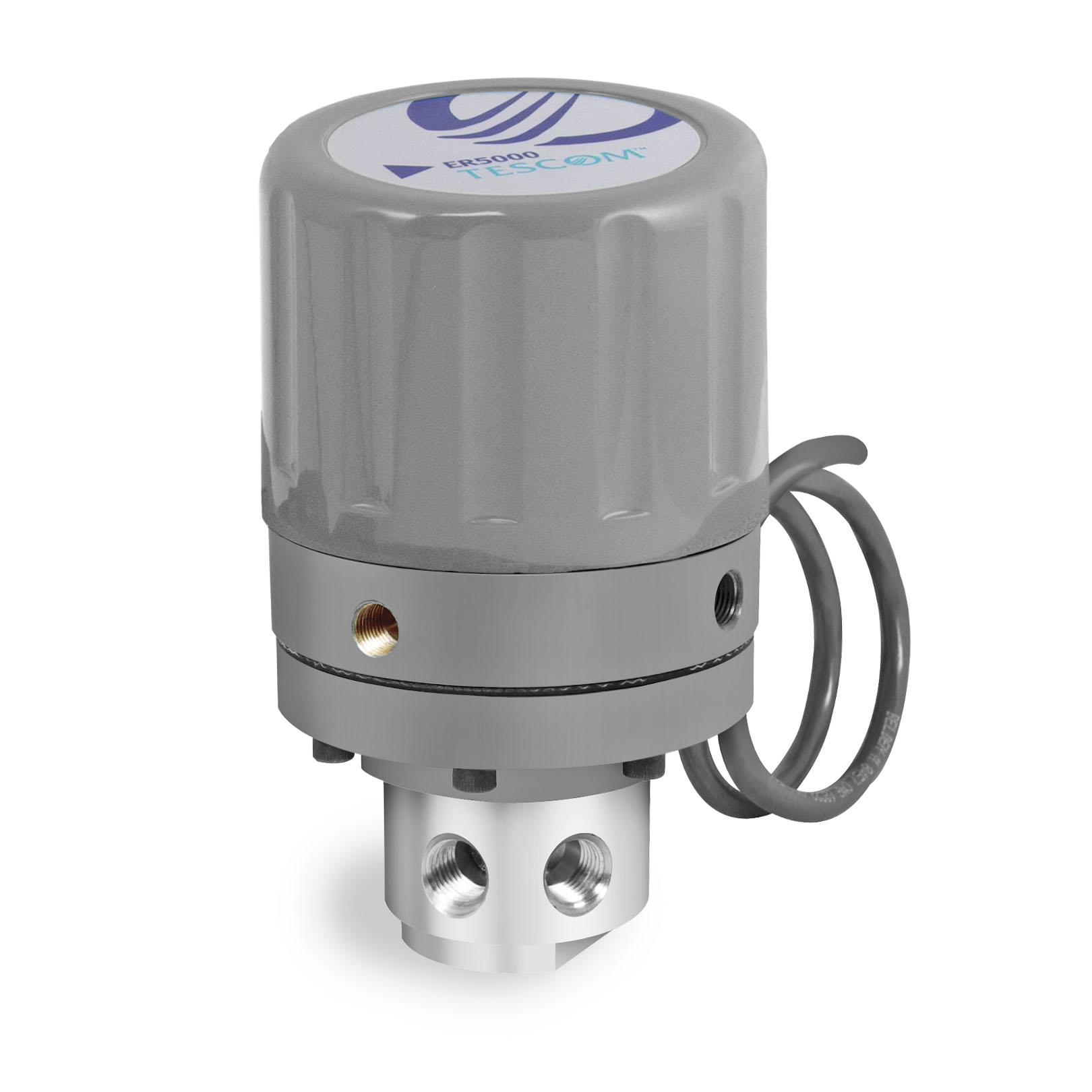

  • PROD_AS_TESC_ER5110--96300
Main Image
Main Image

TESCOM™ ER5100 Series Electropneumatic Actuator Regulator

ER5100 Series consists of the ER5000 Series controller and a 44-4000 Series pressure reducing regulator integrated together. Inlet pressures are up to 4500 psig / 310 bar with two different outlet ranges of 400 and 900 psig / 27.6 and 62.1 bar. The ER5100 Series may be ordered with a Cv = 0.7 or a Cv = 2.0. This series offers fast accurate control in applications requiring continuous flow. Also available with the 44-5200 Series regulator (ER5110). Ideal for gas assist laser cutting and OEM equipment.

Specifications

Pressure Rating (ER5100 System)&nbsp;&nbsp;Maximum Inlet: 4,500 psig / 310 bar<br>&nbsp;&nbsp;Maximum Outlet: 400, 900 psig / 27.6, 62.1 bar
Pressure Rating (ER5110 System)&nbsp;&nbsp;Maximum Inlet: 3,500 psig / 241 bar<br>&nbsp;&nbsp;Maximum Outlet: 500 psig / 34.5 bar
Flow CapacityER5100 System: Cv = 0.7, 2.0 <br>ER5110 System: Cv = 0.06, 0.15
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
