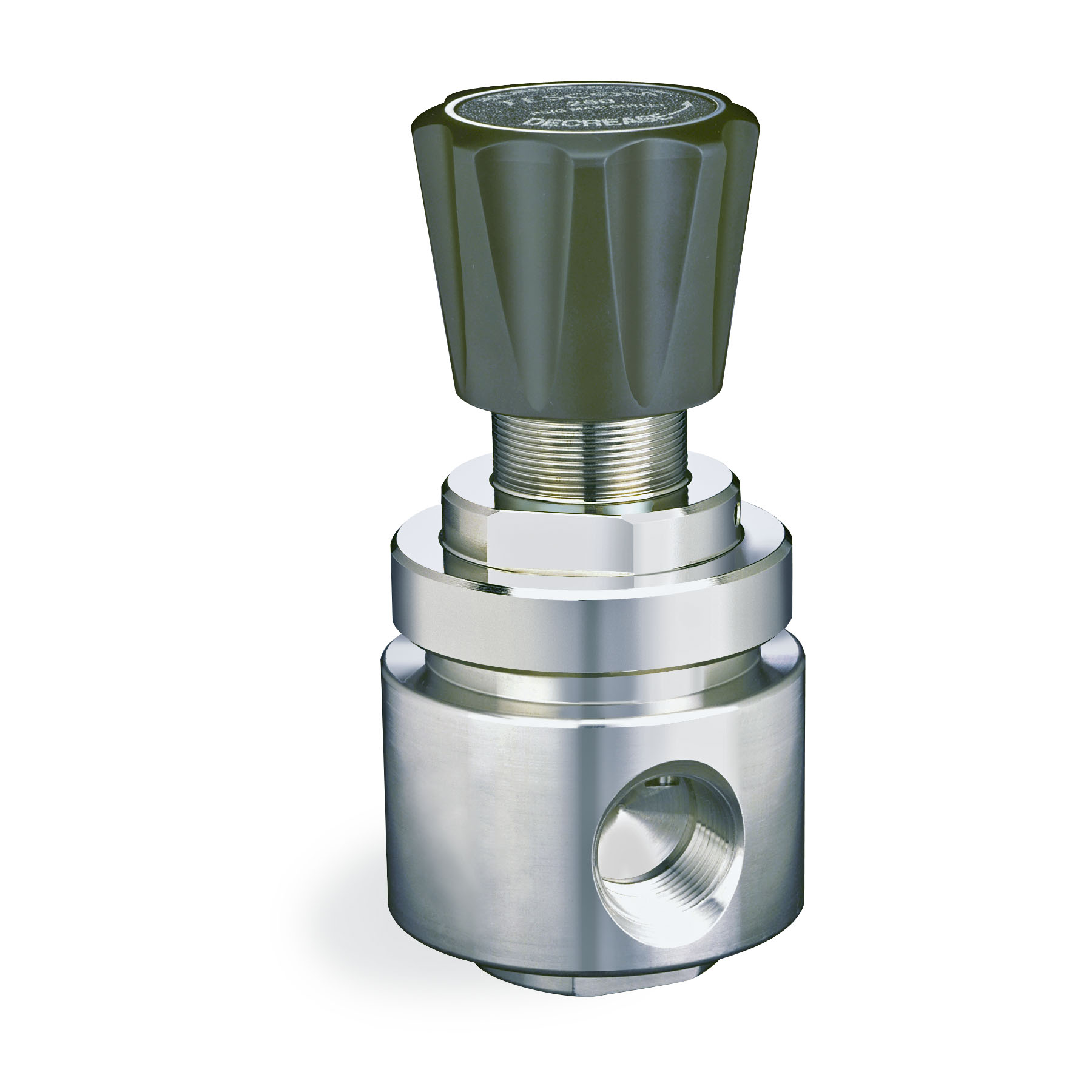

TESCOM™ FR2000 Gas Pressure Regulator

FR2000 Series regulator is extremely accurate and designed for high flow at low outlet pressure. Diffusion-resistant metal diaphragm seal ensures gas purity and leak integrity. Ideal for use in low pressure purge.

Specifications

Pressure RatingMaximum Inlet Pressure: 500 psig / 34.5 bar <br>Outlet Pressure Ranges: 0 -<br>15, 30, 75, 150 psig / 1.0, 2.1, 5.2, 10.3 bar
MaterialBody, Diaphragm, & Spring: 316 Stainless Steel <br>Seat: FEP Teflon®<br>Retainer Seat: Nitronic 60<br>O-Ring: Teflon®<br>Remaining Parts: 316 Stainless Steel<br>
Operating Temperature-40°F to 165°F / -40°C to 74°C
Port Size & Type1/2, 3/4 NPTF
Flow CapacityCv = 1.8
Load TypeDome
Weight (without gauges)6.0 lbs / 2.7 kg
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
