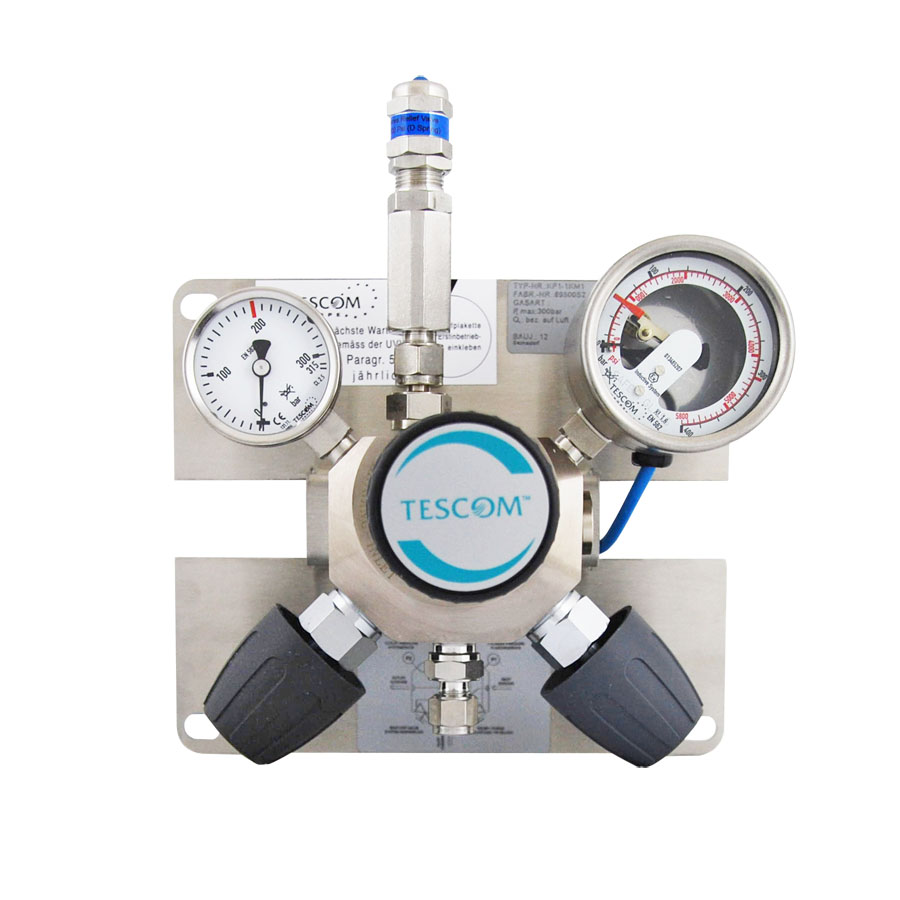

TESCOM™ High Pressure Panel Regulator

High Pressure Panel is a central gas supply unit for the pressure control of analytical gases in laboratory facilities. The use of contact gauges allows the monitoring of the filling pressure of gas cylinders. This product is ideal for high pressure central gas supply for the distribution of gases in laboratory applications and suitable for ECD (Electronic Capture Detector) applications.

Specifications

Fluid MediaFor non corrosive gases and mixtures up to high purity of 6.0 (99.9999 Vol%).
Pressure RatingMaximum Inlet Pressure: <br>2900 psig / 200 bar<br>4350 psig / 300 bar<br>Outlet Pressure Range<br>2175 psig / 150 bar<br>
MaterialChrome plated Brass or Stainless Steel
Operating Temperature-4°F to 158°F / -20°C to 70°C
Flow CapacityCv = 0.06
Weight9.26 lbs / 4.2 kg
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
