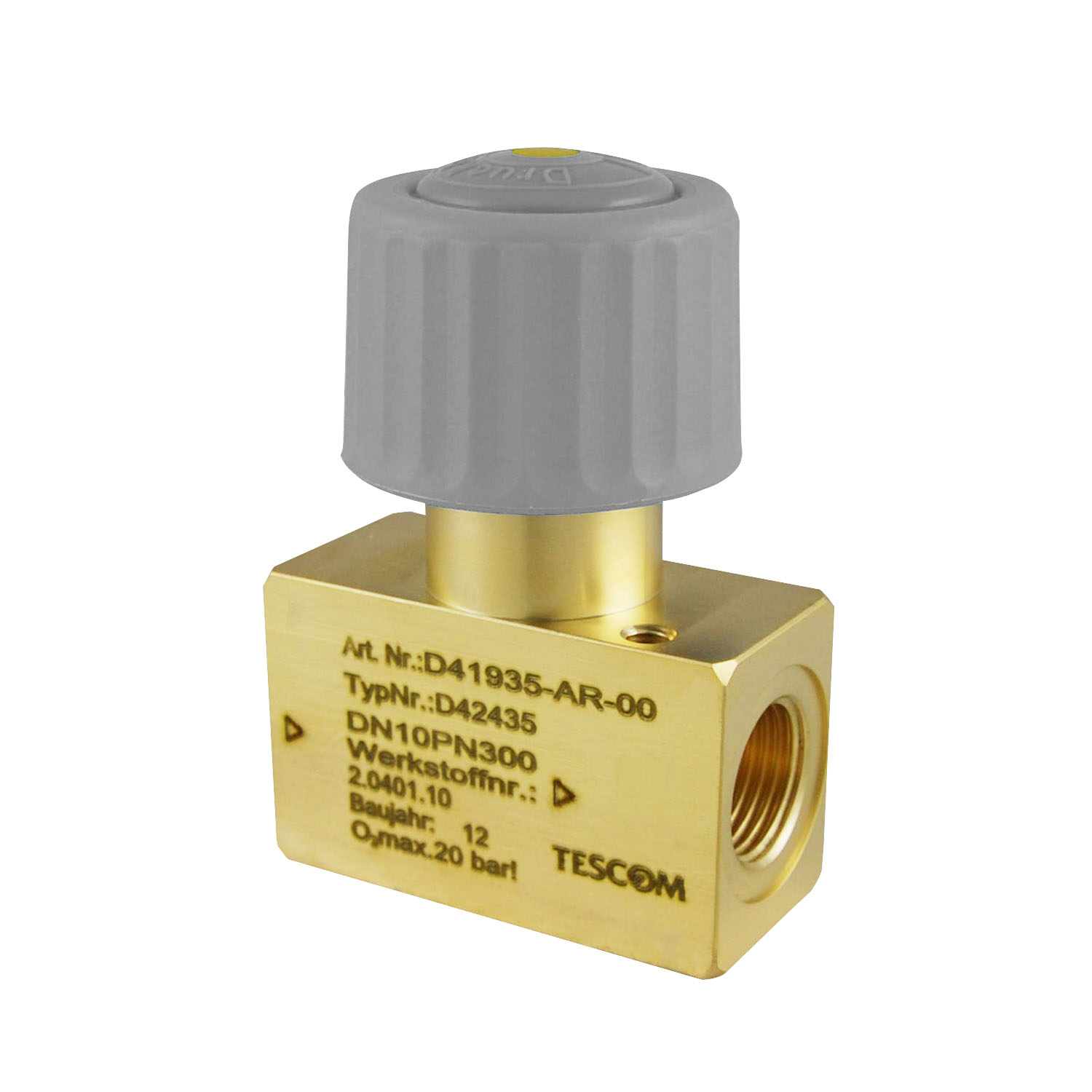

TESCOM™ High Pressure Gas Valve

High Pressure Valve for the supply of high purity gases in laboratory gas supply lines. Ideal for high pressure systems and high flow systems. Suitable for 5.0 purity gas applications. This product is also used in main lines and specialty panel solutions.

Specifications

Nominal Width (DN)Line Valve: 0.394'' / 10 mm
Nominal PressureLine Valve: 4351 psig / 300 bar
Operating Temperature-4°F to 158°F / -20°C to 70°C
MaterialBody: Brass<br>Shaft Gasket: O-ring package, FSI <br>Seat <br>Line Valve: PA 6.6, O2: Vespel®
Inlet & Outlet ConnectionLine Valve: G 1/2 female
WeightLine Valve: 1.4 lbs / 0.65 kg
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
