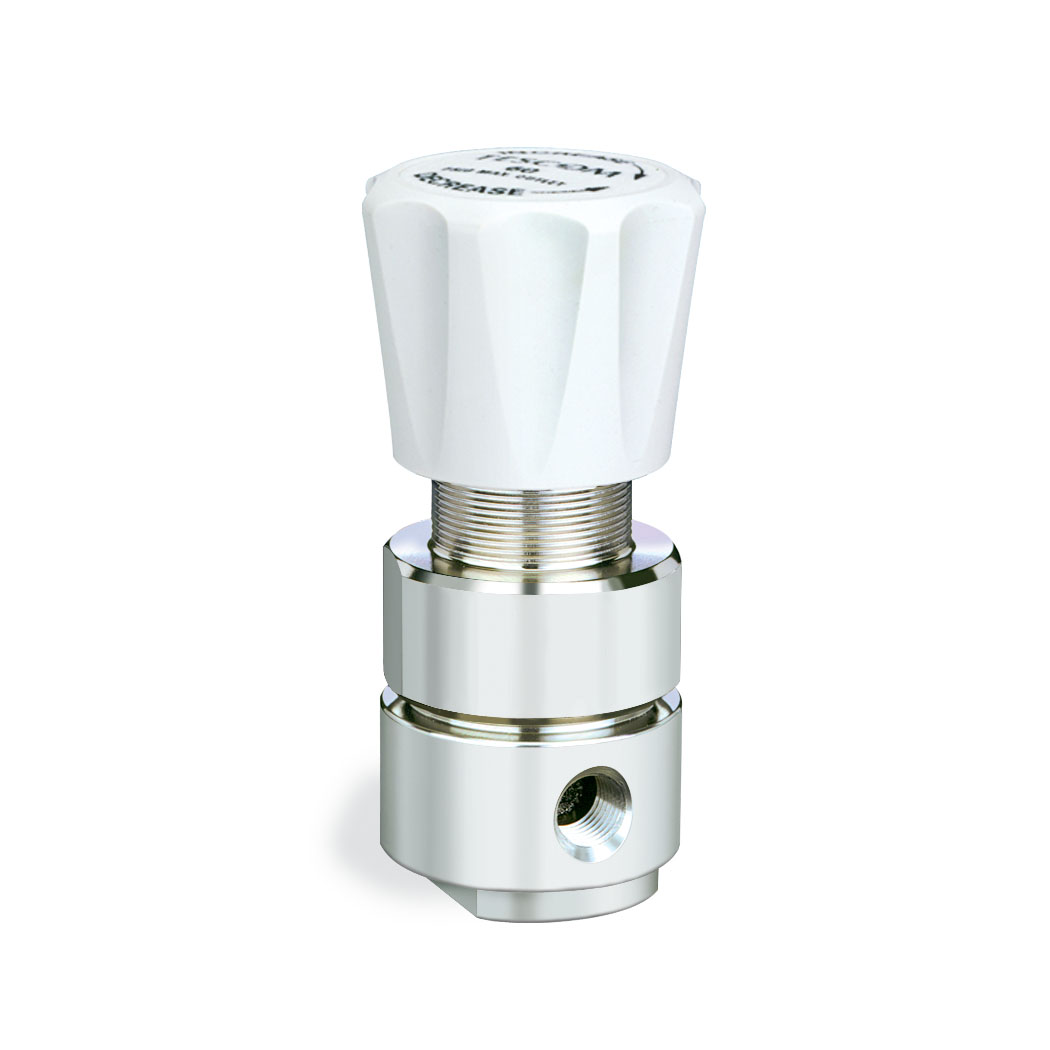

• PROD_AS_TESC_PH-2200-NPT--161456

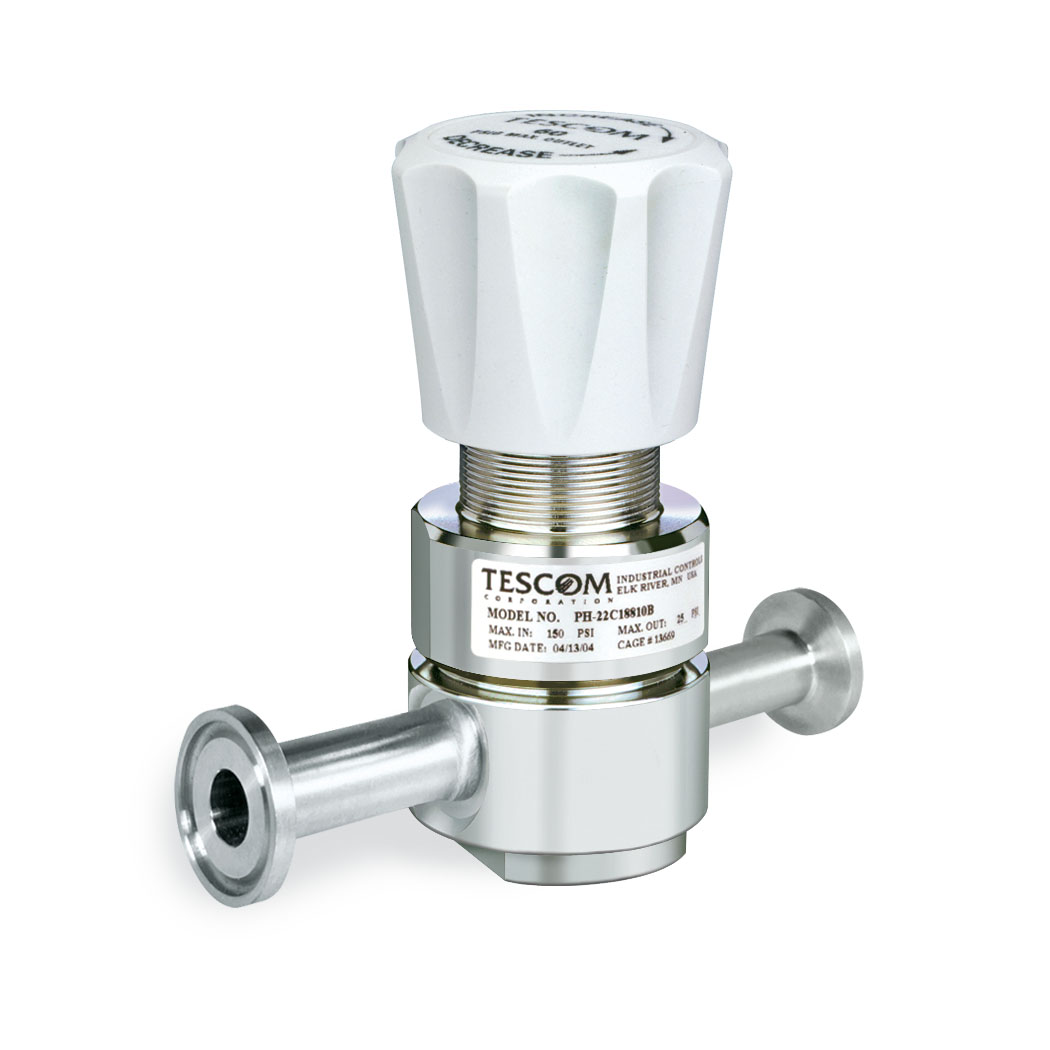

  • PROD_AS_TESC_PH-2200-Sanitary--161444
Main Image
Main Image

TESCOM™ PH-2200 Single Stage Regulator

PH-2200 Series is part of our Pharmpure product line. This high purity single-stage regulator offers a compact, USP Class VI and BPE compliant design suitable for specialty, corrosive, and pyrophoric gases of < 5 SCFM / 142 SLPM. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Ideal for use in sparge gases, clean steam for sanitization, transfer panels and low flow specialty gas.

Specifications

Maximum Inlet Pressure150 psig / 10.3 bar
Outlet Pressure RangesSpring (handknob): 0-10, 0-25, 0-50, and 0-100 psig / 0-0.69, 0-1.7, 0-3.4, and 0-6.9 bar<br>Spring Bias and Dome: 0-100 psig / 0-6.9 bar (See Part Number Selector for more details)
Body Material316L Stainless Steel
Seat MaterialTeflon®, PEEK-OPTIMA® or PEEK-Classix®
Friction SleeveInner: Teflon®<br>Outer: 316 Stainless Steel
Diaphragm & Valve Guide316 Stainless Steel
Seat RetainerNitronic 60
Remaining Parts316 Stainless Steel
Operating Temperature (Media Only)Teflon® Seat: -40°F to 165°F / -40°C to 74°C<br>PEEK-OPTIMA® or PEEK-Classix® Seat: -40°F to 400°F / -40°C to 204°C
Port Size & TypeInlet & Outlet Port Type: Sanitary, Tube<br>Inlet & Outlet Port Size: 3/8 (Tube Only), 1/2
Flow CapacityCv = 0.06, 0.15, and 0.24
Load TypeSpring, Spring Bias, Dome
Weight (approximate)2.0 lbs / 0.9 kg
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
