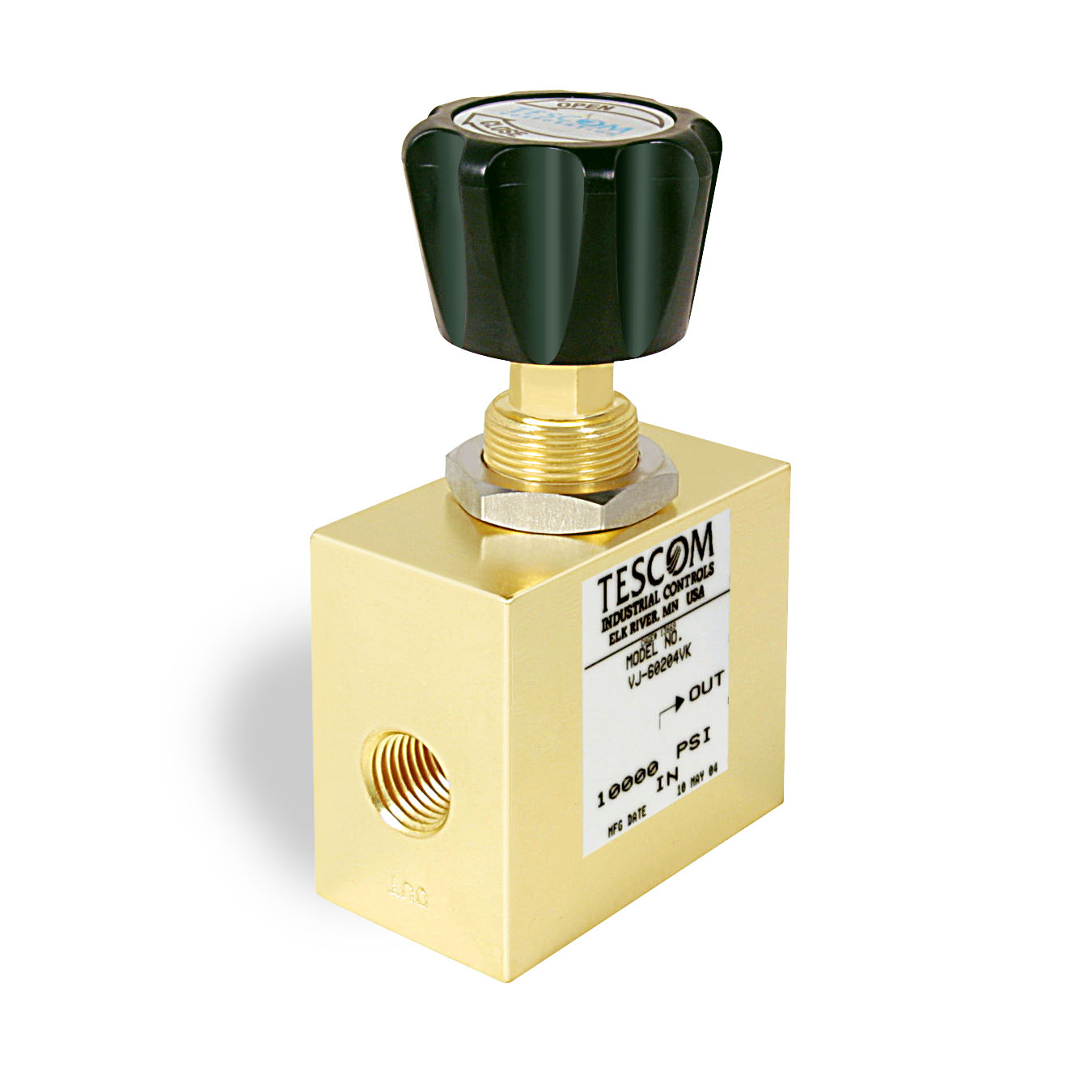

TESCOM™ VJ Series Valve Pressure Control

Contact Sales
VJ Series hand valves offer control pressure of 6000 and 10,000 psig / 414 and 690 bar. Available in angle and globe patterns. Ideal for use in pressure control panels and Ground Support Equipment (GSE).

Specifications

Maximum Operating Pressure316 Stainless Steel Body: 10,000 psig / 690 bar<br>Brass Body: 6000 psig / 414 bar
Body Material316 Stainless Steel or Brass
Seat MaterialCTFE, Nylatron, Peek, Teflon® or Vespel®
Back-up RingTeflon®
O-RingsBuna-N, Ethylene Propylene, Kalrez® or Viton®
Remaining PartsMonel® and Brass or Stainless Steel
Operating TemperatureSee Data Sheet
Port Size & Type1/4, 3/8 (available in globe pattern only)<br>BSPP, SAE, NPTF, MS33649
Flow CapacityCv = 0.49 Angle<br>Cv = 0.28 Globe
Weight1.5 lbs / 0.7 kg
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
