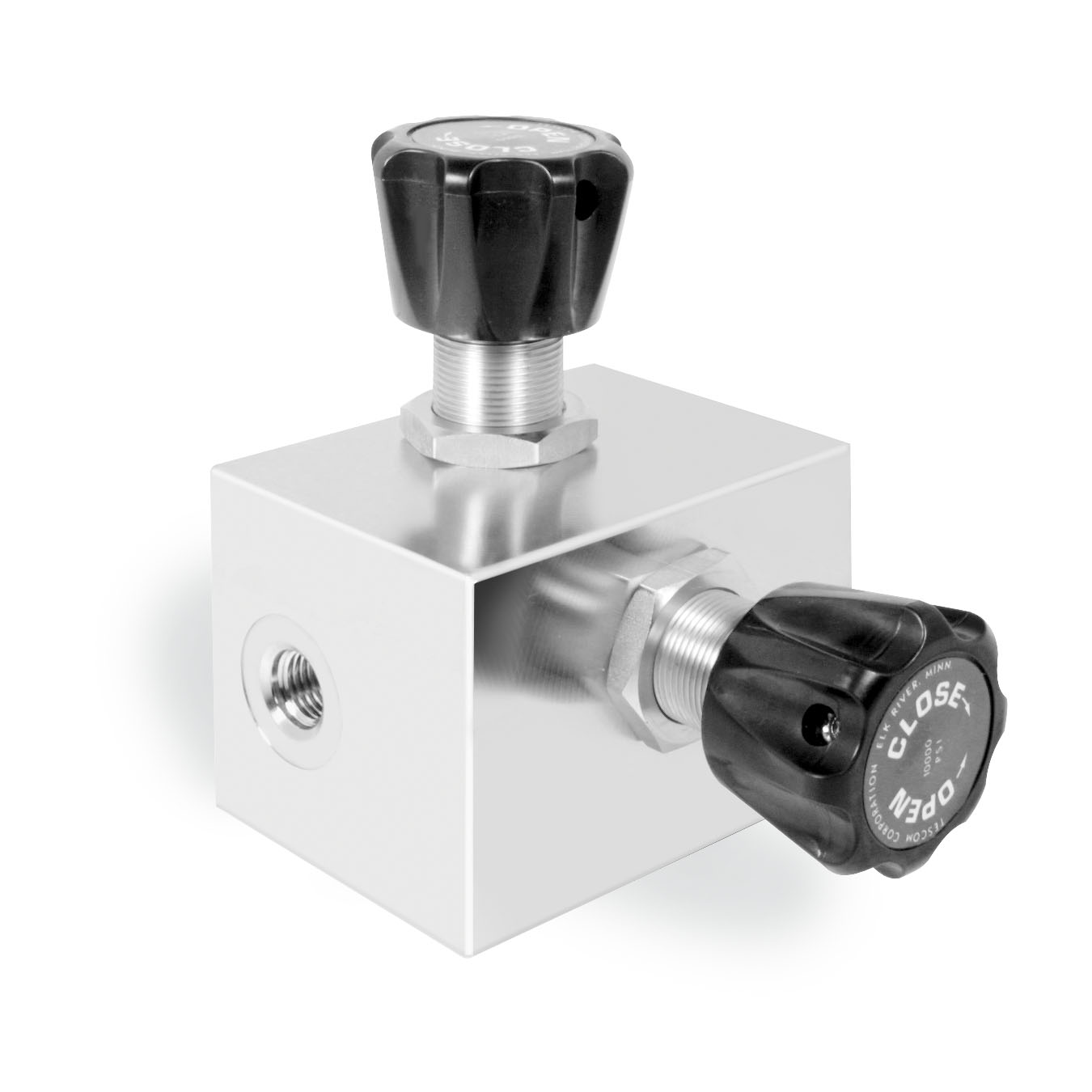

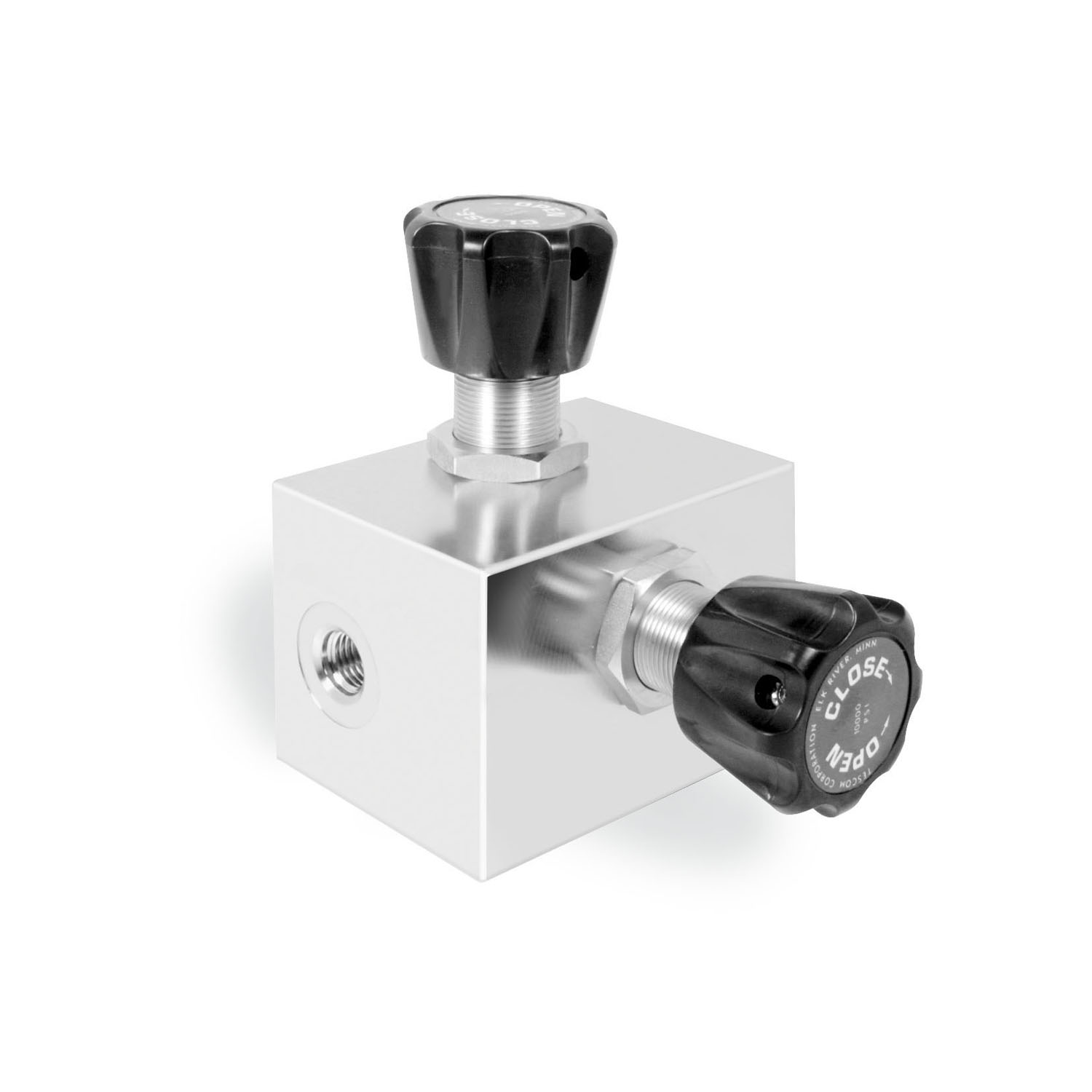

TESCOM™ VK Series Valve Manifold Pressure

VK Series block and bleed manifold offers control pressures of 6000 and 10,000 psig / 414 and 690 bar. This valve is based on TESCOM?s field proven VJ Series. Ideal for purge applications.

Specifications

Maximum Operating PressureStainless Steel: 10,000 psig / 689 bar<br>Brass: 6000 psig / 414 bar
Body Material316 Stainless Steel or Brass
Seat MaterialCTFE, Peek, Teflon® or Vespel®
Back-up RingCTFE
O-RingsBuna-N, Ethylene Propylene, Kalrez® or Viton®
Remaining Parts300 Series Stainless Steel, 17-4 Stainless Steel
Operating TemperatureSee Data Sheet
Port Size & Type1/4, 1/2<br>NPTF, MS33649
Flow CapacityCv = 0.28
Weight5 lbs / 2.3 kg
Additional InformationFor custom modifications or a complete system solution, please contact your local sales office.
