The TopWorx™ GO™ Switch

TopWorx GO Switch provides maintenance-free reliability, unique design and simplified operation where conventional switches fail.

OVERVIEW

ENVIRONMENT CHALLENGES

CHOOSE YOUR DESIGN

OVERVIEW

ENVIRONMENT CHALLENGES

CHOOSE YOUR DESIGN

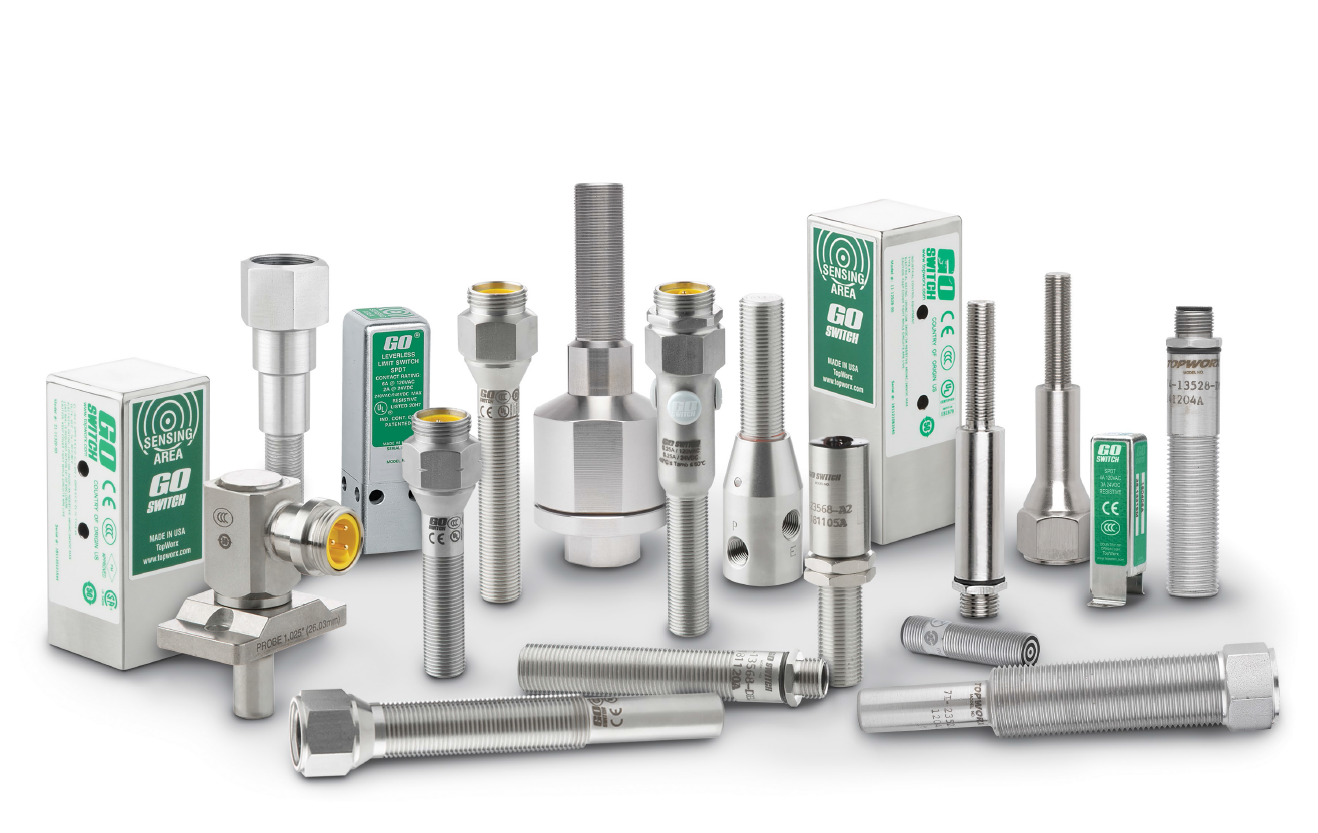

A Versatile Sensing Solution for the Most Challenging Environments

Emerson’s TopWorx™ GO™ Switch is an extremely versatile sensing solution designed for the most challenging environments and applications. It detects like a proximity switch and functions like a limit switch, providing higher reliability when conventional switches fail. GO Switch provides reliable, durable proximity sensing in the most demanding conditions, and its innovative, unique design provides simplified, maintenance-free high performance.

联系销售人员

查看宣传册

Keep your emissions under control with TopWorx GO Switch

TopWorx GO Switch Thief Hatch Monitoring System provides reliable proximity sensing technology you can rely on.

查看宣传页

How Challenging is Your Environment?

Hazardous Environments

The TopWorx GO Switch is designed to function where high temperature, pressure, radioactivity and potential for combustion are constant challenges. In addition to high temperature +204 °C (+400 °F), cold temperature -50 °C (-58 °F), and sub-sea 7,010 m (23,000 ft) applications, these products are suitable for use in Flameproof/Explosion Proof, Non-Incendive, Intrinsically Safe hazardous areas with both global and regional certifications available.

A Versatile Combination of Proximity Switch and Limit Switch

The TopWorx GO Switch uses magnets to detect a ferrous metal or magnetic target, and like other proximity switches has no exposed, moving parts. Like a limit switch, it provides highly precise readings and is suitable for a wide variety of industrial applications. By combining these features, the GO Switch requires far less maintenance than traditional limit switches and performs within ruggedized and harsh environments that often prohibit the use of other technologies such as inductive or capacitive sensors.

联系销售人员

Choose your design

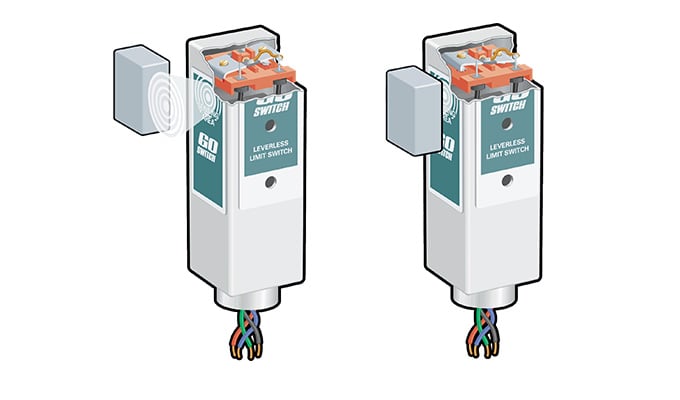

方形 TopWorx GO 开关是传统机械限位开关的理想替代产品。通常用于要求精度略低、有侧面和端部感应变化的延伸感应应用。两块内部磁体（其中一块为主导）影响支持密封触点的电枢位置。进入感应区域的铁质或磁性目标会转移磁通量场，使另一个磁体成为主导，致使电枢闭合触点后产生信号。

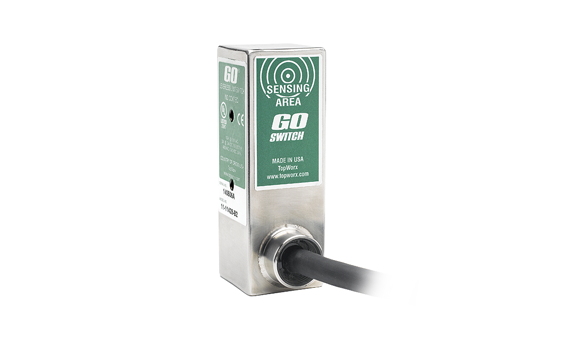

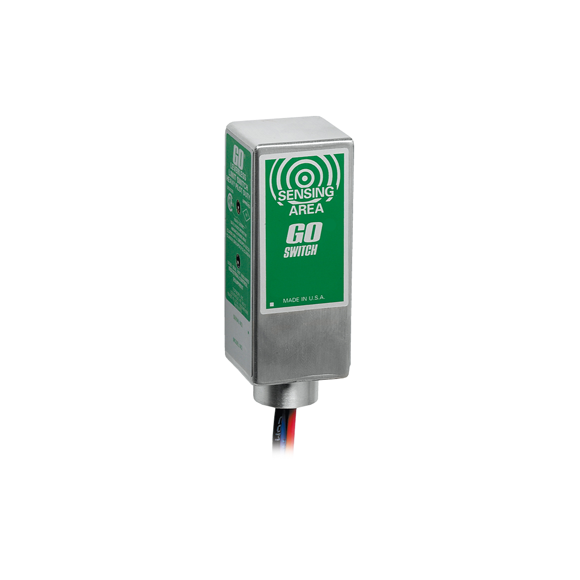

TopWorx™ GO™ Switch 21 型开关

提供与 GO™ Switch 11 型相同的功能，21 型 GO™ Switch 设计体积更小。全部 GO™ Switch 开关接线方案包括 A/C、D/C、N/O 或 N/C，操作不消耗功率，无电流泄漏或电压压降。

VIEW DETAILS

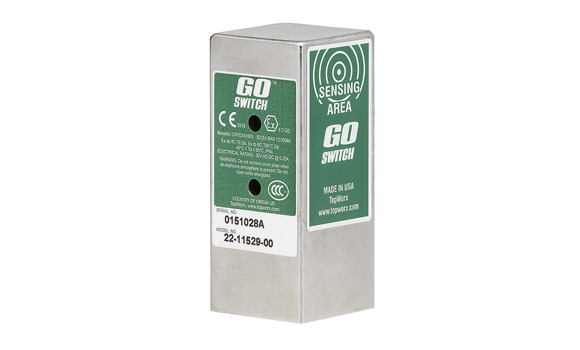

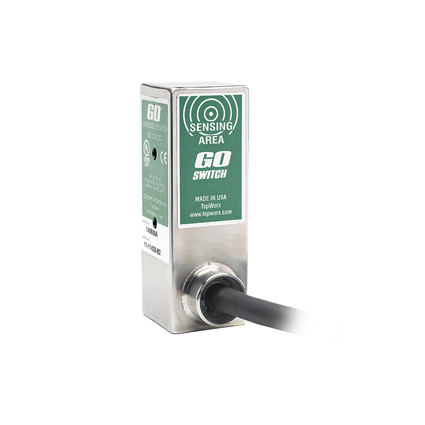

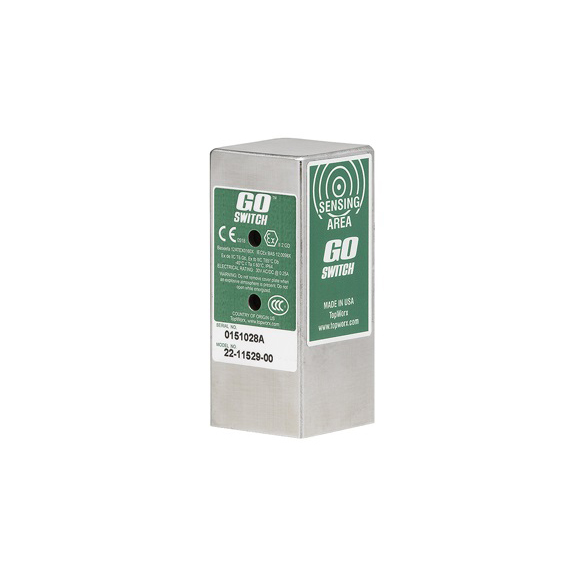

TopWorx™ GO™ Switch 22 型

22 型是 12 型的精巧外形版本，同样适用于 ATEX/IECEx 1 区，以及较小包装中的 Ex ’de’ 隔爆和增安型危险区域分类。

VIEW DETAILS

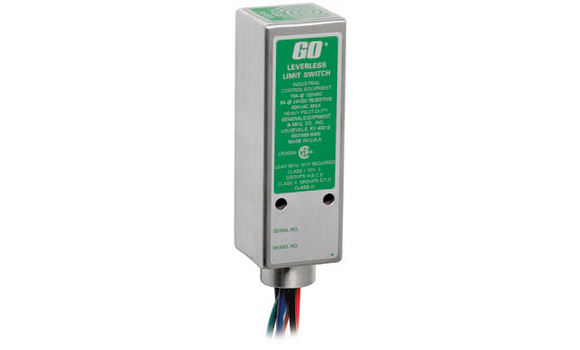

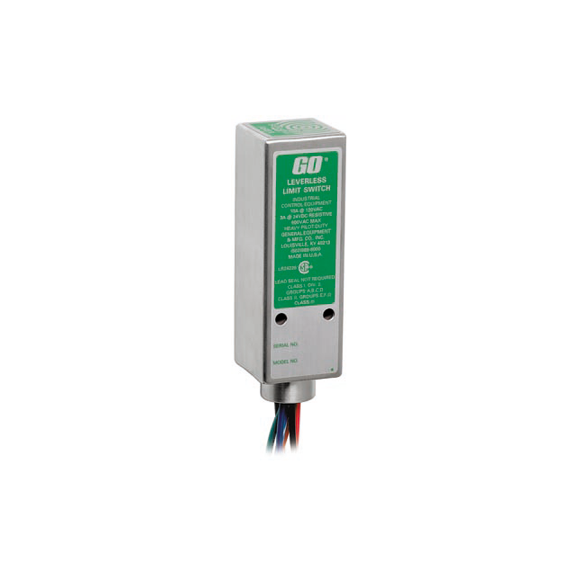

TopWorx™ GO™ Switch 11 型开关

GO™ Switch 11 型开关为正方形设计，兼有 3/8™ 传感范围，具有密封涂金接触器，非接触传感和瞬时作用响应。

VIEW DETAILS

TopWorx™ GO™ Switch 81 型

GO™ 81 型开关提供终端传感和可选双刀双掷 (DPDT) 接触器排列，兼有 1/4™ 感应范围，可选接线选件包括 AC、DC、N/O 和 N/C。

VIEW DETAILS

Show More Products

Frequently Asked Questions about GO Switch

GO Switch provides reliable, durable proximity sensing in the most demanding conditions. Using unique technology, GO Switch outperforms all other types of sensors in applications that require high reliability and durability.

The TopWorx GO Switch is the most versatile sensing solution. It detects like a proximity switch and functions like a limit switch, providing higher reliability when conventional switches fail. The all-in-one proximity sensor and limit switch.

TopWorx GO Switches operate on the principle of magnetic attraction, reacting to ferrous metal or magnetic targets as they come within the switch's sensing range.

Extended Sensing - Sealed contacts, rugged housings, non-contact detection of ferrous metal & magnetic targets, and snap action response make these switches the ultimate problem solvers for troublesome mechanical limit switch applications.
Precision Sensing - With all stainless-steel construction, flexible AC/DC, NO/NC, and SPDT/DPDT contact configurations, superior corrosion resistance, and global certifications for all hazardous areas, 70 Series GO Switches outperform inductive proximity switches in the toughest applications.

TopWorx GO Switches are suitable for use in Flameproof/Explosion Proof, Non-Incendive, Intrinsically Safe hazardous areas with both global and regional certifications available.

TopWorx GO Switches are available in temperature ranges between -50°C to +204°C (-58°F to 399.2°F).

Media & Case Studies

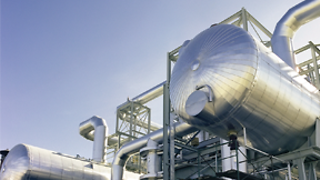

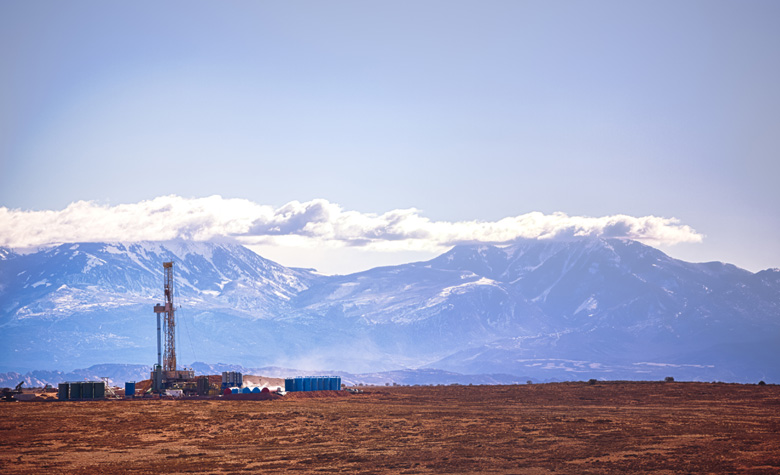

Position Verification for Oil Well Shutdown

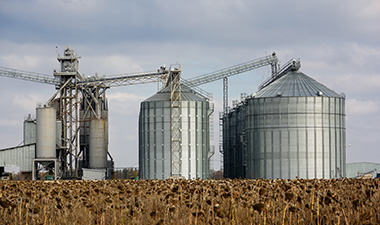

Enabled Increased Performance for Grain Storage

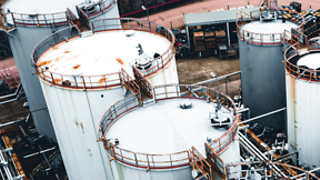

Limiting Emissions from Open Thief Hatch

Real Time Monitoring of Lubricating Equipment

Explore Other Solutions for Your Critical Applications

TopWorx solutions provide high reliability and installation flexibility while increasing profitability and reducing downtime in the most demanding applications.
