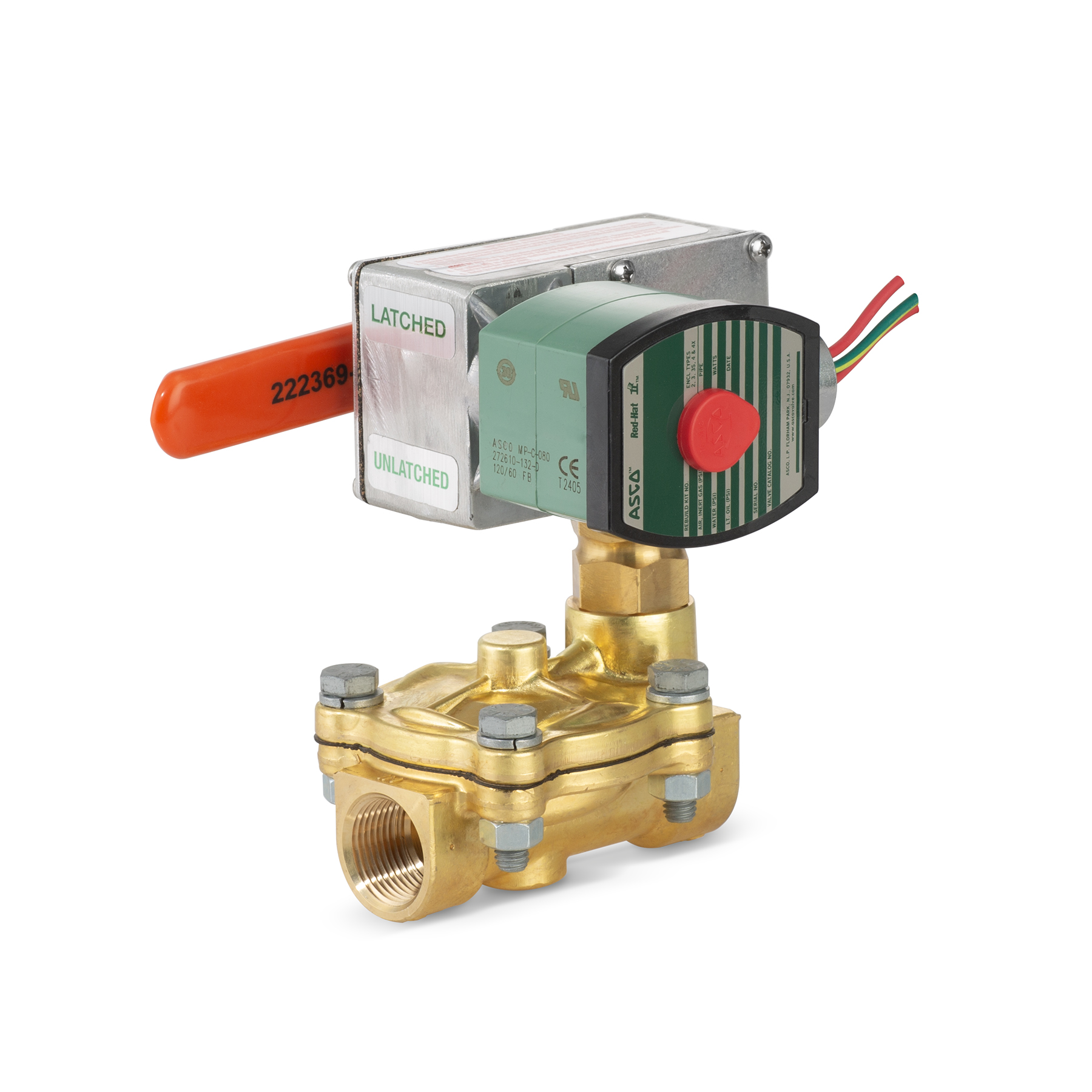

ASCO™ 025 Manual Reset Solenoid Valves

The ASCO Series 025 manual reset valves are designed to prevent inadvertent valve start-ups. Once tripped, the valves require electrical power restoration and manual operation to reset. They are ideal for controlling critical processes in refining applications.

Specifications

Valve ActuationSolenoid - Latching
Body MaterialBrass; Stainless Steel
MediaAir, Inert Gas; Light Oil; Steam; Water
Pipe / Port Size3/4 "; 1 "; 1 1/4 "; 1 1/2 "
Port TypeNPTF
Function2 way - 2/2 Normally Closed; 2 way - 2/2 Normally Open
FlowFrom 6.0 Cv to 14.0 Cv; Over 14.0 Cv
Voltage24 AC; 120 AC; 480 AC; 6 DC; 12 DC; 24 DC; 120 DC; 240 DC - 60
Max Differential / Max Operating Pressure150-500 PSIG
Operating EnvironmentCorrosive; Hazardous; Indoor
Standards / RegulationsCSA; Type 3; Type 7; Type 9
