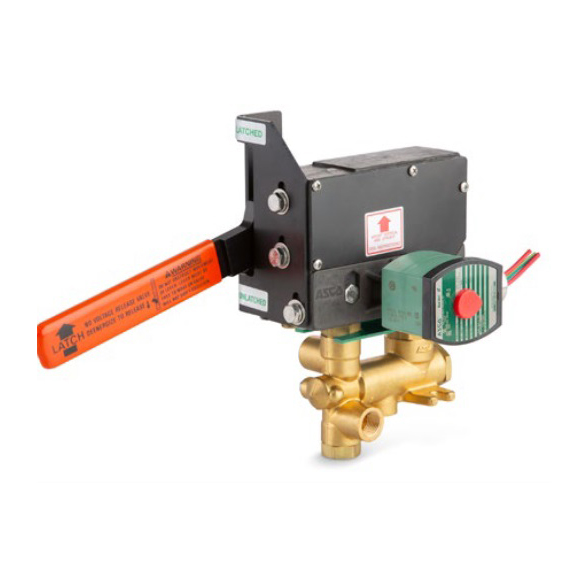

ASCO™ 037 3/2 Way Manual Reset Solenoid Valves

The ASCO Series 037 3/2-way manual reset solenoid valves have high-flow, high-pressure bodies with manual reset to prevent inadvertent valve start-ups. Electrically tripped (trips when energized), no-voltage release (trips when de-energized), or free-handle constructions are available. The valves are ideal for controlling critical processes in refining and chemical industry applications. Some models can control aggressive fluids, including steam

Specifications

Valve ActuationSolenoid - Latching
Body MaterialBrass, Stainless Steel
MediaAir, Inert Gas, Light Oil, Steam
Pipe / Port Size1/4 "; 3/8 "
Port TypeNPTF
Function3 way - 3/2 Universal
FlowFrom 0.1 Cv to 0.5 Cv, From 0.5 Cv to 1.0 Cv
Voltage24 AC, 120 AC, 480 AC, 6 DC, 12 DC, 24 DC, 48 DC, 120 DC, 240 DC | 60
Max Differential / Max Operating PressureVacuum to 150 PSIG
Operating EnvironmentHazardous, Indoor
Standards / RegulationsCSA, Type 3, Type 7, Type 9
