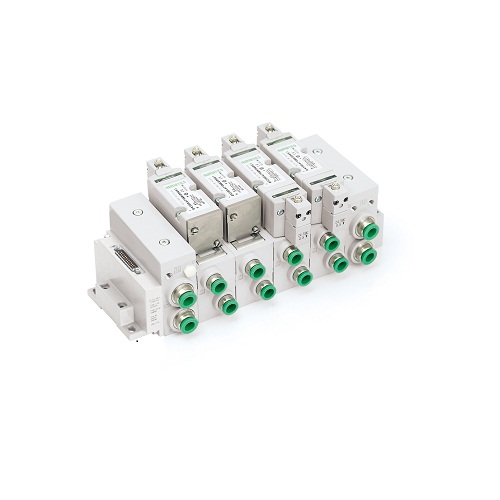

ASCO™ Numatics Series 2004 Directional Control Valves

The ASCO Numatics Series 2004 is a line of miniature direct-solenoid and solenoid air pilot-actuated directional control valves. The modular valves feature plug-together flexibility and expandability that eliminate internal wiring and simplify configuration. The 2004 offers high flow in a compact package and is ideal for automotive, bottling, press room and stamping, and tire manufacturing applications.

Specifications

Valve ActuationSolenoid - Air Pilot, Solenoid - Direct Acting
Pipe / Port Size1/8, 1/4, 4 mm, 6 mm
Port TypeG ISO228/1-G BSPP, NPTF, Push-in
Function4 way - 4/2, 4 way - 5/2, 4 way - 5/3, 4 way - 5/3 - Closed Center, 4 way - 5/3 - Open Center, 4 way - 5/3 - Pressure Center
FlowFrom 0.1 Cv to 0.5 Cv
Standards / RegulationsCSA, IP65
Operating EnvironmentIndoor, Outdoor, Washdown
MediaAir, Inert Gas, Vacuum
