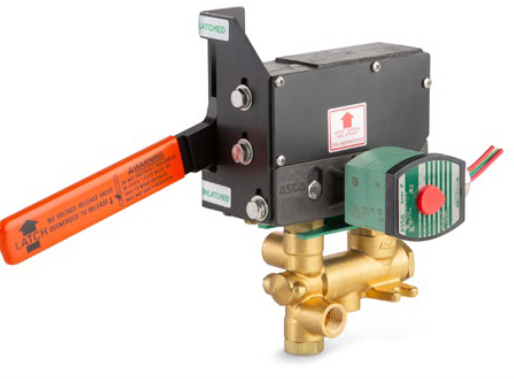

ASCO™ 310 High-Flow Manual Reset Solenoid Valves

Contact Sales
The ASCO Series 310, also known as 8310, are solenoid valves that have high-flow bodies with manual reset to prevent inadvertent valve start-up. Once tripped, the valves can only be reset manually. The 310 Series is ideal for controlling critical processes in applications such as biofuels and refining.

Specifications

Valve ActuationManual Reset
Body MaterialBrass; Stainless Steel
MediaAggressive Liquids/Gases; Air, Inert Gas; Light Oil; Steam; Water
Pipe / Port Size1/4 "; 1/2 "; 3/8 "; 3/4 "; 1 "
Port TypeNPTF
Function3 way - 3/2 Universal
FlowFrom 0.1 Cv to 0.5 Cv; From 0.5 Cv to 1.0 Cv; From 1.0 Cv to 2.0 Cv; From 2.0 Cv to 6.0 Cv;From 6.0 Cv to 14.0 Cv
Voltage24 AC; 110 AC; 120 AC; 480 AC; 6 DC; 12 DC; 24 DC; 48 DC; 120 DC; 240 DC; 125 DC Battery Charging; 50 DC Battery Charging | 60
Max Differential / Max Operating Pressure150-500 PSIG
Operating EnvironmentCorrosive; Indoor; Outdoor; Hazardous
Standards / RegulationsCSA; Type 1; Type 3; Type 7; Type 9
