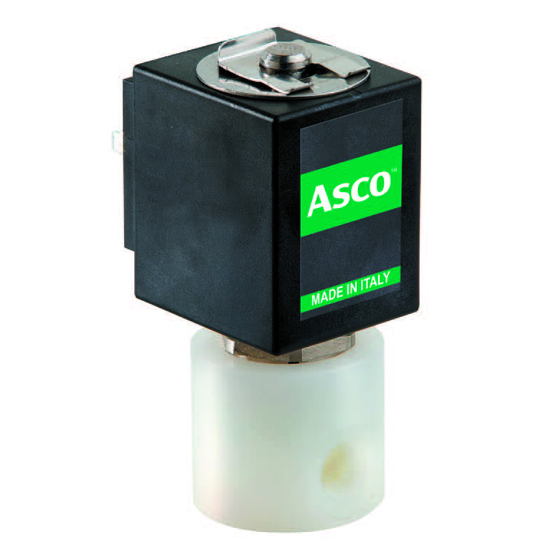

ASCO™ Series D105 Total separation solenoid valves (DRY)

ASCO Series D105 total isolation solenoid valves (DRY) combine the traditional characteristics of strength and reliability, with construction solutions that make them particularly suitable for the control of aggressive and/or no contaminable fluids. These valves are available in 2/2 or 3/2 normally closed, open or universal service versions, plus miniaturized or silent versions with a latching actuator. The diverse range of features make these valves versatile for applications in food, biotechnology, chemical/pharmaceutical, and physiological/medial industries.

Specifications

Body MaterialPVDF (Polyvinylfluoride)
Valve ActuationSolenoid - Direct Acting
Function2 way - 2/2 Normally Closed
Pipe / Port Size1/8 "
Port TypeG ISO228/1-G BSPP
Maximum allowable pressure (PS)4 bar
Fluid temperature-10°C +100°C
Max viscosity5°E (~37 cStokes or mm2/s)
SealingEPDM or VMQ or FPM or FFPM
