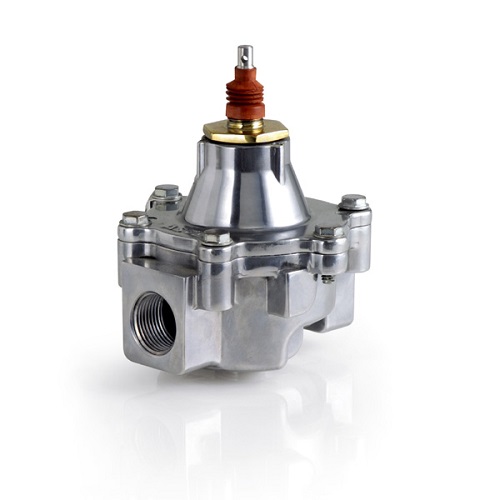

ASCO™ HV216 Gas Shutoff Solenoid Valves

The ASCO Series HV216 valve is designed to shut off gas flow when the cable holding it in the open position is released. The 2-way aluminum body valve meets the safety standards for commercial, industrial, and institutional kitchens set by the National Fire Protection Association. They are ideal for low-pressure gas shutoff applications.

Specifications

Function2 way - 2/2 Normally Closed
Valve ActuationSolenoid
MediaNatural Gas
Pipe / Port Size1/2 "; 3/4 "; 1 "; 1 1/4 "; 1 1/2 "; 2 "; 2 1/2 "; 3 "
Body MaterialAluminum
Port TypeNPTF
FlowFrom 2.0 Cv to 6.0 Cv; From 6.0 Cv to 14.0 Cv; Over 14.0 Cv
Max Differential / Max Operating PressureVacuum to 150 PSIG
Operating EnvironmentIndoor
Standards & RegulationsUL
