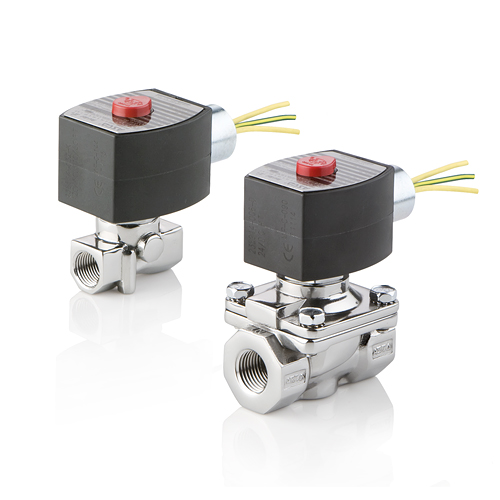

ASCO™ Series HV298 Gas Shutoff Valves

The ASCO Series HV298 low temperature stainless steel solenoid valves are designed for on-off control of fuel gas in commercial and industrial gas burners in harsh environments. Their peak-and-hold design provides very low power consumption. Robust construction offers consistent and reliable operation and resilient soft seating achieves tight shutoff. Suitable for applications such as tank heaters, line heaters, incinerators and flare stacks.

Specifications

Function2 way - 2/2 Normally Closed
Valve ActuationSolenoid
MediaNatural Gas
Pipe / Port Size1 "
Body MaterialStainless Steel
Voltage12 DC; 24 DC
Port TypeNPTF
FlowFrom 6.0 Cv to 14.0 Cv
Max Differential / Max Operating PressureVacuum to 150 PSIG
Operating EnvironmentIndoor; Outdoor; Hazardous
Standards & RegulationsCSA
