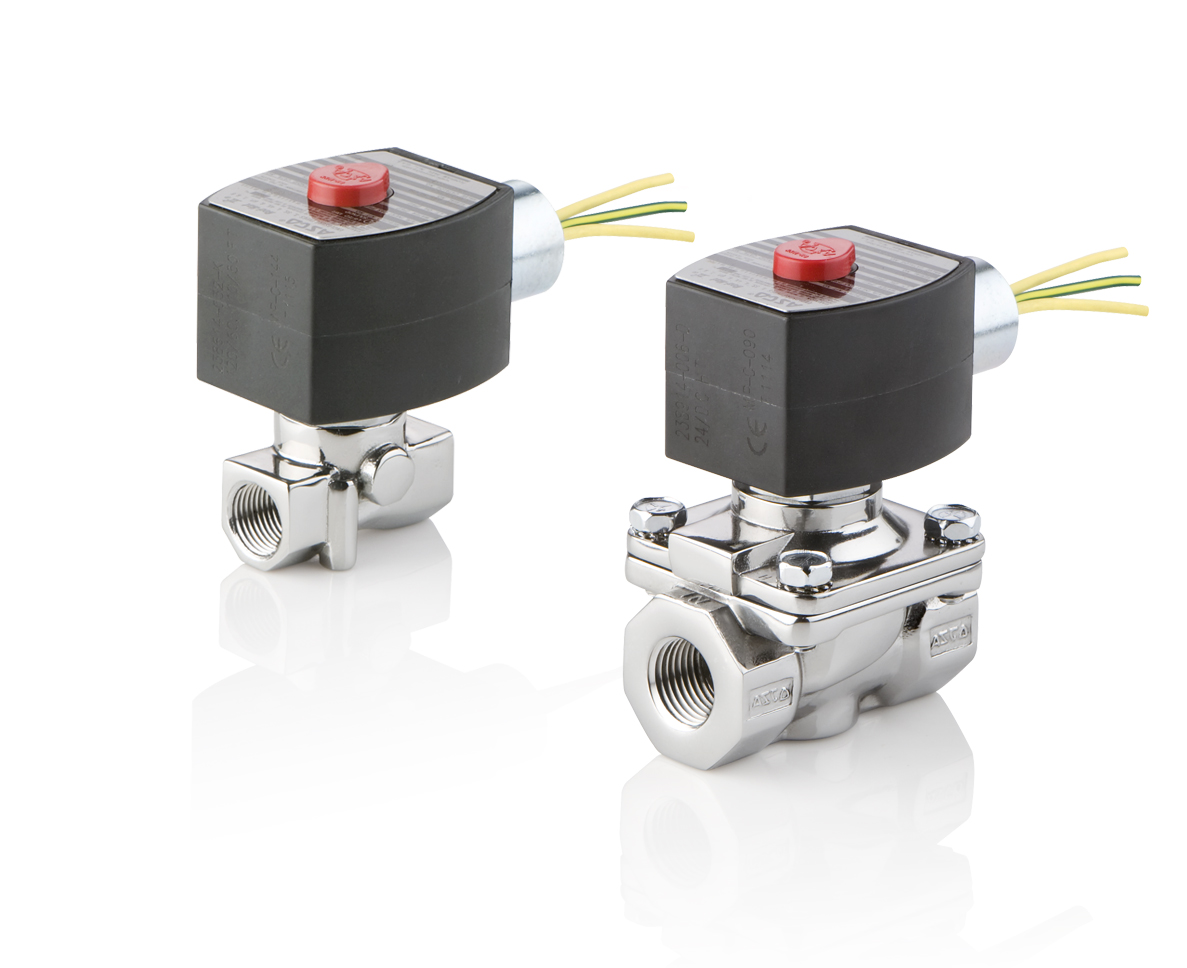

ASCO™ HV426 Gas Shutoff Solenoid Valves

The ASCO Series HV426 low temperature stainless steel gas shutoff valves are designed for the on-off control of fuel gas in commercial and industrial gas burners in harsh environments Its robust design provides consistent and reliable operation. The valves have resilient soft seating for tight shutoff and require zero minimum pressure differential. Suitable for applications such as tank heaters, line heaters, incinerators and flare stacks.

Specifications

Function2 way - 2/2 Normally Closed
Valve ActuationSolenoid
MediaNatural Gas
Pipe / Port Size1/4 "; 1/2 "; 3/8 "; 3/4 "
Body MaterialStainless Steel
Voltage12 DC; 24 DC
Port TypeNPTF
FlowFrom 6.0 Cv to 14.0 Cv; From 2.0 Cv to 6.0 Cv; From 1.0 Cv to 2.0 Cv
Max Differential / Max Operating PressureVacuum to 150 PSIG
Operating EnvironmentIndoor; Outdoor; Hazardous
Standards & RegulationsCSA
