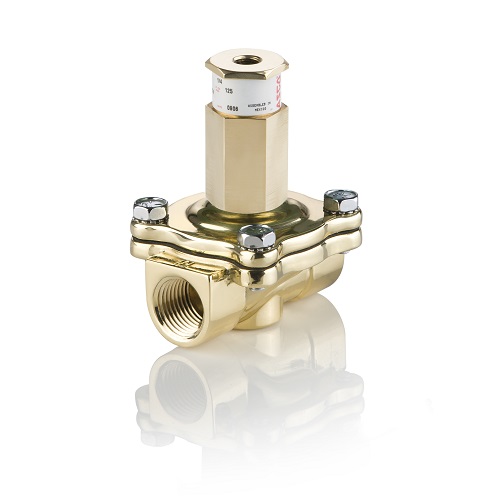

ASCO™ Series P210 Pneumatic Operator Valves

The ASCO Series P210 are 2-way pneumatically operated valves designed to provide long life handling lubricated air. Variations in pilot air pressure do not affect the valves´ operation. The ASCO Series P210 is suitable for use with air, inert gas, water and light oil media for many general service and life science applications.

Specifications

Valve ActuationPneumatic - Air Pilot
Body MaterialBrass
MediaAir, Inert Gas, Light Oil, Water,
Pipe / Port Size1/2 "; 3/8 "; 3/4 "; 1 "; 1 1/4 "; 2 "
Port TypeNPTF
Function2 way - 2/2 Normally Closed, 2 way - 2/2 Normally Open
FlowFrom 6.0 Cv to 14.0 Cv, From 2.0 Cv to 6.0 Cv, From 1.0 Cv to 2.0 Cv, From 0.5 Cv to 1.0 Cv, Over 14.0 Cv
Max Differential / Max Operating PressureVacuum to 150 PSIG
Operating EnvironmentIndoor, Outdoor
