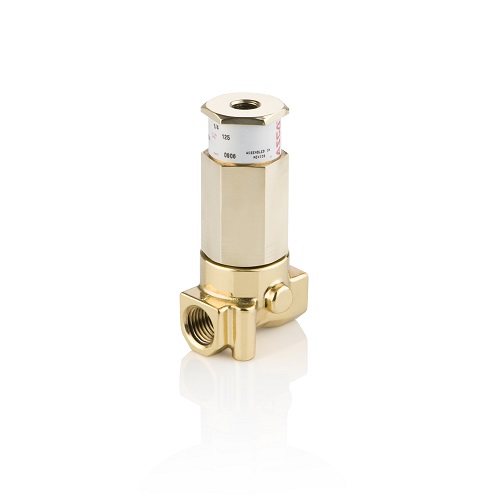

ASCO™ Series P262 Pneumatic Operator Valves

The ASCO Series P262 are 2-way pneumatically operated valves designed to provide long life handling lubricated air. Variations in pilot air pressure do not affect the valves´ operation. The ASCO Series P262 is suitable for use with air, inert gas, water and light oil media for many general service and life science applications.

Specifications

Valve ActuationPneumatic - Air Pilot
Body MaterialBrass
MediaAir, Inert Gas, Light Oil, Water
Pipe / Port Size1/4 "
Port TypeNPTF
Function2 way - 2/2 Normally Closed, 2 way - 2/2 Normally Open
FlowFrom 0.5 Cv to 1.0 Cv
Max Differential / Max Operating PressureVacuum to 150 PSIG
Operating EnvironmentIndoor, Outdoor
