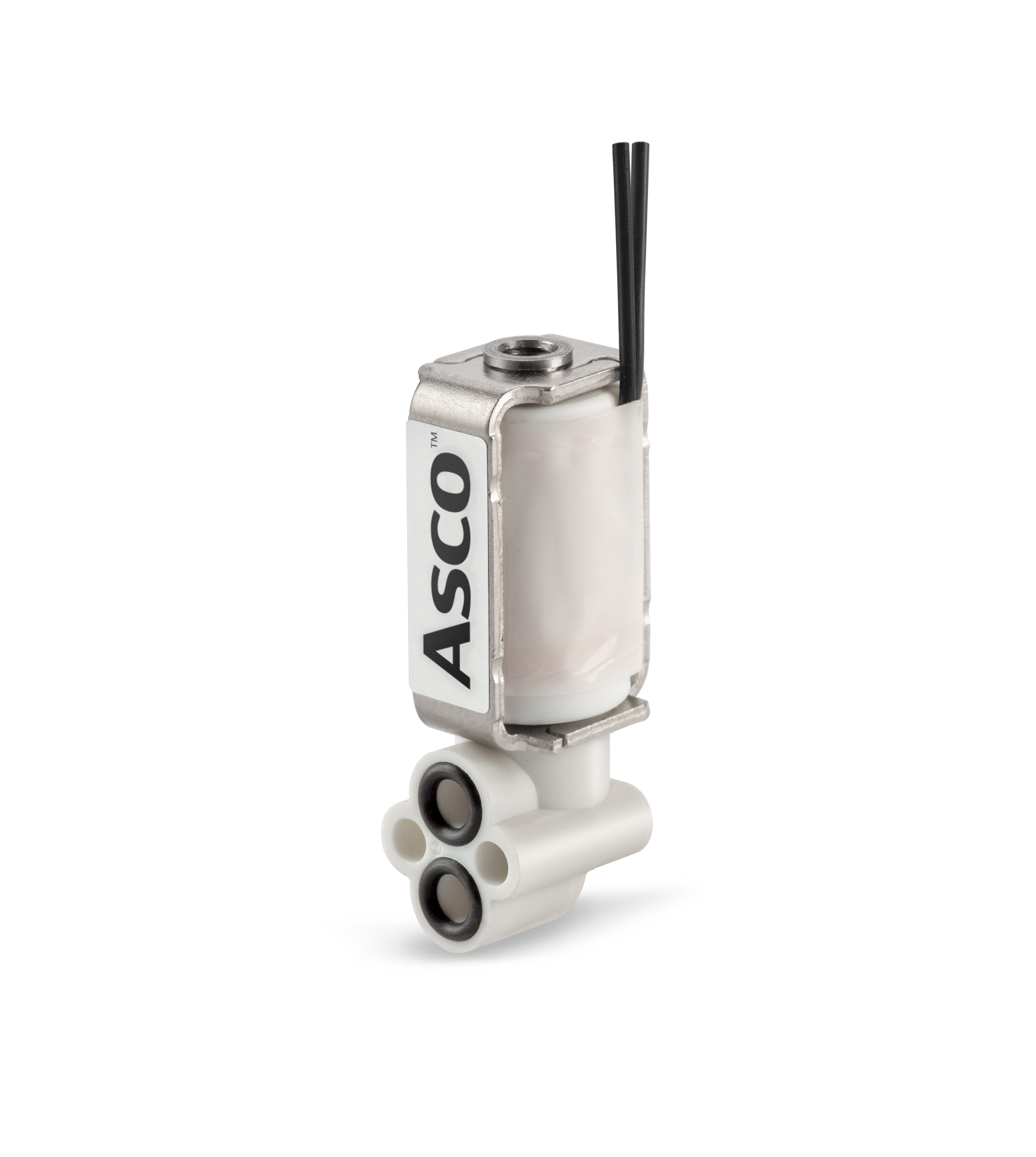

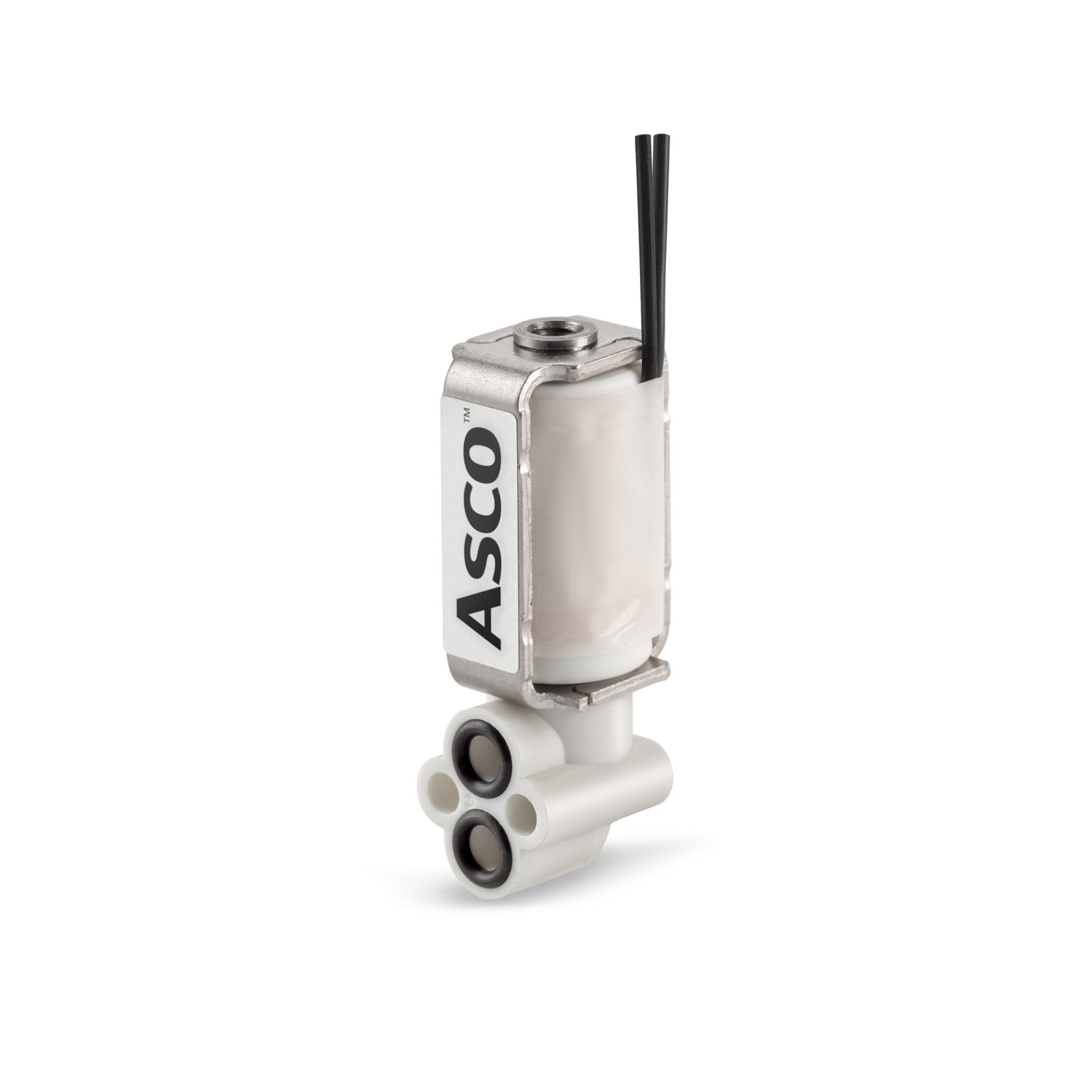

ASCO™ Series 090 Miniature Valves

Contact Sales
The ASCO Series 090 is a line of miniature solenoid valves designed for use with air and inert gases. Their compact, lightweight architecture and low power consumption make them ideal for portable medical devices. The valves exceptional service lifetime of over 50 million cycles significantly increases OEM instrument reliability. The 090 Series typical applications include Oxygen Delivery, Compression Therapy and Gas Analyzers.

Specifications

Valve ActuationSolenoid
Body MaterialPBT
MediaAir, Inert Gas; Oxygen
Port TypePad Mount
Function2/2 Normally Closed<br>3/2 Normally Closed
FlowUp to 0.072Cv
Voltage12 DC; 24 DC
Operating Pressure bar (psi)Up to 2.07 (30)
Operating EnvironmentIndoor
