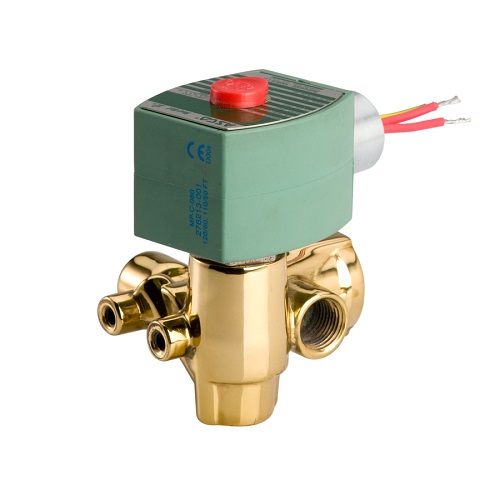

ASCO™ JKH8321G002MOAC24/60

Part Number:

Asco-JKH8321G002MOAC24/60

$803.00

Qty:
ADD TO CART
ASCO 321 Series valves are designed for quick venting to 0 psi through their external orifice. Air is exhausted to rapidly shift control valves. The pilot-operated valves have resilient seated poppets for tight shutoff. They are well suited for refining, chemical, and food and beverage applications that require a quick-exhaust valve.

Specifications

Body MaterialBrass
Flow (Cv) / Flow (Kv)0.80 / 0.69
Function3 way - 3/2 Normally Closed
Pipe/Port Type & SizeNPT 3/8
Valve ActuationSolenoid
Product Weight2.01 lbs
Kit Number302925-MO
Coil ClassHT
Coil Number238412-005
Orifice Size9/32 in
Voltage & Frequency24 Volts AC with 60 Hz
Watt Rating6.1 W
Item StatusActive
Carton Note3/8 X 9/32 3NC BRASS 6.1/H AC
Seating ElastomerNBR
Mounting DirectionAny
Watt Rating6.1
Voltage24 AC
Frequency60 Hz
