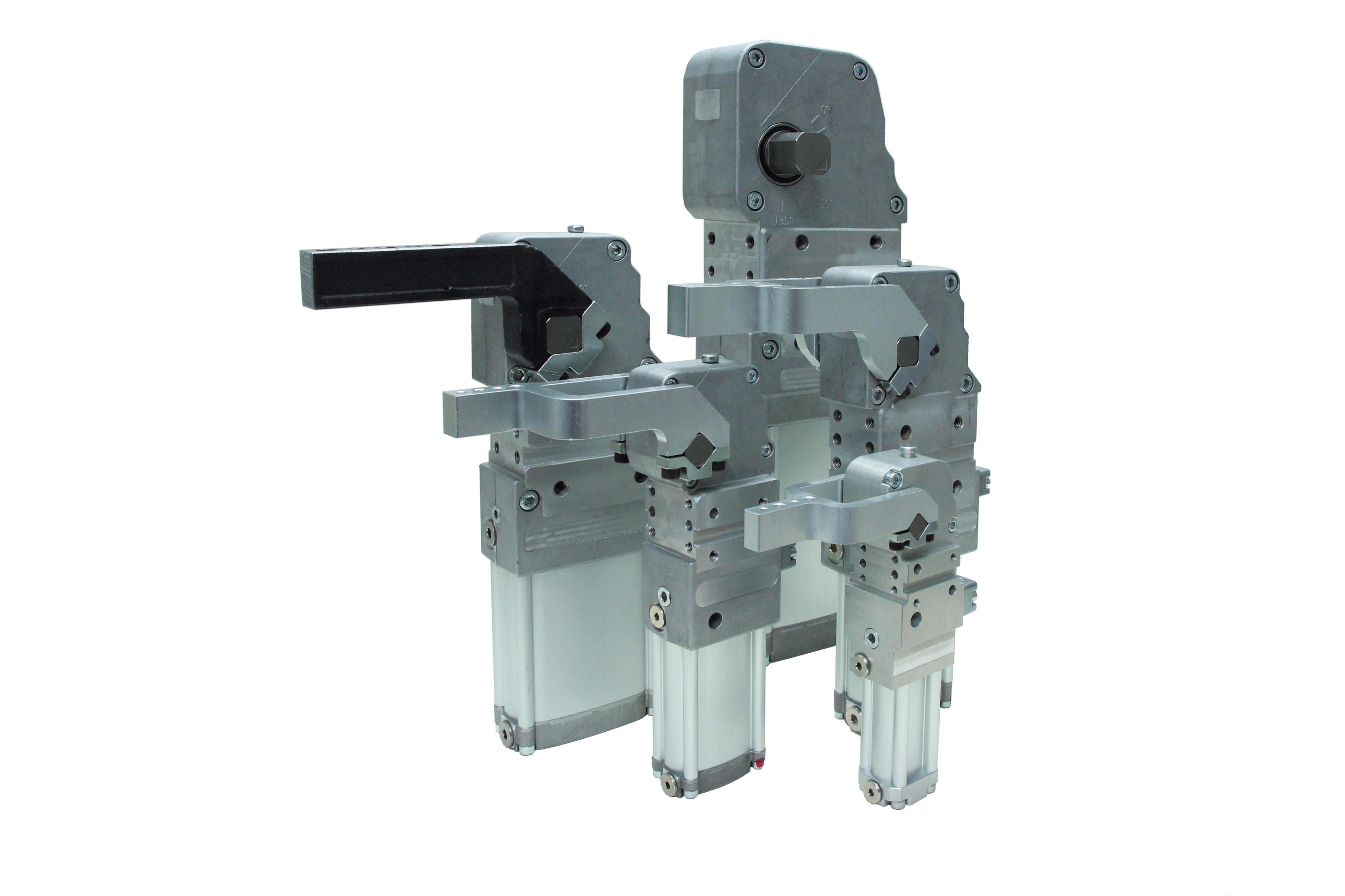

AVENTICS™ Series 412 Power Clamps

The AVENTICS Series 412 Power Clamps feature holding capacity up to 22,000 lb·in for high strength applications. They are available in six bore sizes, and feature a fully adjustable angle for ease of operation. The Series 412 generates its high clamping forces through a toggle link mechanism. The power clamp's opening angle can be set with or without pressure and remains locked in closed position even when air pressure is removed.

Specifications

Body MaterialAluminum
Arm MaterialAluminum or Steel
MediaAir, Inert Gas
Port TypeG thread or NPT
OperationPneumatic, Pneumatic with Manual operation
Max Operating Pressure30-115 psi (2.0-7.9 bar)
Operating temp range32°F to 122°F (0°C to 50°C)
LubricationLubricated for life at factory. Inline lubrication not needed.
Opening angle0° to 135°
Sensor typeNPN, PNP, with M8 or M12 connectors
