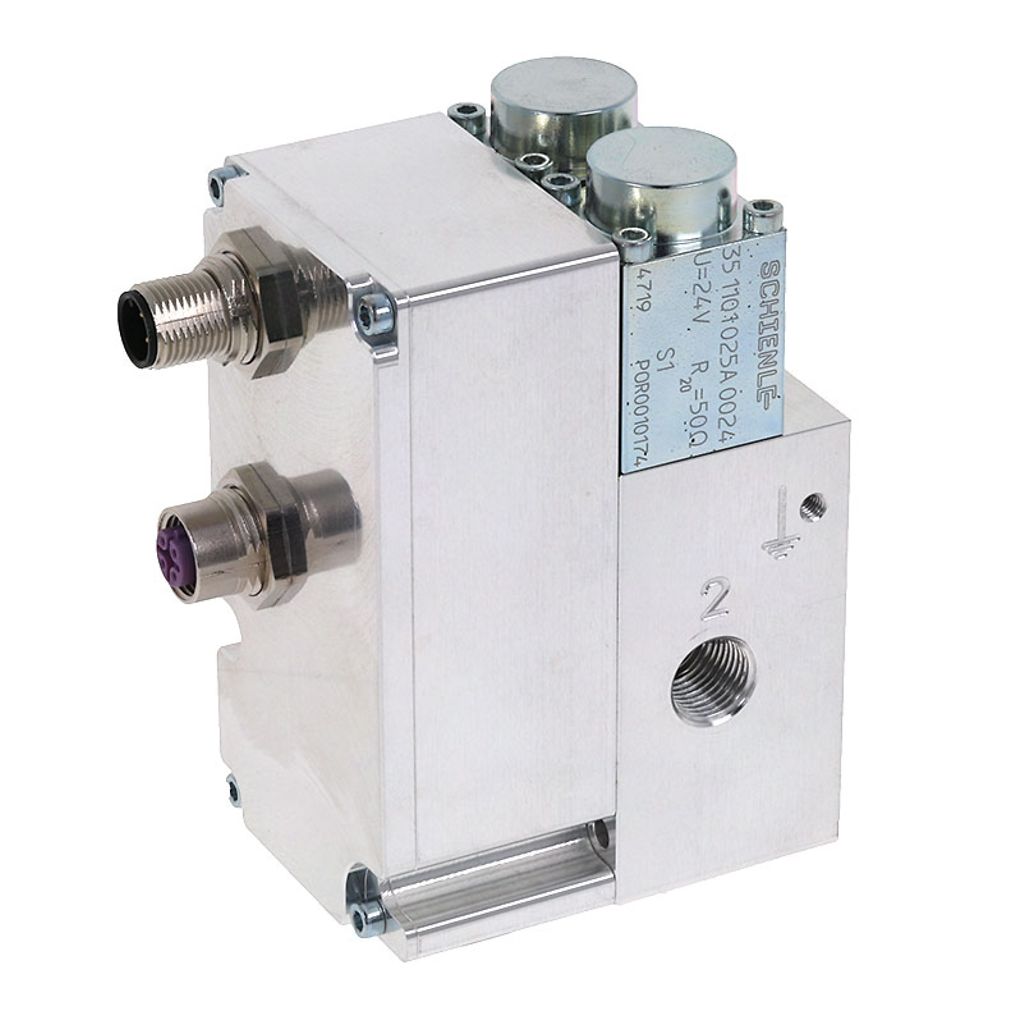

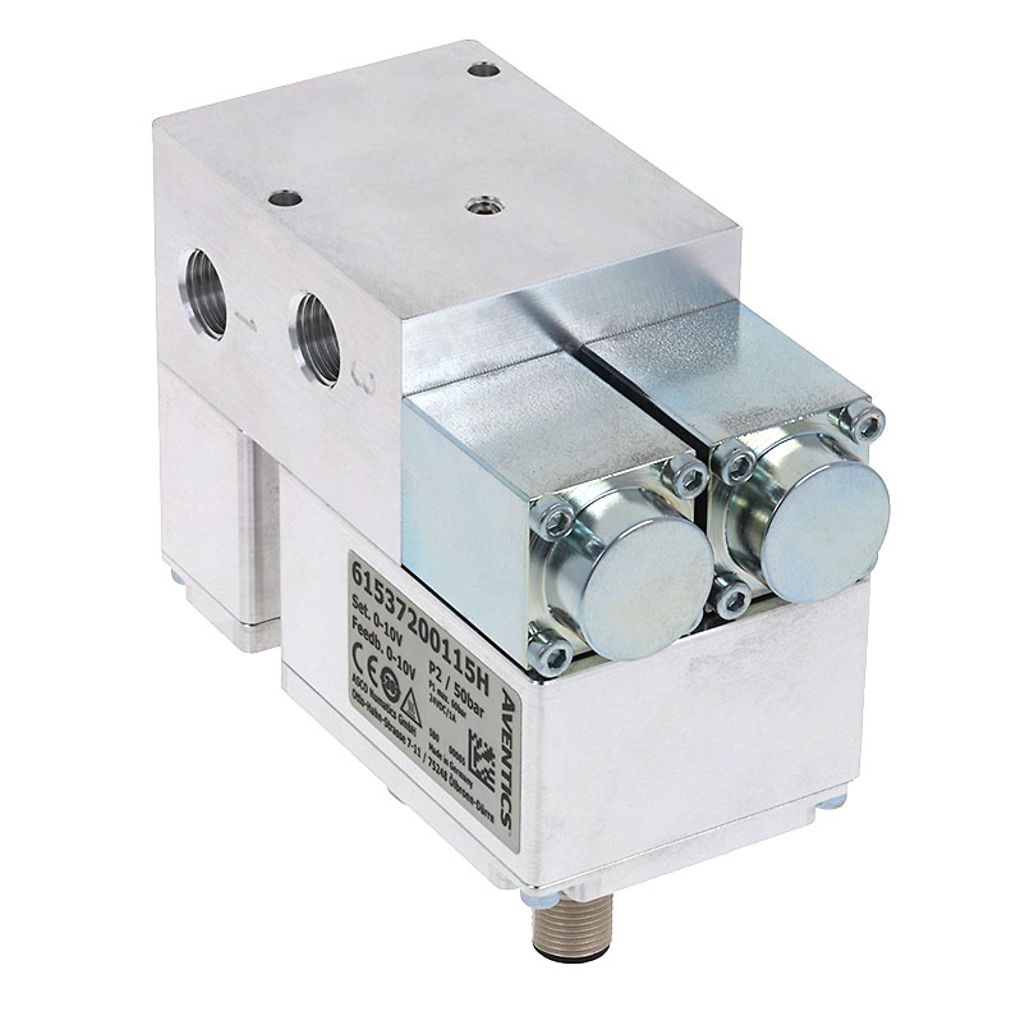

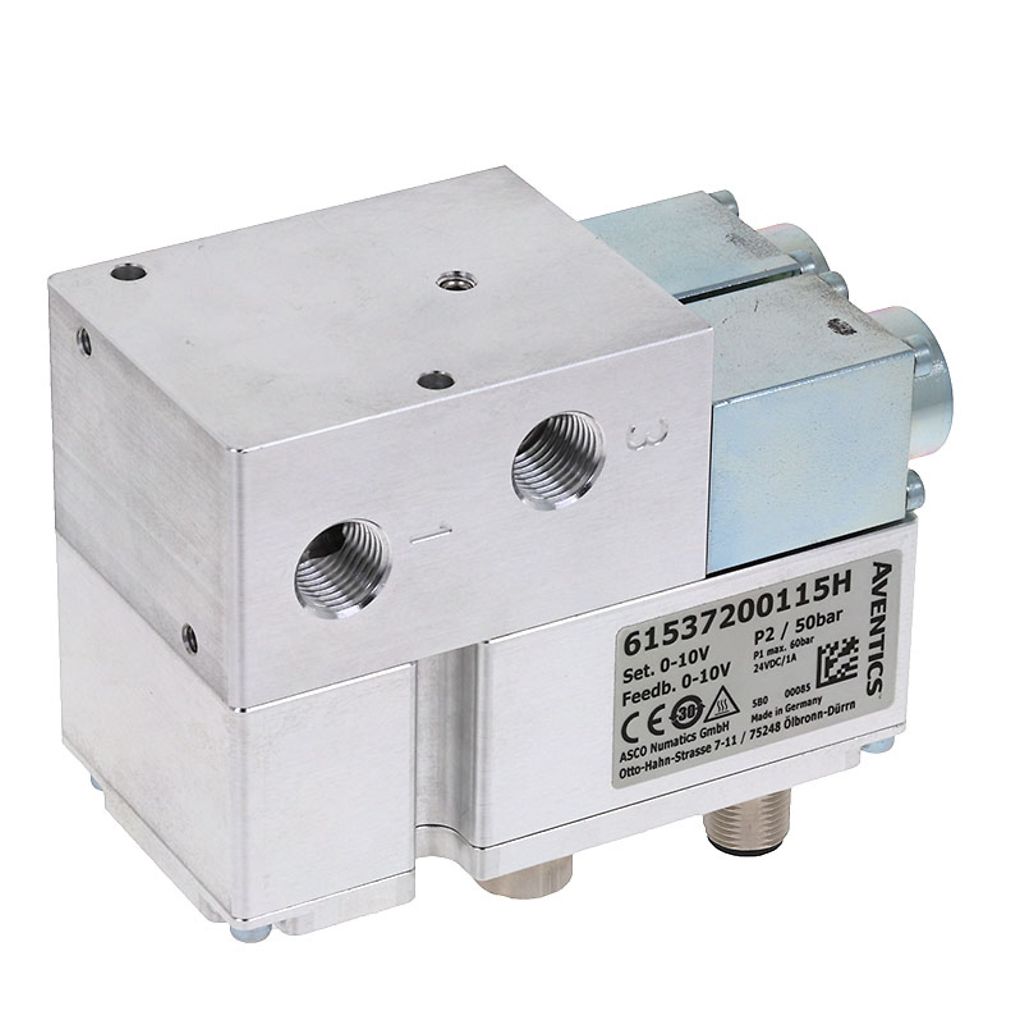

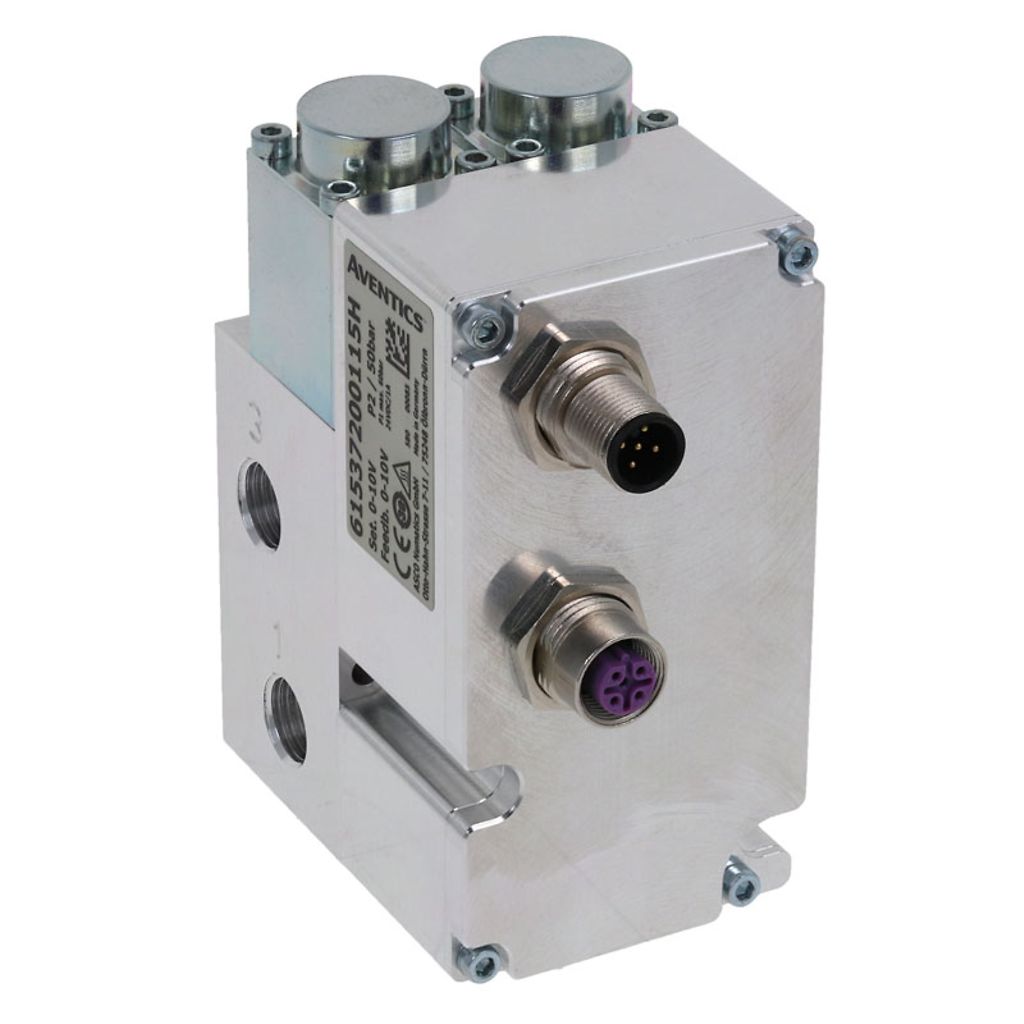

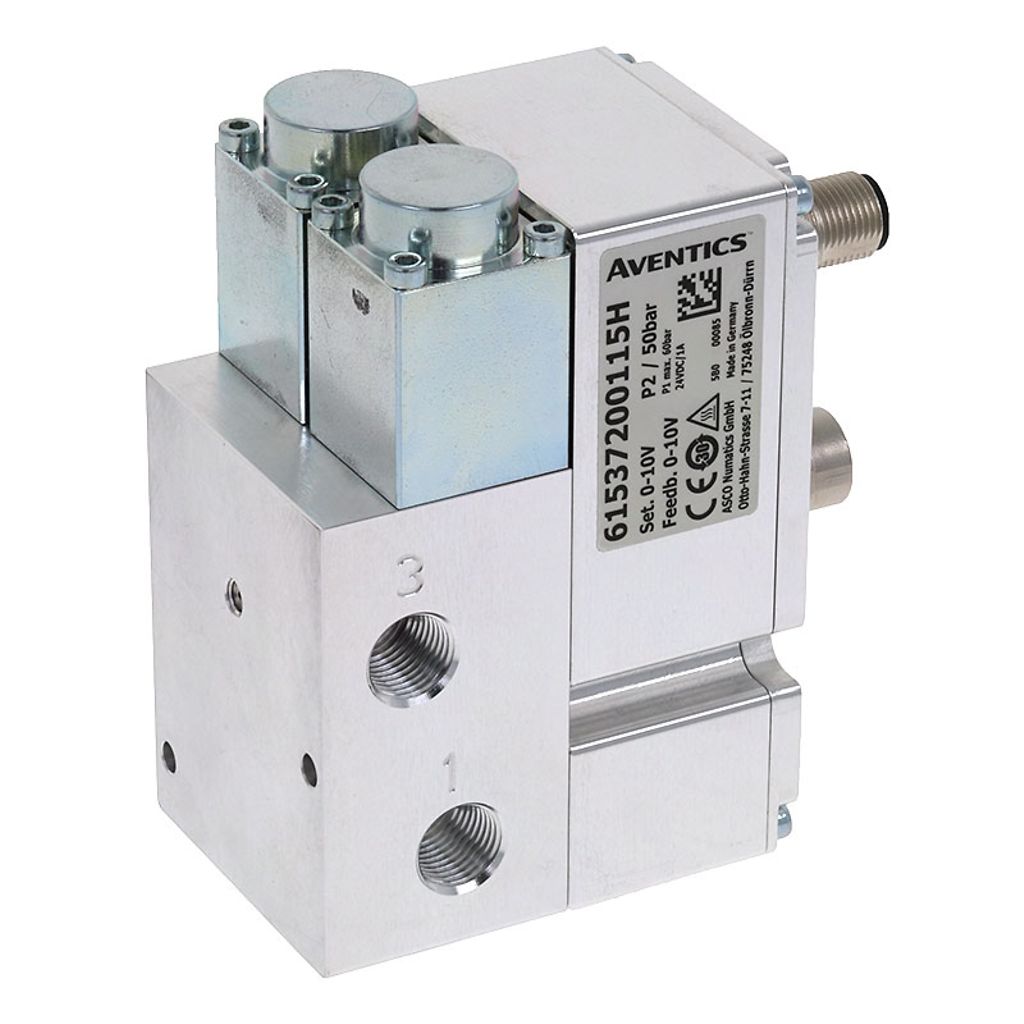

AVENTICS™ Series 615 Sentronic TWIN Proportional Control Valve

The AVENTICS Series 615 Sentronic TWIN is a 3-way proportional pressure control valve that accurately adjusts pressure to control air and inert gas media. The Series 615 is specified to control high pressure up to 80bar (1160psi) in combination with a small footprint. A special feature of the Series 615 Sentronic TWIN is its ATC software supplied for optimum adjustment of proportional control behavior over PC and viewing of setpoint and feedback signals. Other functions are valve diagnostics, parameter setting and maintenance.

Specifications

Function3 way - 3/2 Normally Closed or Normally Open
Valve ActuationProportional Coil
Port Size1/4”
Body MaterialAluminum
Inert PartsStainless Steel, Brass
SealingFPM, NBR, TPS
Voltage24 VDC
MediaAir, Inert Gases,
Port TypeG ISO228/1-G BSPP, NPTF, Pad Mount
Standard & RegulationsCE, IP65
