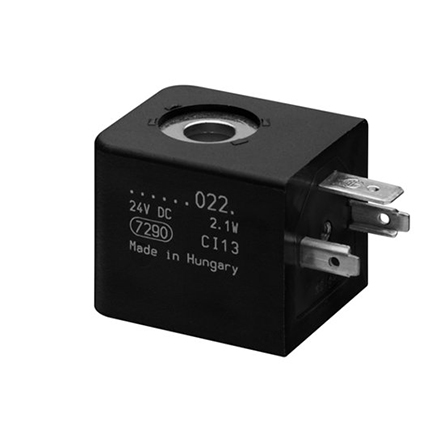

AVENTICS™ Coil, Series CO1 1824210223

Part Number:

AVENTICS-1824210223

Where to Buy
View CAD
View Datasheet
CO1-FORM_A-024DC-4,4W-30mm

Specifications

Coil width30 mm
Max. ambient temperature50 °C
Connector standardEN 175301-803, form A
Protection class according to EN 60529IP65
Duty cycle ED100 %
Compatibility index15
Electrical connection 2Plug
Number of poles3-pin
Operational voltage DC24 V
Voltage tolerance DC-10 % / +10 %
Voltage tolerance AC 50 Hz-10 % / +10 %
Voltage tolerance AC 60 Hz-10 % / +10 %
Power consumption DC4.4 W
Weight0.11 kg
HousingThermoplastic elastomer
