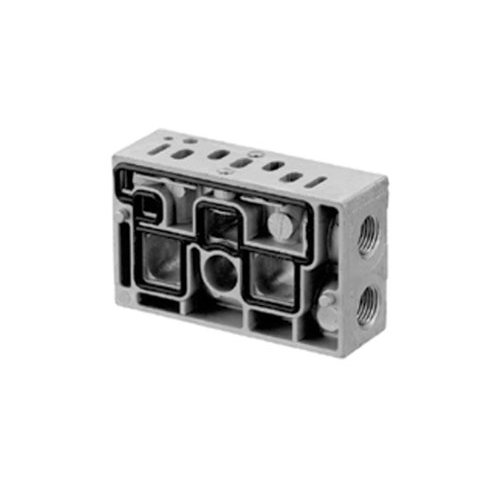

AVENTICS™ Base plate 1825503891

Part Number:

AVENTICS-1825503891

View Datasheet
CD02-BP-TYPEA-G1/8-SIDE

Specifications

TypeBase plate
Direction of pneumatic port (2,4)On the side
Compressed air connection outputG 1/8
Frame size18 mm
StandardsISO 15407-1
Min. working pressure-0.95 bar
Max. working pressure16 bar
Min. ambient temperature-15 °C
Max. ambient temperature70 °C
Min. medium temperature-15 °C
Max. medium temperature80 °C
MediumCompressed air
Weight0.15 kg
Material base plateDie cast zinc
Seal materialAcrylonitrile butadiene rubber
