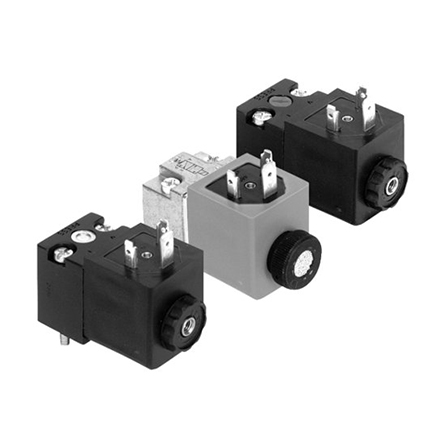

AVENTICS™ Pilot valve 5428110020

Part Number:

AVENTICS-5428110020

$122.01

Qty:
ADD TO CART
View Datasheet
24V-50/60HZ

Specifications

ActivationElectrically
Min. working pressure0 bar
Max. working pressure10 bar
Operational voltage AC at 50 Hz24 V
Voltage tolerance AC 50 Hz-20 % / +10 %
StandardsCNOMO / NFE 49-003-1
Pilot valve width30 mm
Holding power AC 50 Hz8 VA
Switch-on power AC 50 Hz10 VA
Min. ambient temperature-10 °C
Max. ambient temperature50 °C
MediumCompressed air
Protection class with connectionIP65
Duty cycle100 %
Weight0.17 kg
