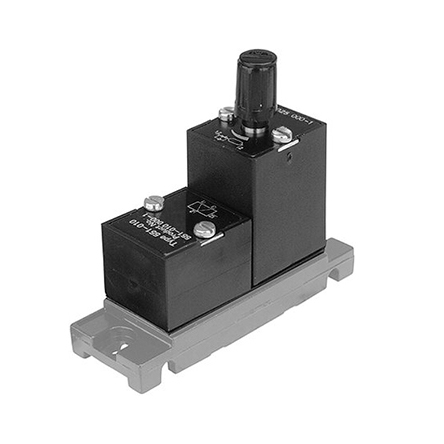

AVENTICS™ Pneumatic timer 5510260000

Part Number:

AVENTICS-5510260000

Where to Buy
View CAD
View Datasheet
551-026 F.F

Specifications

Time delay10 s
MediumCompressed air
Max. particle size5 µm
Min. ambient temperature-20 °C
Max. ambient temperature70 °C
Min. medium temperature-20 °C
Max. medium temperature70 °C
Min. oil content of compressed air0 mg/m³
Max. oil content of compressed air1 mg/m³
Logic functionclosing delay
Min. working pressure1 bar
Max. working pressure10 bar
Throttlewith throttle
Weight0.08 kg
Housing materialPolyoxymethylene
Seal materialAcrylonitrile butadiene rubber
