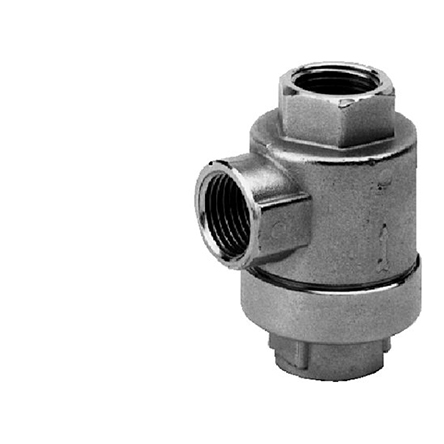

AVENTICS™ Quick exhaust valve, Series 573 5735040000

Part Number:

AVENTICS-5735040000

Where to Buy
View CAD
View Datasheet
ZZ99-G018-G018

Specifications

TypePoppet valve
MediumCompressed air
Compressed air connection inputG 1/8
Compressed air connection type 1Internal thread
Compressed air connection 2G 1/8
Compressed air connection type 2Internal thread
Port 3 (Exhaust)G 1/8
Compressed air connection type 3Internal thread
Nominal flow Qn 1 to 2680 l/min
Nominal flow Qn 2 to 31100 l/min
Min. working pressure0.8 bar
Max. working pressure10 bar
Min. ambient temperature-18 °C
Max. ambient temperature70 °C
Min. medium temperature-18 °C
Max. medium temperature70 °C
Weight0.08 kg
Housing materialBrass
Seal materialPolyurethane
