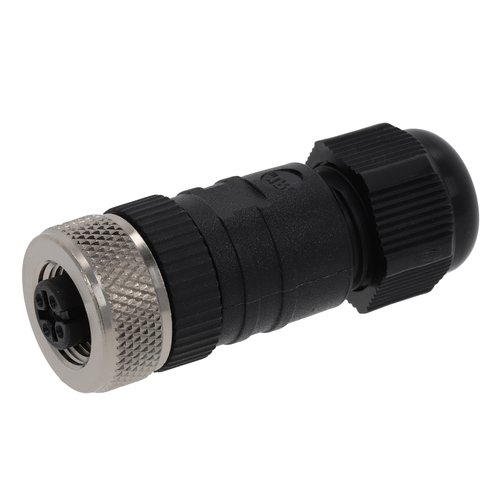

AVENTICS™ Round plug connector, Series CON-RD 8941054324

Part Number:

AVENTICS-8941054324

View Datasheet
CON-RD-FS-M12-4-SCREW

Specifications

TypeRound plug connectors
Connection typeScrews
min. suitable cable Ø4 mm
Shieldingunshielded
CertificatesUL (Underwriters Laboratories)
Min. ambient temperature-25 °C
Max. ambient temperature90 °C
Max. current4 A
Protection classIP67
Operational voltage48 V AC/DC
Electrical connection 1, typeSocket
Electrical connection 1, thread sizeM12x1
Electrical connection 1, number of poles4-pin
Electrical connection 1, codingA-coded
Cable exitstraight
Cable exit angle180°
Weight0.029 kg
Housing materialPolybutyleneterephthalate
Seal materialFluorocarbon caoutchouc
