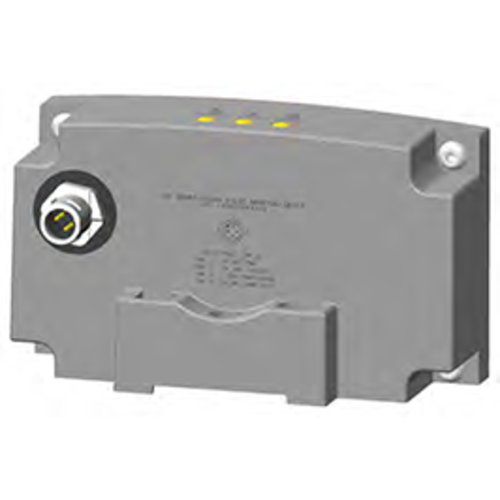

Part Number:
Specifications
| Type | class A |
| Fieldbus protocol | IO-Link |
| Note | Central fieldbus connection without I/O function, Power supply plug M12x1, 4-pin |
| Signal connection E/A type | Plug |
| Signal connection E/A thread size | M12 |
| Signal connection E/A number of poles | 4-pin |
| Signal connection E/A coding | A-coded |
| Min. ambient temperature | -10 °C |
| Max. ambient temperature | 50 °C |
| Max. number of solenoid coils | 32 |
| Max. number of valve positions | 32 |
| Operational voltage electronics | 24 V DC |
| Electronics voltage tolerance | -10 % / +10 % |
| Current consumption electronics | 0.04 A |
| Operating voltage, actuators | 24 V DC |
| Total output for valves | 4 A |
| Protection class | IP65 |
| Diagnosis | Short circuit, Overvoltage |
| Weight | 0.298 kg |
| Housing material | Die-cast aluminum |
