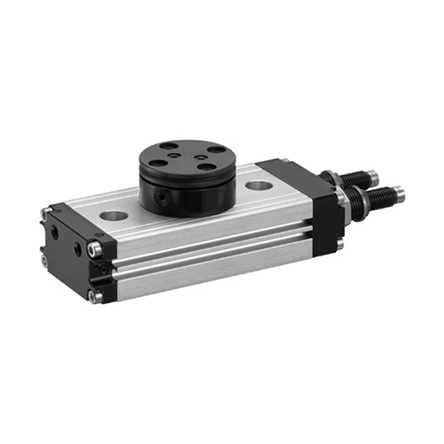

AVENTICS™ Rotary Compact Module, Series RCM-SH R412000394

Part Number:

AVENTICS-R412000394

$2,357.72

Qty:
ADD TO CART
View Datasheet
RCM-25-180-SH-AP-00

Specifications

Diameter25 mm
Compressed air connectionM5
Magnetic pistonwith magnetic piston
Rotary compact module versionDouble piston with rack
Easy2Combinecapable
Frame sizeRCM-25
air ductwith air duct
Number of air ducts4
Theoretical torque at6 bar
Min. swivel times0.6 s
Air consumption per rotation77.5 cm³
Max. permissible axial bearing load1160 N
Radial shaft load700 N
Max. permissible mass moment of inertia450 kg cm²
Theoretical torque6.5 Nm
Repetitive precision0.05 °
Cushioninghydraulic
Cushioningnon-adjustable
Min. angle of rotation0 °
Max. angle of rotation180 °
Min. working pressure2 bar
Max. working pressure8 bar
Min. ambient temperature5 °C
Max. ambient temperature60 °C
Min. medium temperature5 °C
