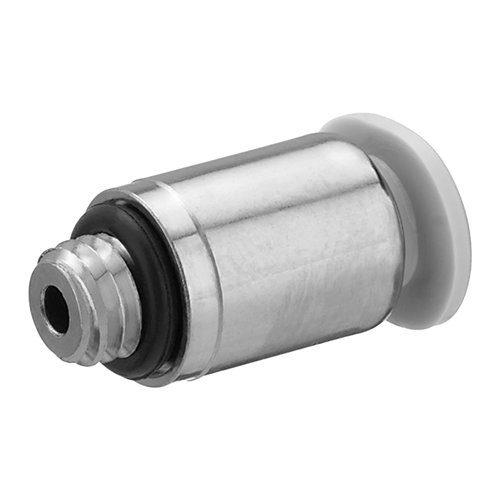

AVENTICS™ Series QR1-S-MIN Mini R412005269

Part Number:

AVENTICS-R412005269

Where to Buy
View CAD
View Datasheet
QR1-S-MIN-M006-DA03

Specifications

Fitting typeStraight fitting with hexagon socket
Compressed air connection typeExternal thread
Port GM6
Compressed air connection type 2Push-in fitting
Port DØ 3
TypeQR1-S-MIN
Min. working pressure-0.95 bar
Max. working pressure10 bar
Min. ambient temperature0 °C
Max. ambient temperature60 °C
Delivery quantity25 piece
Weight0.0042 kg
Housing materialBrass
Seal materialAcrylonitrile butadiene rubber
Material tooth lock washerStainless Steel
Material release ringPolyoxymethylene
Material release ring holderDie cast zinc, Brass
Material threadBrass
