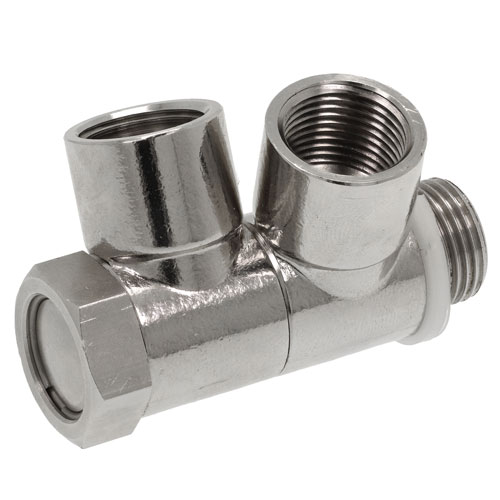

AVENTICS™ Pilot-operated non-return valve, Series NR02 R412029342

Name: AVENTICS R412029342
SKU: AVENTICS-R412029342

Part Number:

AVENTICS-R412029342

View Datasheet

NON-RETURN VALVE G3/8

Specifications

Note	G 3/8 ... G 1/2
Type	Poppet valve
Mounting	thread-in
Compressed air connection	G 3/8
Compressed air connection type 2	External thread
Opening pressure of valve	0.3 bar
Min. working pressure	0.5 bar
Max. working pressure	10 bar
Min. ambient temperature	-20 °C
Max. ambient temperature	80 °C
Medium	Compressed air
Weight	0.169 kg
Housing material	Brass, nickel-plated
Seal material	Nitrile butadiene rubber
