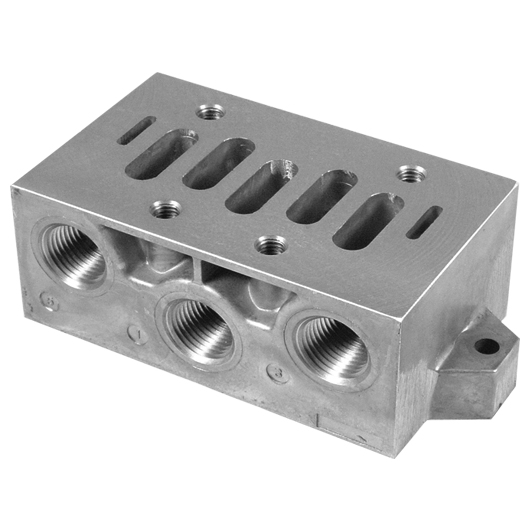

AVENTICS™ Base plate R432015309

Part Number:

AVENTICS-R432015309

$56.77

Qty:
ADD TO CART
View Datasheet

Specifications

TypeBase plate
Direction of pneumatic port (1)On the side
Compressed air connection input3/4-14 PTF
Compressed air connection output3/4-14 PTF
Direction of pneumatic port (3,5)On the side
Port exhaust3/4-14 PTF
Exhaust typePorts separated
Exhaust (3,5)With directional exhaust (3/5)
Frame sizeISO 3
StandardsISO 5599-1
Min. working pressure3.5 bar
Max. working pressure10 bar
Min. ambient temperature10 °C
Max. ambient temperature200 °C
Min. medium temperature10 °C
Max. medium temperature120 °C
MediumCompressed air
Mounting screwM8
Weight0.54 kg
Material base plateDie-cast aluminum
