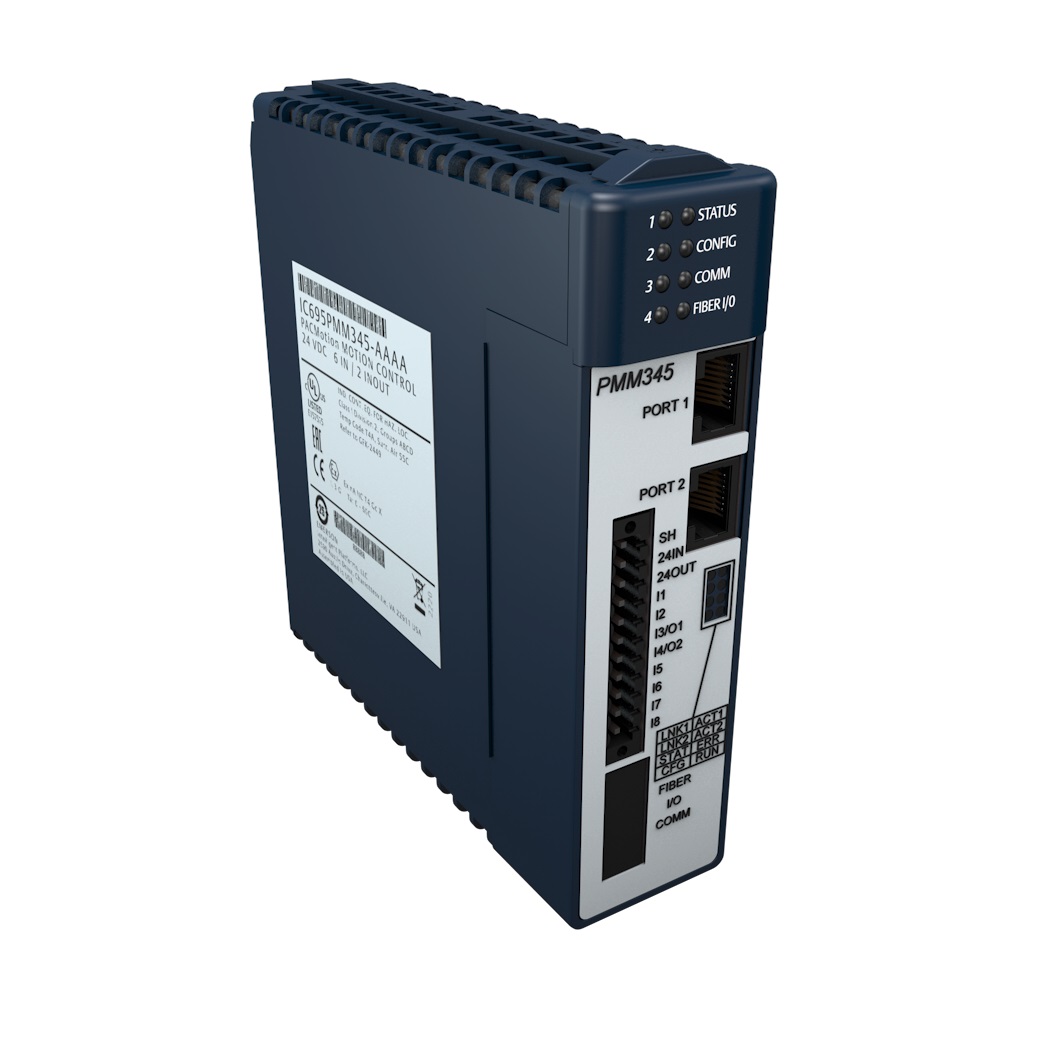

PACMotion High Speed Servo Motion Controller

Contact Sales

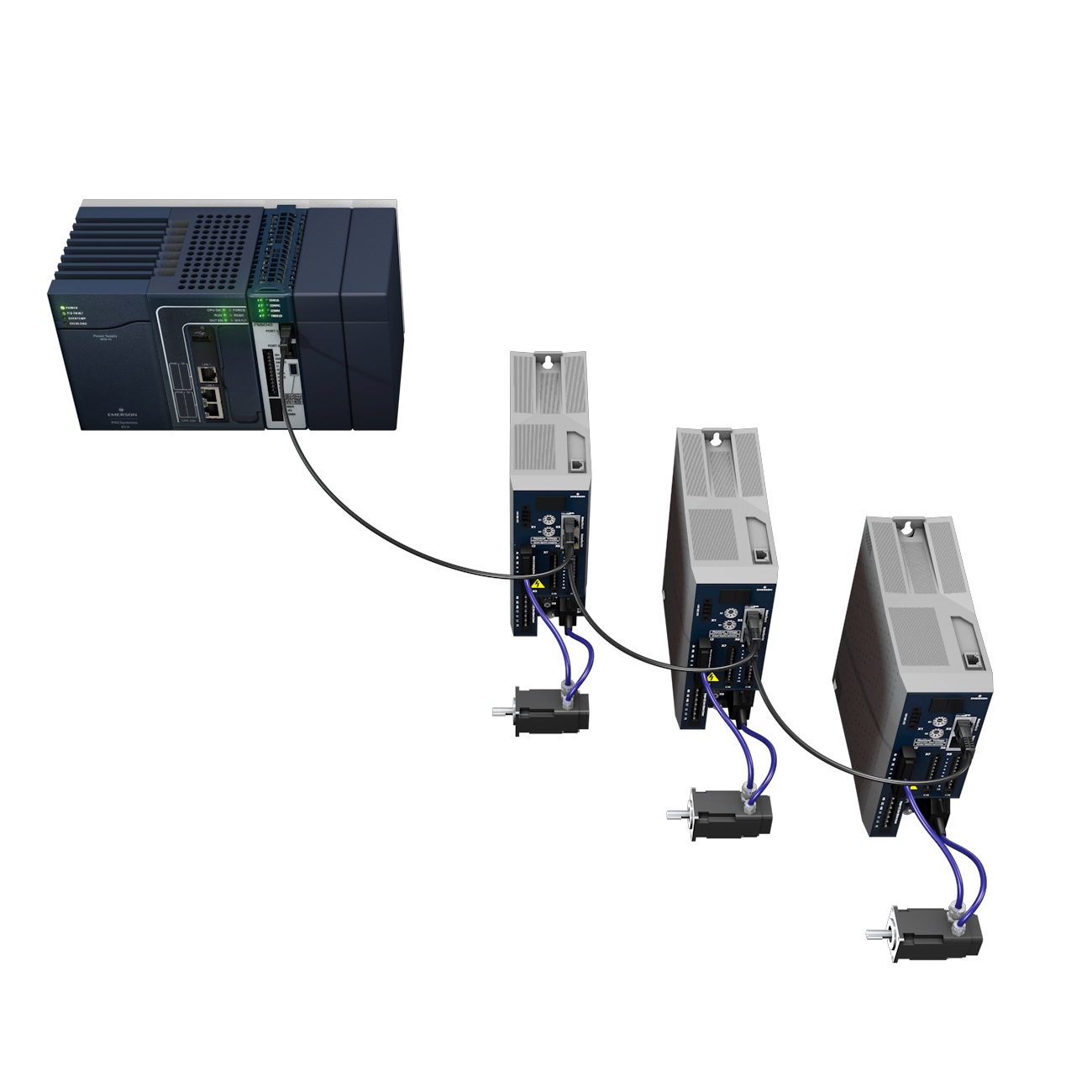

Dedicated processor which enables PACSystems RX3i servo motion control and coordinates with PACMotion Servo Drives to deliver integrated, scalable, and precise motion control

Specifications

Part NumberIC695PMM345
Motion Path Planning Update Rate1ms
Position Loop Update Rate0.5ms
Communications Loop Update Rate0.25ms
Controlled Axes / Module4
Master Axes / Module1
Servo Command InterfaceEtherCAT
Maximum Axes per RX3i40 + 10 master axes
Feedback TypeIncremental/Absolute Serial Encoder
ConnectorPlug-on Screw Terminal
Floating Point SupportYes
Cam Profiles per Module256 at one time
Synch/Delayed StartUp to 8 axes
High Speed Position Capture2 Inputs per axis
CertificationsATEX, CE, China Rohs, WEEE
