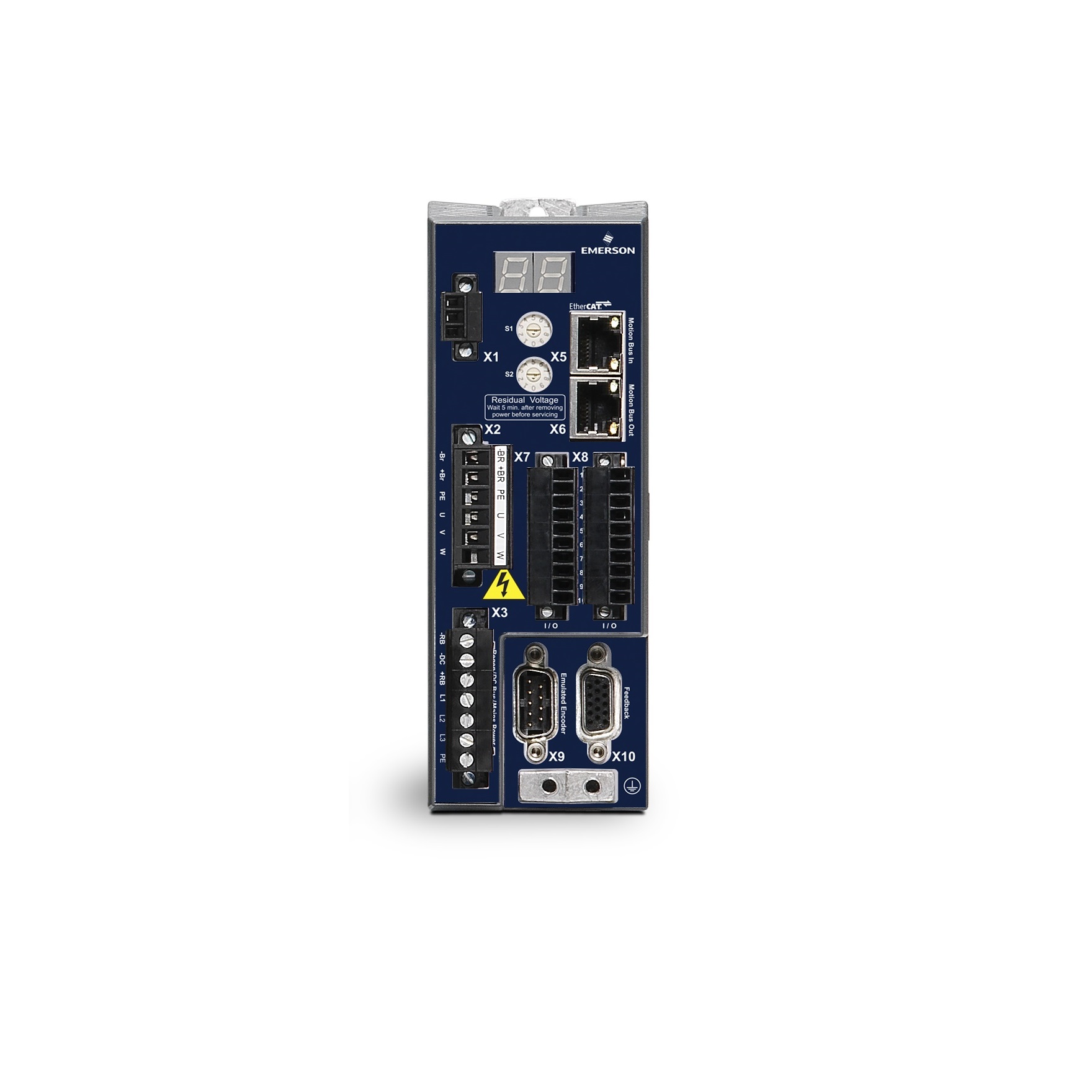

PACMotion High Speed Servo Drive, 3A, 120/240 V

Compact and powerful drive designed for synchronous servomotors with advanced closed-loop control of torque, speed, and position

Specifications

Part Number	IC830DP00306-NBEC
Drive Continuous Output Power	1,100 Watts
Rated Supply Voltage	120/240 V
Control Logic, Supply Voltage	24 V
Rated Output Current (RMS value +/-3%)	0.125
Peak Output Current (+/-3%)	0.375
Peak Time	5s
Current Loop Bandwidth Max.	2.5 to 4 kHz
Velocity Loop Bandwidth Max.	0 to 1000 Hz
Position Loop Bandwidth Max.	1 to 250 Hz
Update Rate	1.5 MHz
Weight (Standard Width)	1.1 kg
Weight (Extended Width)	1.3 kg
Height, without Connectors	168 mm
Height, with Connector	200 mm
Standard Width Front / Back	54 / 59 mm
Extended Width Front/Back	84 / 89 mm
Depth, without Connectors	156 mm
Depth, with Connectors	185 mm
