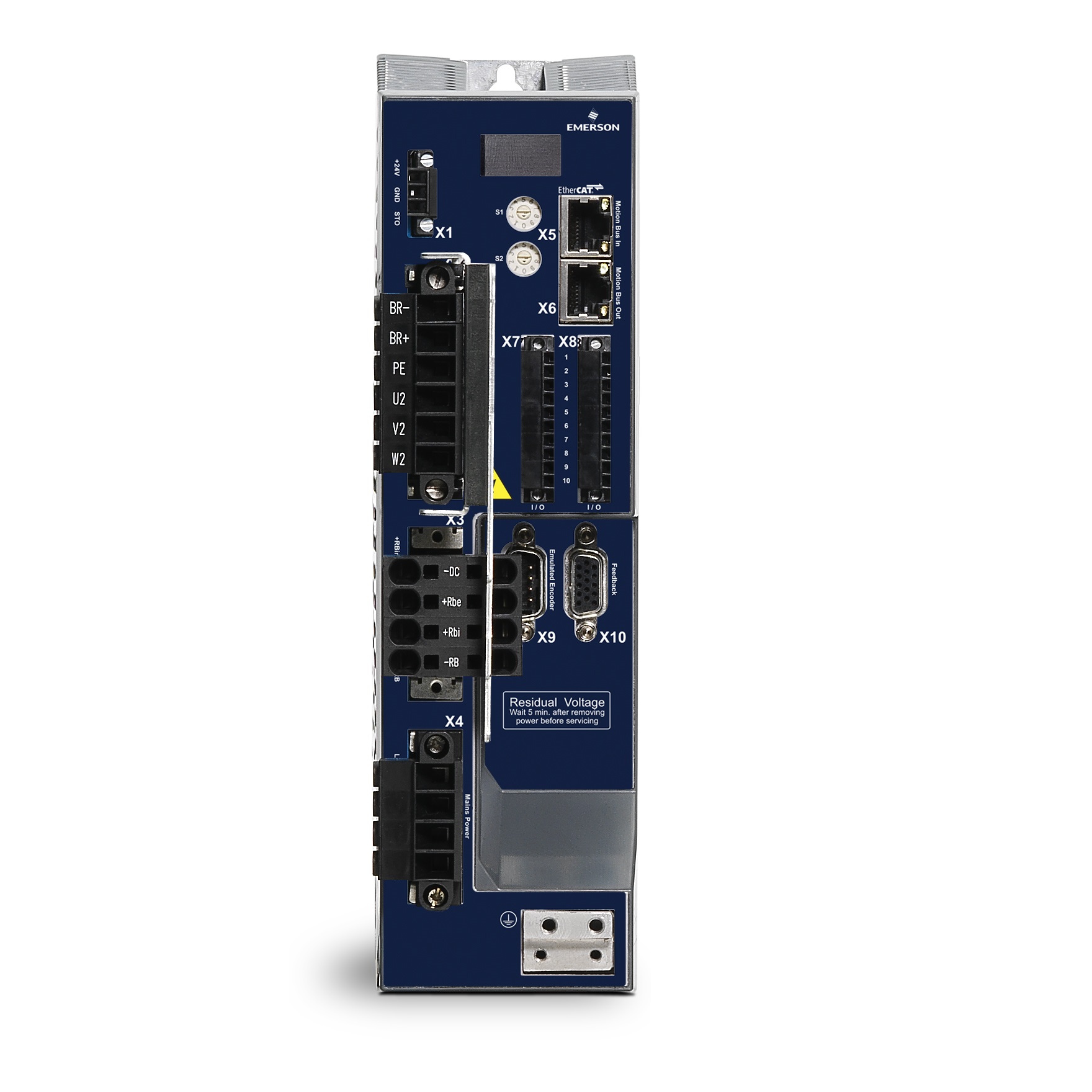

PACMotion High Speed Servo Drive, 12A, 240/480 V

Compact and powerful drive designed for synchronous servomotors with advanced closed-loop control of torque, speed, and position

Specifications

Part Number	IC830DP01207-NBEC
Drive Continuous Output Power	8,000 Watts
Rated Supply Voltage	240/480 V
Control Logic, Supply Voltage	24 V
Rated Output Current (RMS value +/-3%)	0
Peak Output Current (+/-3%)	30 A
Peak Time	5s
Current Loop Bandwidth Max.	2 to 3 kHz
Velocity Loop Bandwidth Max.	0 to 600 Hz
Position Loop Bandwidth Max.	1 to 250 Hz
Update Rate	1.5 MHz
Weight (Standard Width)	2.7 kg
Weight (Extended Width)	2.9 kg
Height, without Connectors	306 mm
Height, with Connector	340 mm
Standard Width Front / Back	99 / 105 mm
Extended Width Front/Back	99 / 105 mm
Depth, without Connectors	228 mm
Depth, with Connectors	< 265 mm
