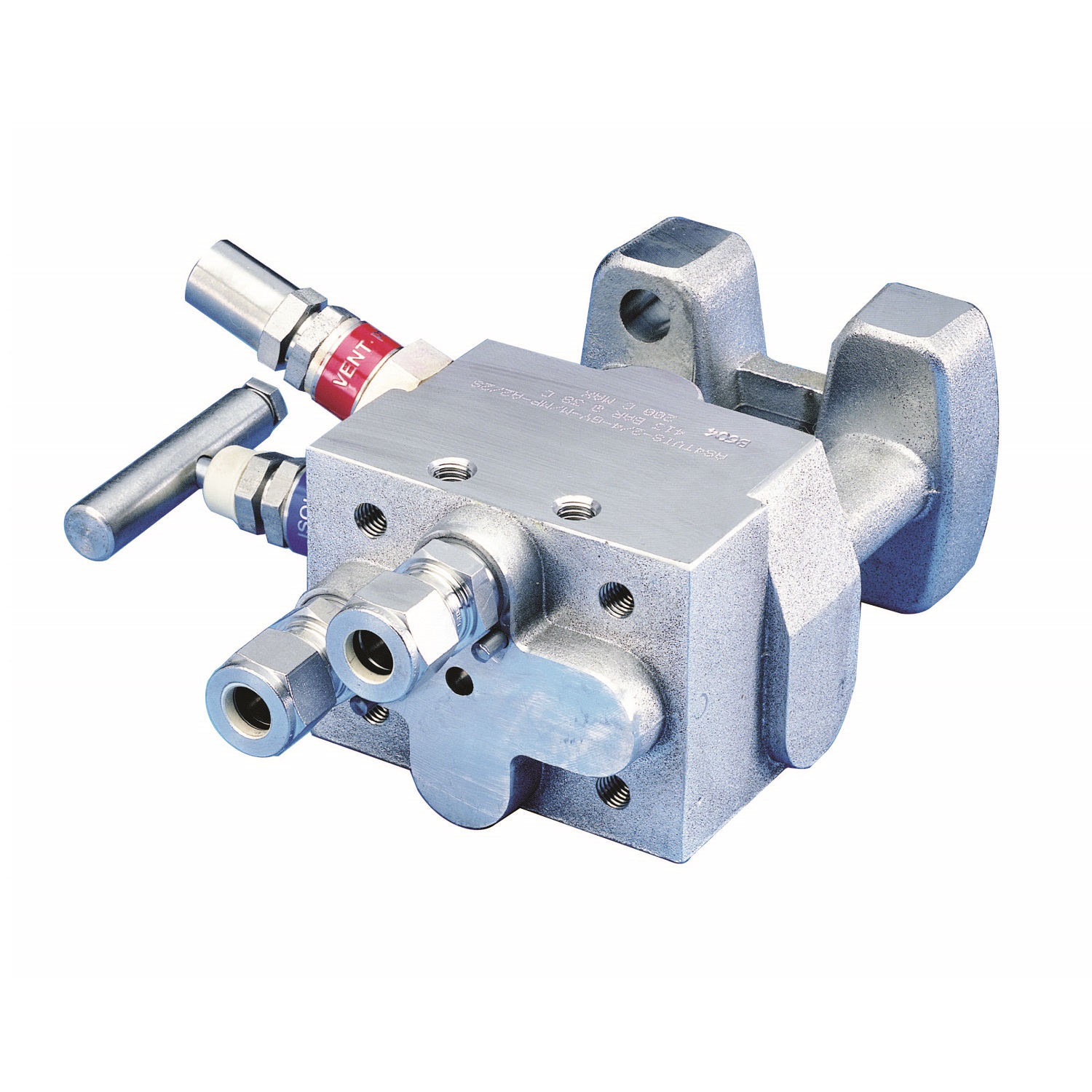

AGI™ Series AS4 TVIS 2/4 Manifold

A single isolate/vent block for applications with pressure transmitters of the differential body design.

Specifications

MaterialsAISI 316 SS
Connections InstrumentFlanged for direct mounting 21/8 (54 mm) centres and in accordance with DIN 19231 pt 2
ProcessG1/4" parallel threaded
VentG1/4" parallel threaded
Pressure (max)413 bar at 38°C
Temperature (max)PTFE packing: +200 °C (+392 °F)<br>Graphite packing: +550 °C (+1022 °F)
