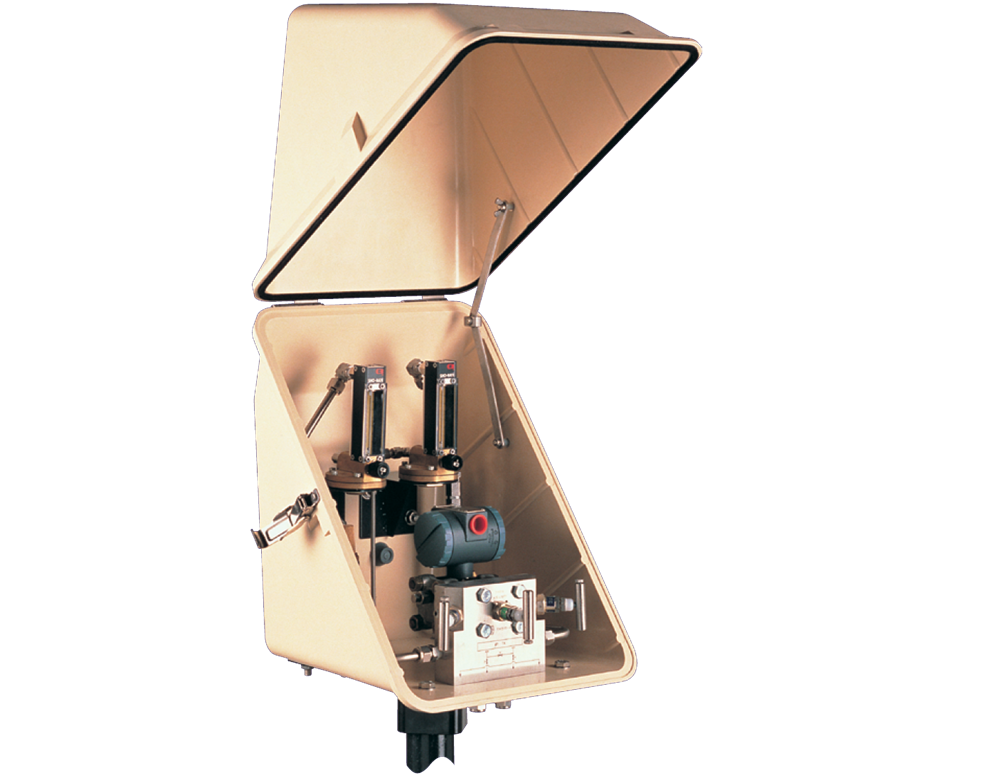

AGI™ Enclosure Systems

Features

• Body and lid in tough glass-filled sheet molded polyester for maximum resistance to extreme temperatures and environmental conditions.
• Optional viewing window allows instrument inspection without opening the enclosure.
• Sealing strip ensures the enclosure is completely weatherproof to IP66.
• Optional 20 mm molded isocyanurate foam insulation provides instrument protection down to -94°F (-70°C).
• Enclosure manifolds designed to mount in the base or back of the enclosure, eliminating the need for internal mounting brackets or pipe stands.
• Process and vent connections made on the outside directly into the manifold, remove the need for internal pipework, compression fittings and bulkheads.
• 2" NB (50 mm) mounting collar with fixing bolt enables easy mounting directly onto a pipe stand.
• Steam or electric heating systems can be custom designed. Precise enclosure temperature can be maintained with a wide range of heating accessories.
• 316 stainless steel fasteners and fittings prevent corrosion in harsh environments.
• Anti static enclosures available to suit specific applications.
• Choice of low or high back-mounted manifold mounting options for instruments above (for liquid applications) or below the manifold (for gas applications).
