TESCOM Anderson Greenwood Instrumentation Series M25 Instrument Gauge Valve M251VIC-44
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| Carbon Steel | 1/2" FNPT x 1/2" MNPT | 10000 psig | 500°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series M25 Instrument Gauge Valve M251VIC-44F
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| Carbon Steel | 1/2" MNPT x 1/2" FNPT | 10000 psig | 500°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series M25 Instrument Gauge Valve M251VIC-46
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| Carbon Steel | 1/2" FNPT x 3/4" MNPT | 10000 psig | 500°F | 3/16" |

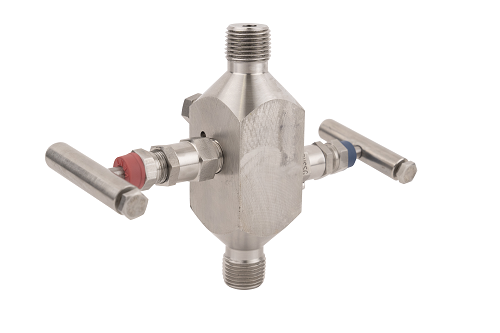

TESCOM Anderson Greenwood Instrumentation Series M25 Instrument Gauge Valve M251VIC-4M
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| Carbon Steel | 1/2" MNPT x 1/2" MNPT | 10000 psig | 500°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series M25 Instrument Gauge Valve M251VIS-44
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| 316SS | 1/2" FNPT x 1/2" MNPT | 10000 psig | 500°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series M25 Instrument Gauge Valve M251VIS-44-SG
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| 316SS | 1/2" FNPT x 1/2" MNPT | 10000 psig | 500°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series M25 Instrument Gauge Valve M251VIS-44C-SG
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| 316SS | 1/2" FNPT x 1/2" MSW | 10000 psig | 500°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series M25 Instrument Gauge Valve M251VIS-44F
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| 316SS | 1/2" MNPT x 1/2" FNPT | 10000 psig | 500°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series M25 Instrument Gauge Valve M251VIS-44F-AMS
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| 316SS | 1/2" MNPT x 1/2" FNPT | 10000 psig | 500°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series M25 Instrument Gauge Valve M251VIS-44F-SG
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| 316SS | 1/2" MNPT x 1/2" FNPT | 10000 psig | 500°F | 3/16" |
