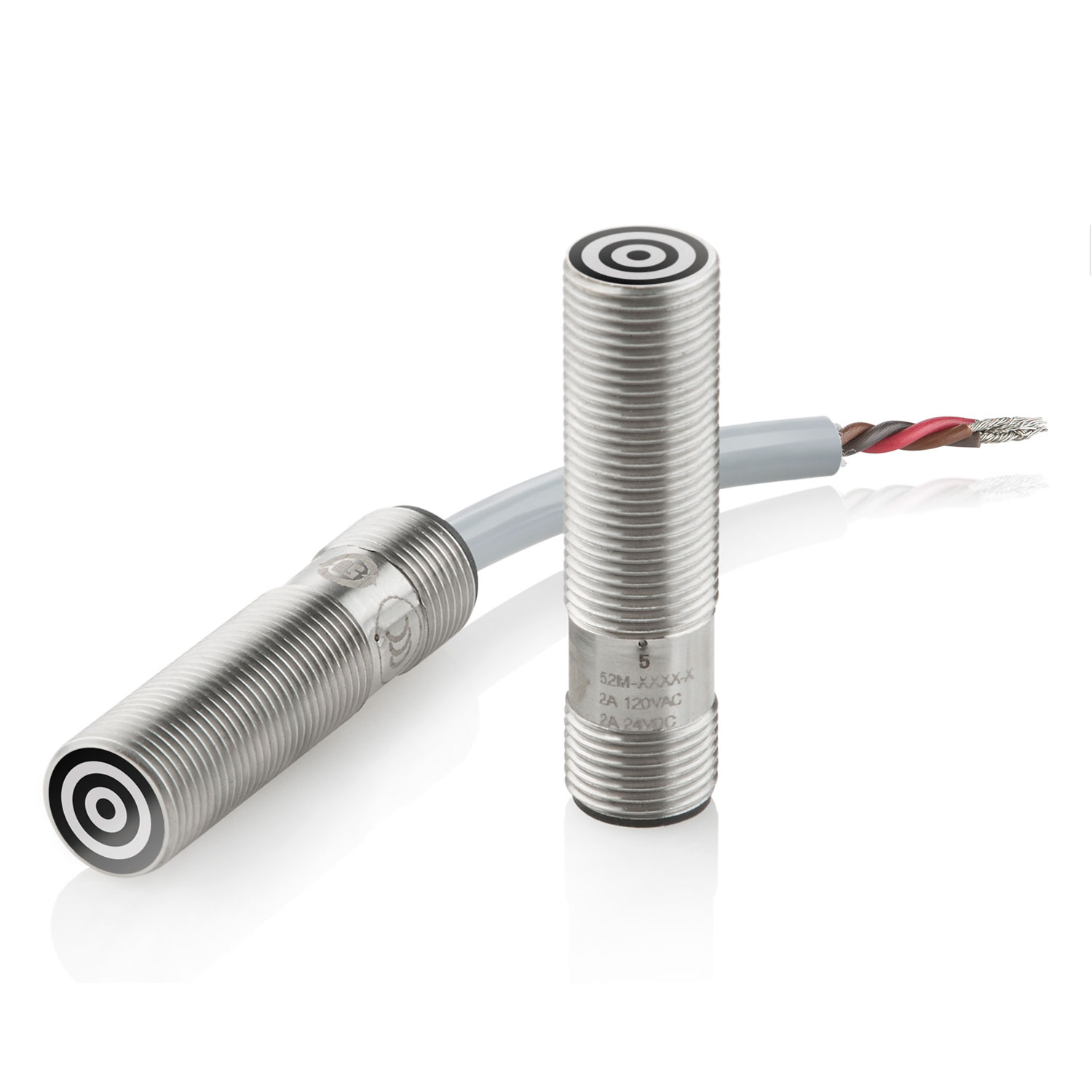

TopWorx™ GO™ Switch Model 52M

TopWorx™ 52M is a low profile, dry contact, proximity sensor with a 316L sensing face in an industry standard 12mm package. The 52M does not require power to operate and is polarity insensitive with zero need to specify NPN or PNP circuits and maintains the ability to be a plug-and-play replacement for inductive proximity sensors. Also, the 52M can handle a wide current range from 5mA to 2A @ 24VDC and a wide temperature range from -40°F to 212°F (-40°C to 100°C).

Specifications

Nominal sensing distance1.5 mm (0.060 in)
Hysteresis0.2 mm (0.008 in)
Actuating elementFerrous metal or magnet (N)
DC electrical rating2A @ 24 VDC
AC electrical rating2A @ 120 VAC
Max initial contact resistance0.5 Ohm
Max switching frequency10 Hz
Operating temp range-40°C to 100°C (-40°F to 212°F)
Enclosure material316L stainless steel
