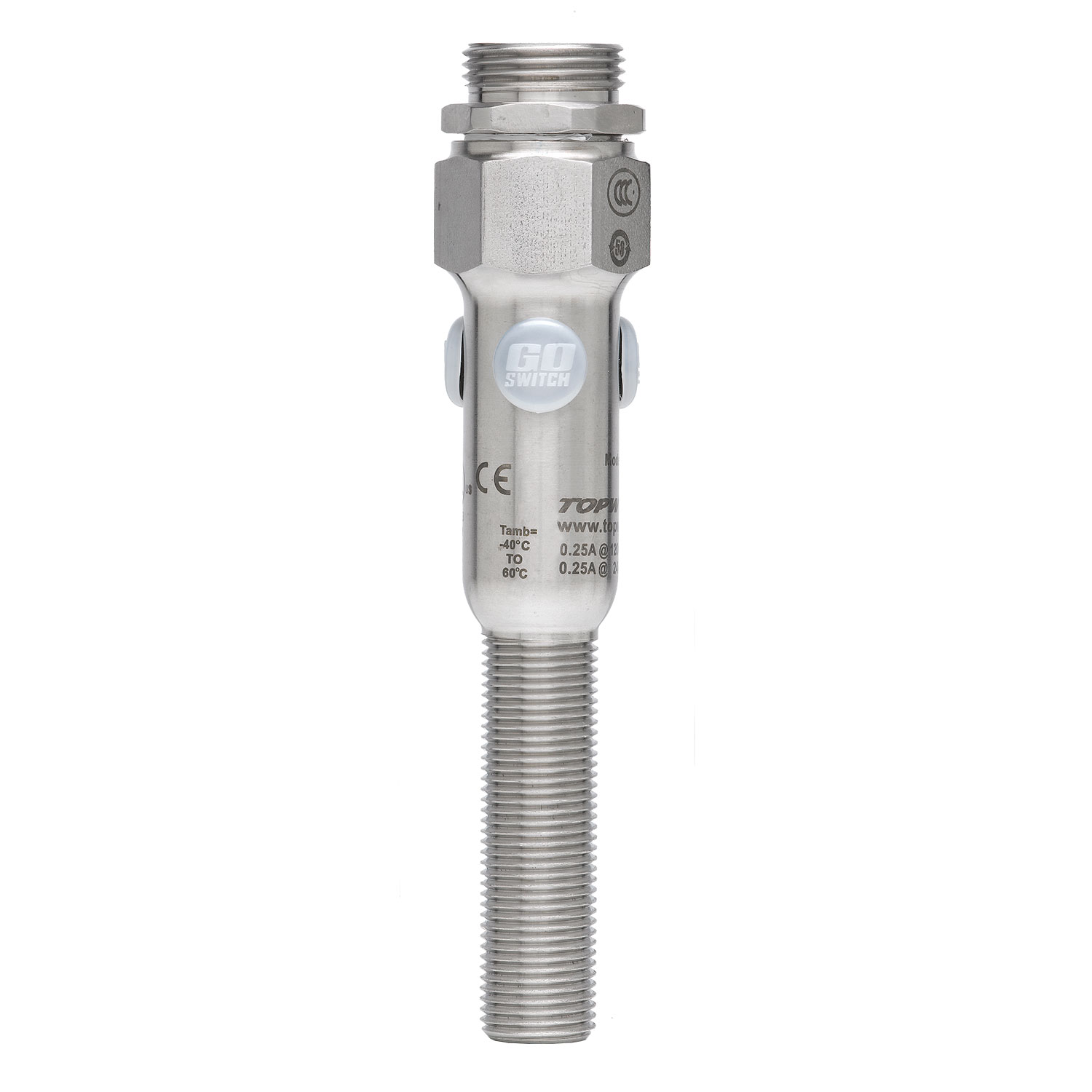

• Go_Switch_7L--124338

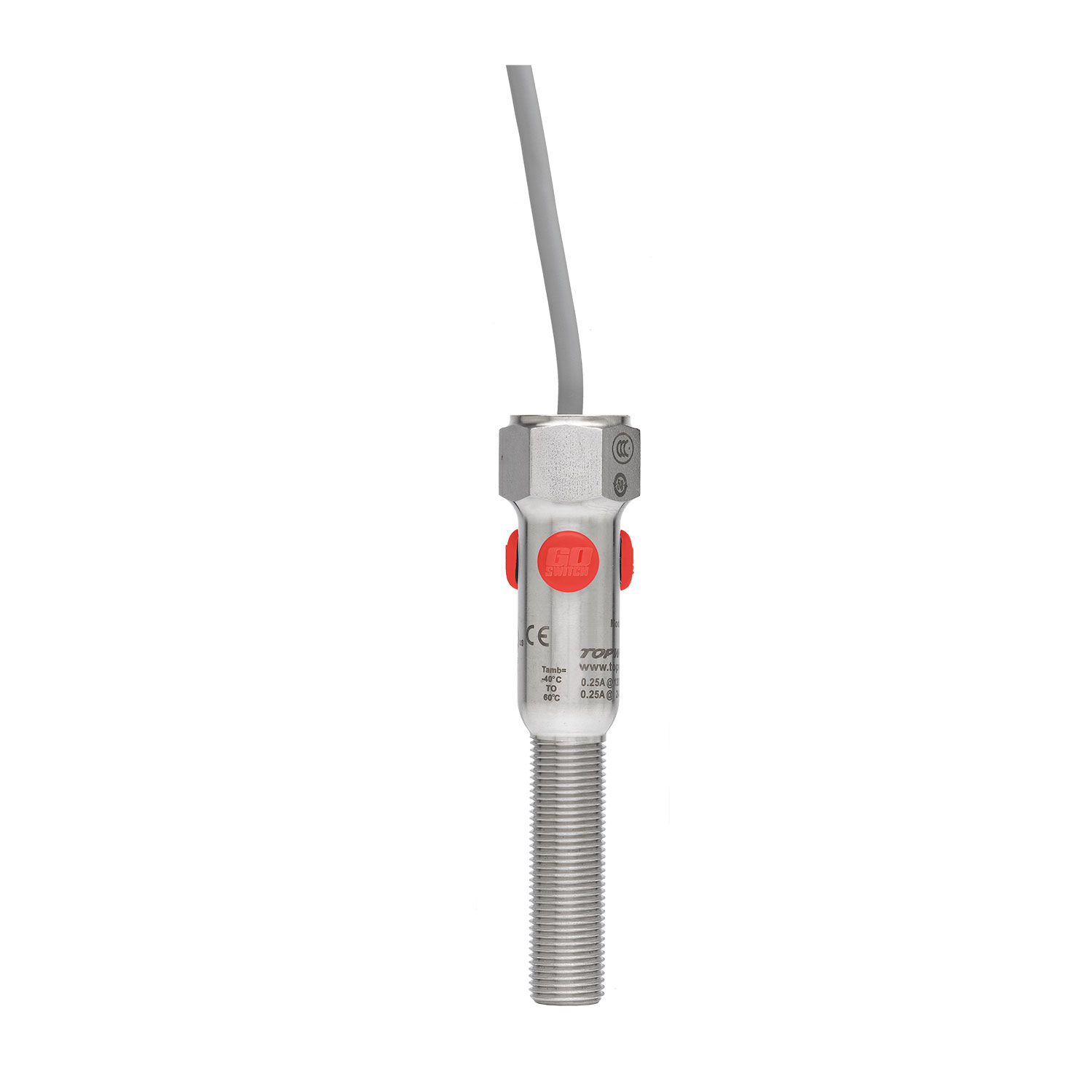

  • topworx-series-7L-switch-cabling--5386070

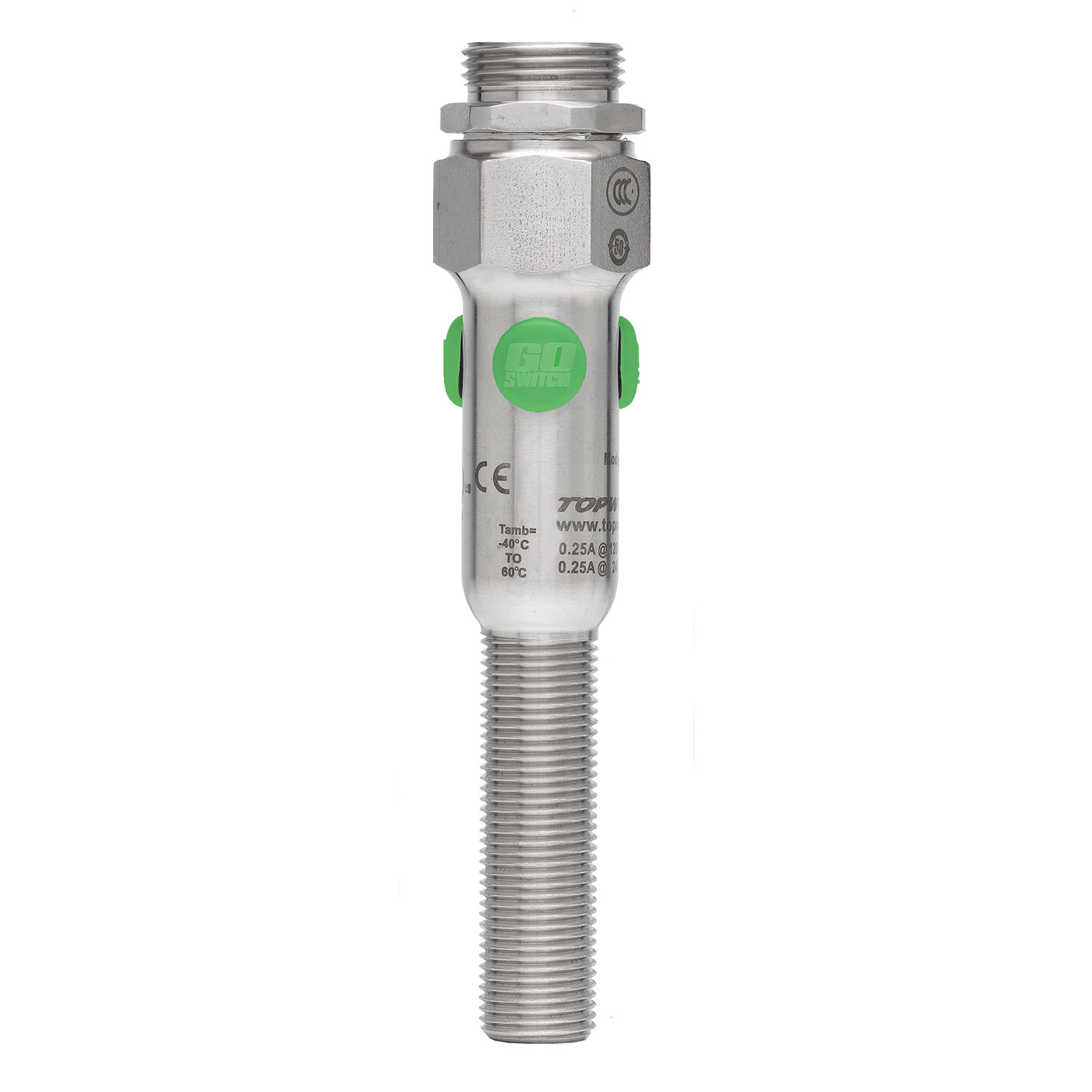

  • topworx-series-7L-switch-green-LED--5386076

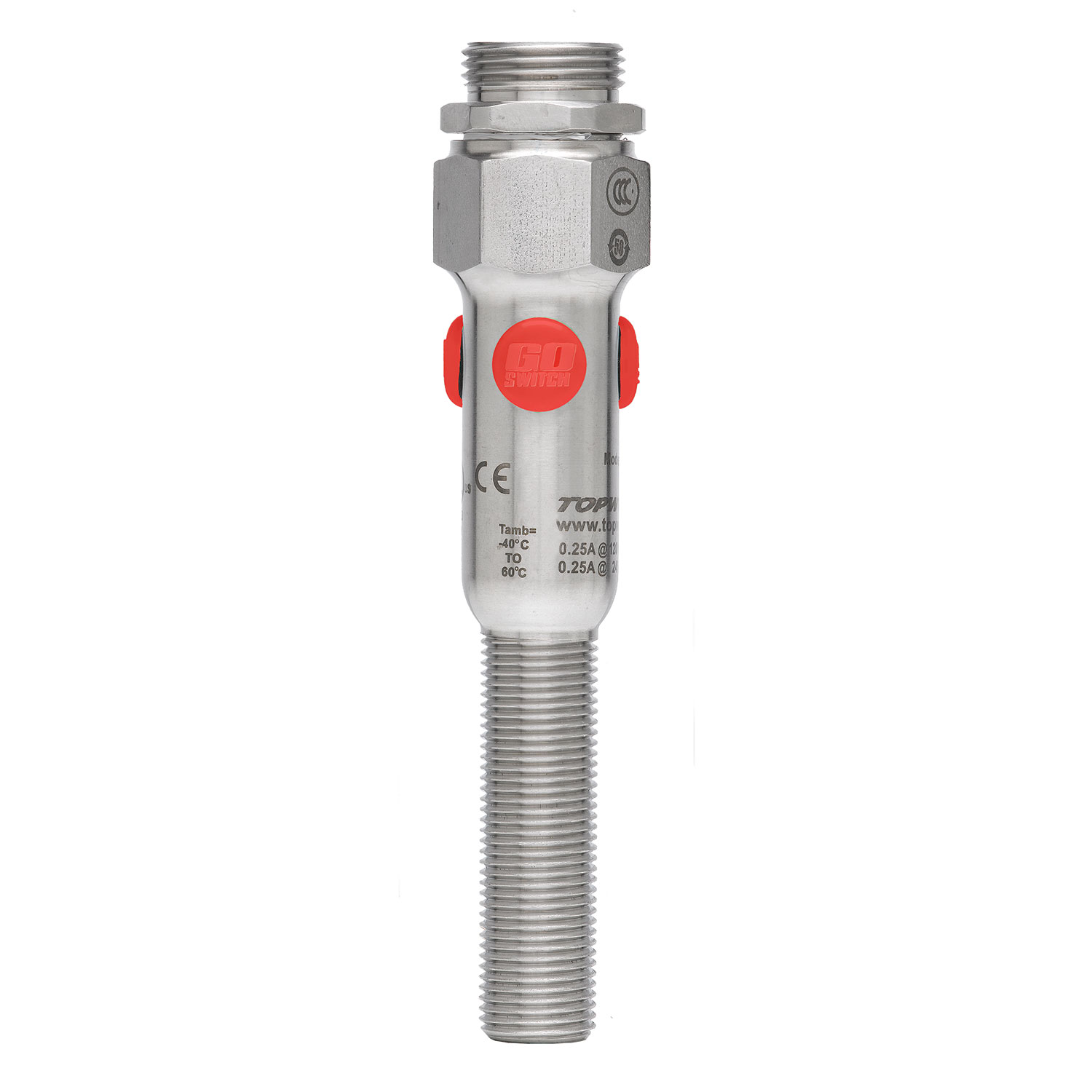

  • topworx-series-7L-switch-red-LED--5386078
Main Image
Main Image

TopWorx™ GO™ Switch Model 7LY with Dual Red/Green LED Indicators

TopWorx™ 7LY is a dual proximity sensor featuring bright dual LED domes - visible from long distances. It is easily adaptable to NPN or PNP circuits and it can be wired as a Normally Open (Form A), Normally Closed (Form B) or Normally Open/Normally Closed (Form C). The 7LY offers higher durability to physically abusive environments and has a pressure rating (sensing face) of up to 140 bar (2000 psi).

Specifications

Nominal Sensing Distance2.5 mm (0.100 in)
Hysteresis0.2 mm (0.008 in)
Actuating elementFerrous metal or magnet (N)
Maximum Operating AC Voltage120 VAC
Maximum Load Current250mA
Minimum Load Current10mA
Approximate Voltage drop5V
Operating DC Voltage10-30 VDC
Max initial contact resistance0.5 Ohm
Max switching frequency10 Hz
Operating temp range-40 °C to 60 °C (-40 °F to 140 °F)
Enclosure material316L stainless steel
Ingression protectionIP66/IP68
Vibration resistance10 - 55 Hz, 1.5-mm double amplitude
Pressure Rating (Sensing Face)140 Bar (2000 PSI)
