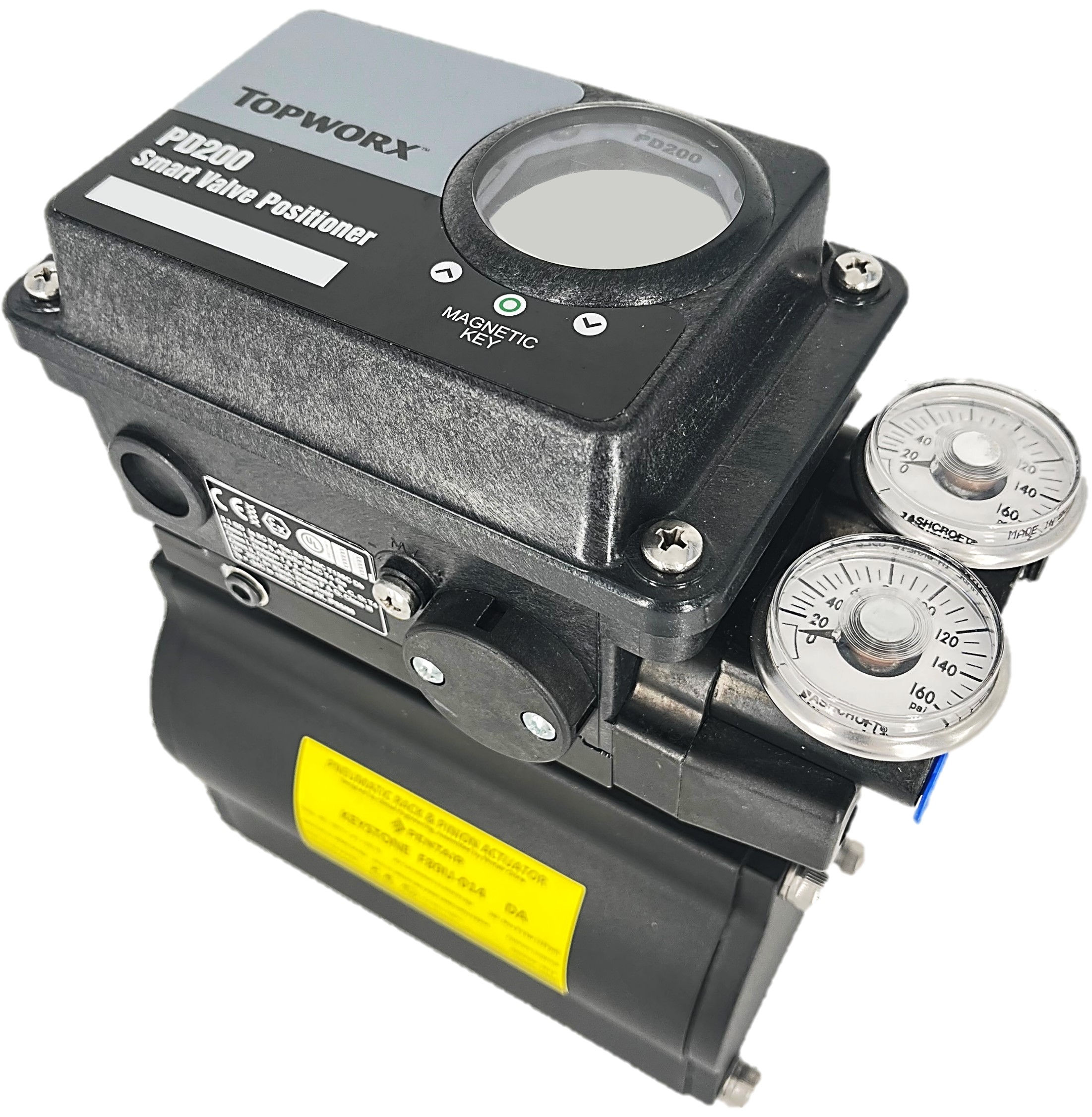

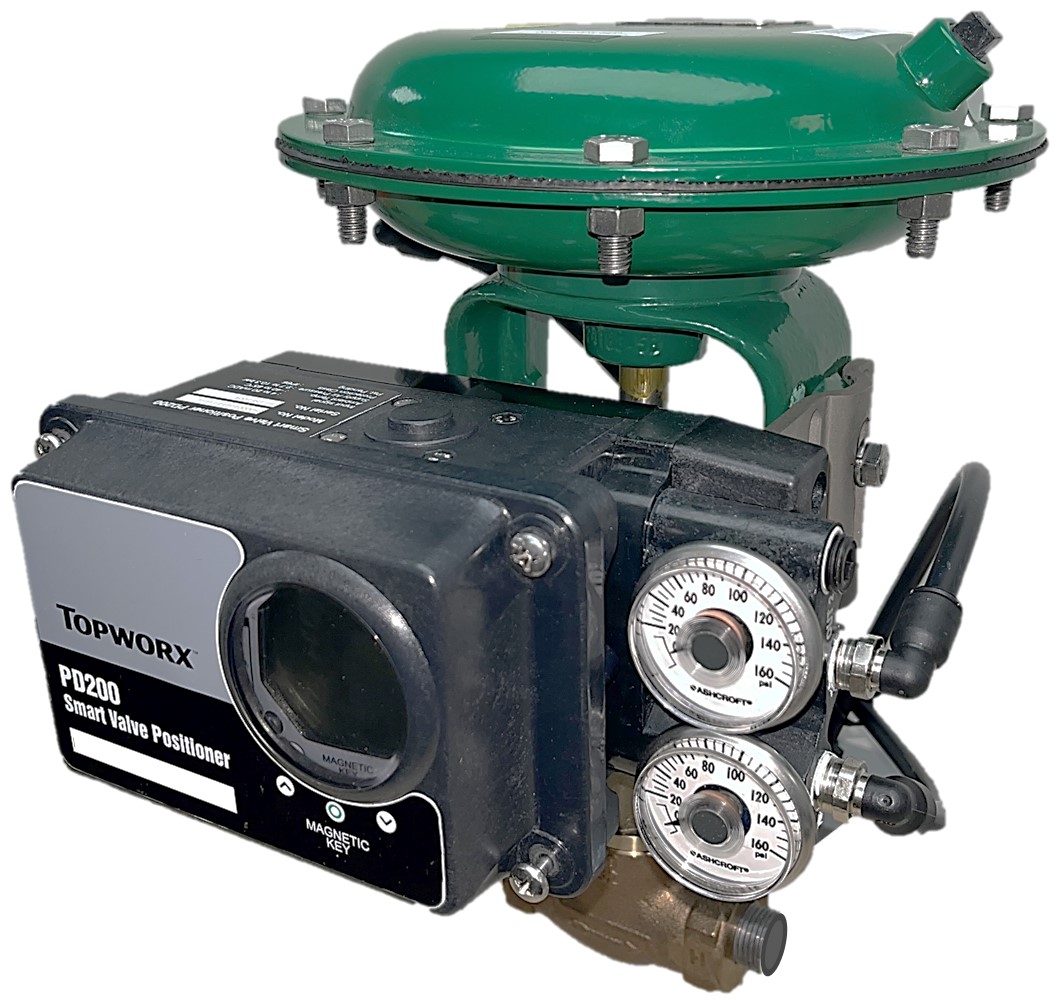

Specifications
| Certifications - cULus | PD100 cULus listed General Purpose and Non-Incendive, ATEX/IECEx, CE<br>PD200 cULus listed General Purpose and Intrinsically Safe, ATEX/IECEx, CE |
| Environmental Ratings | IP66, Type 4X |
| Communications Protocol | (PD100) 4-20 mA (nominal)<br>(PD200) HART Capable |
| Configurable Alarms | (PD100) No<br>(PD200) Yes |
| Minimum Voltage | (PD100) 8.5 VDC for analog control<br>(PD200) 8.5 VDC for analog control, 9.0 VDC for HART communication |
| Overvoltage | 36 VDC |
| Voltage Drop | 12.2 VDC @ 4mA/24 VDC |
| Input Impedance | 470 ohms @ 20mA/24 VDC |
| Output Impedance (Feedback) | 800 ohms @ 20mA/24 VDC |
| Actuator Signal | 0% to 100% of the supply pressure |
| Response Time | ≥ 0.3% of Full Scale |
| Stroke Range | Linear: 12 to 200 mm<br>Rotary: 0 to 120° |
| Hysteresis | 1.5% of Full Scale |
| Repeatability | 1.5% of Full Scale |
| Linearity | 0.8% of Full Scale |
| Temperature Range | -40°C to +65°C (-40°F to +149°F) |
| Electrical Connection | 1/2" NPT female |
| Pneumatic Connection | 1/4" NPT female (Inlet & Outlet) |
| Air-Supply Pressure | 2.8 to 8 bar (40 to 116 psi) |
| Output Air Consumption | 8.81 l/m | 0.5N m³/h | 0.31 scfm @ 60 psi | 4 bar | 0.6 cv |
| Display Type | (PD100) Liquid Crystal Display (LCD), 4 numeric digits<br>(PD200) Liquid Crystal Display (LCD), 4.5 numeric digits and 6 alphanumeric digits |
| Local Controls | (PD100) 3 mechanical buttons | Up, Down, & Enter<br>(PD200) 3 mechanical & 3 magnetic buttons | Up, Down, & Enter (Includes magnetic key for operation without removing cover) |
| Actuator Action | Rotary & Linear, Single & Double, Direct (DA) & Reverse (RA) |
